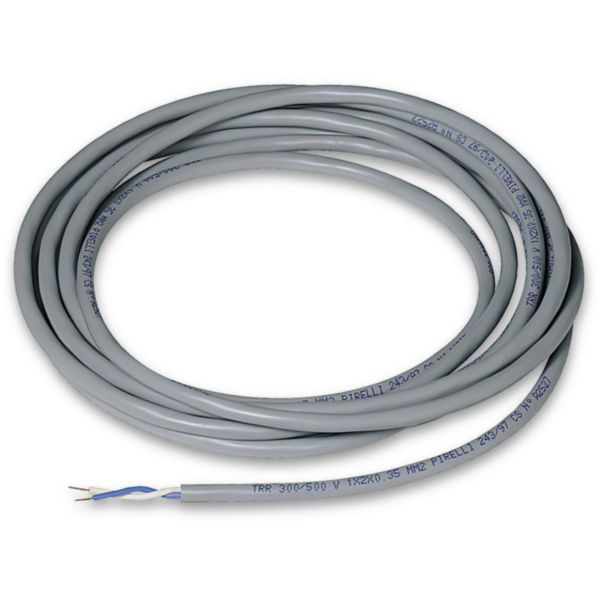

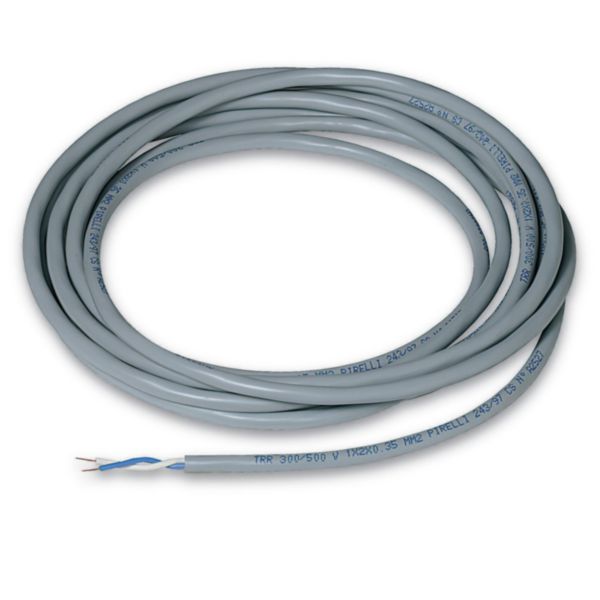

Name: Sheathed pair made up of 2 flexible wires with unshielded plaited sheath - reel length 1000 metres
Brand: BTicino
SKU: BT-L4669KM1
Availability: InStock

Description

Connection cables - sheathed pair made up of 2 flexible wires with unshielded plaited sheath - insulation 300/500 V - reel lenght 1000 m

Product characteristics

for systems underground cable sections

Technical Characteristics

Conductor material Copper

Nominal cross section conductor 0.35 mm²

Diameter conductor 1.95 mm

Conductor category Class 2 = stranded

Number of cores 12

Material core insulation Polyvinyl chloride (PVC)

Core identification Colour

With protective conductor No

Max. permitted conductor temperature 70 °C

Screen No

Drain wire No

Protective barrier None

Armouring/reinforcement None

Material outer sheath Polyvinyl chloride (PVC)

Colour outer sheath Grey

Low smoke according to EN IEC 61034-2 No

Outer diameter approximate 5.6 mm

Permitted cable outer temperature during assembling/handling (Min-Max) -15-70 °C

Permitted cable outer temperature after assembling without vibration (Min-Max) -15-70 °C

Nominal voltage U0 300 V

Nominal voltage U 500 V

Sheathed pair made up of 2 flexible wires with unshielded plaited sheath - reel length 1000 metres
