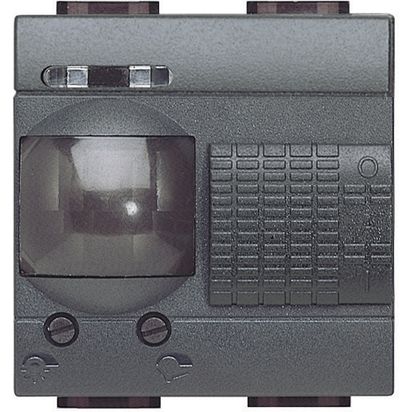

Switch IR passive 500W - 110/127 Vac - selector O-A-I
BT-L4432/127
|
8012199486512
Technical Characteristics
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
Yes
Animal zone
No
Creep-under protection
No
Background monitoring
No
Networkable
No
Optimum mounting height
1.2 m
Staircase light controller
No
Bridging switch
No
Max. reach sideways
6 m
Max. reach frontally
6 m
Diameter reach on floor
3 m
Suitable for wireless transmission
No
Remote operation
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Surface protection
Other
Surface finishing
Matt
Antimicrobial treatment
No
Colour
Anthracite
Transparent
No
Degree of protection (IP)
IP20
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Nominal voltage (Min-Max)
127-127 V
Min. switch-on time
30 s
Detection angle horizontal (Min-Max)
105-105 °
Max. switching power
760 W
Substation input
No
With alarm function
No
With acoustic sensor
No
Ambient temperature (Min-Max)
5-40 °C
With connection cable
No
Connection cable length
0 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Auto switch
Yes
