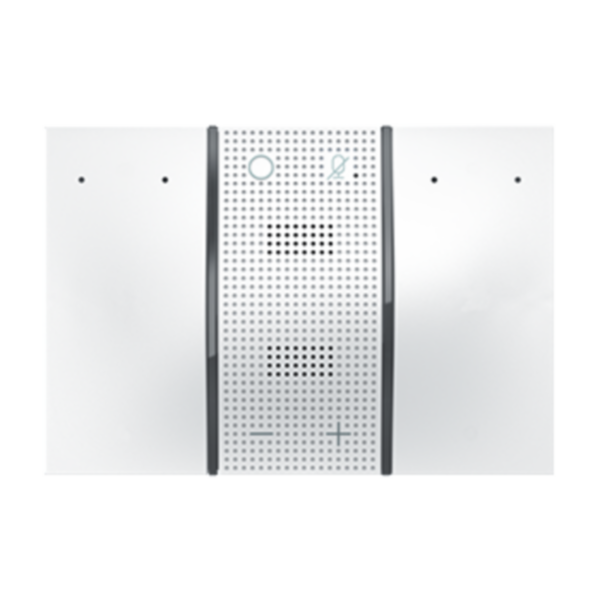

Voice control with Amazon Alexa built-in and digital controls for Lighting - 3 modules - White.
BT-KW8013
|
8005543650806
Description
Amazon Alexa built-in voice control, with 2 additional touch controls for lights. 27 V d.c. power supply from BUS through connection module or additional power supply unit - 3 modules
Product characteristics
- alexa built-in
- User interface in line with alexa devices
- aesthetically integrated with LIVING NOW range
- it includes 2 light controls
- thin design
Products benefits
Installation
- Easy to clip and move
Usage
- Alexa is by your side, on the wall of each room
Advantages
- Easy to configure and manage using the app
- New ergonomy for a multisensorial experience
- Disruptive desing with integration of Alexa
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Mounting method
Flush-mounted
With anti-theft/dismantling protection
No
With bus connection
Yes
Number of actuation points
2
Number of buttons
2
With LED indication
Yes
With label area
No
With display
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With room temperature controller
No
With IR sensor
No
Degree of protection (IP)
IP20
Min. depth of built-in installation box
40 mm
Width
124.5 mm
Height
86 mm
Depth
10 mm
Built-in depth
2 mm
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
-20-70 °C
Frequency (Min-Max)
0-0 Hz
Standby consumption
130 mA
Terminal marking indication
Yes
Antimicrobial treatment
No
Terminals capacity (Min-Max)
1-1 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Addressable
Yes
Contains Batteries
No
Connected object
Yes
Operating method
SCS
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Product use function
Control & command systems
Software Update Duration (years)
3
Documentation
3 documents
Instruction Use
LE11578AB | PDF (2.4 MB)
Technical Guide
RA00168AA_EN | PDF (11.1 MB) | EN
Technical Sheet
ST-00002621-EN | PDF (178 KB) | EN
1 documents
Agreement
LGPVXPOSFG | FILE (164 KB) | EN · IT
4 documents
Brochure
BRO-LNOW-2M | PDF (15.9 MB) | EN
Brochure
BRO-LNOW-3M | PDF (16.3 MB) | EN
Catalog Commercial Page
CAT-LNOW-2M | PDF (23.1 MB) | EN
Catalog Commercial Page
CAT-LNOW-3M | PDF (22.5 MB) | EN
1 documents
Firmware
HOMEVOICE_010118 | FWZ (168.5 MB)
