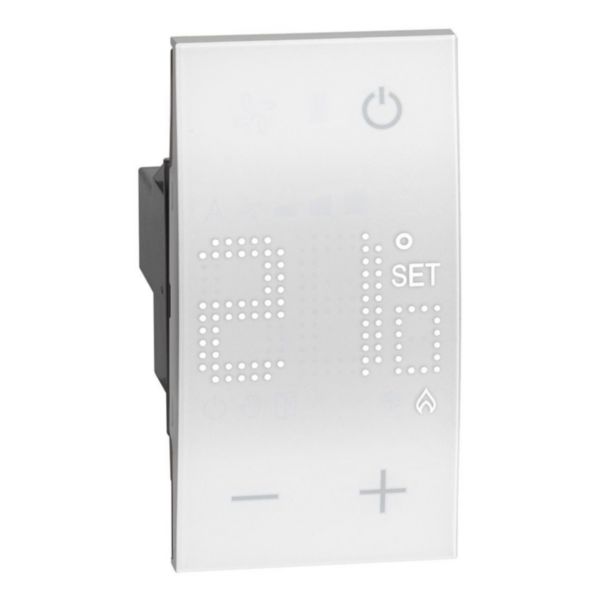

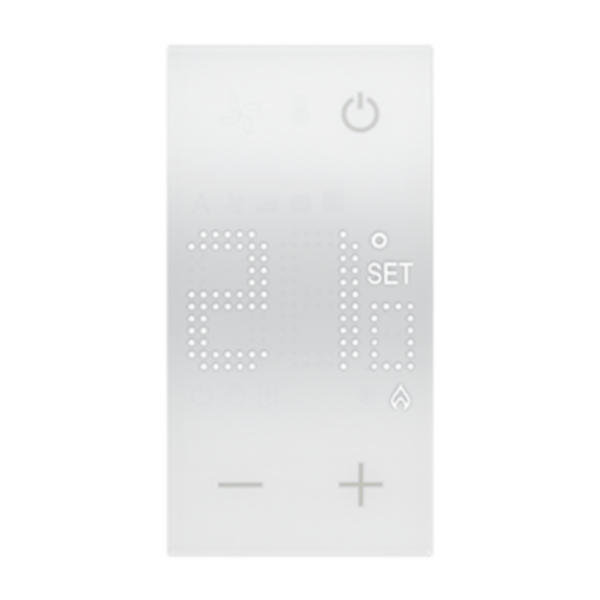

Name: Electronic room thermostat
Brand: BTicino
SKU: BT-KW4441
Availability: InStock

Description

The Living Now room thermostat is a built-in electronic device for heating / cooling or floor heating systems with backlit display, 2 modules, white

Product characteristics

The controls are placed directly on the LED backlit display and allow a simple and intuitive control of the device
Already equipped with a white cover / display
Screw and plate terminals
Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
relay output with 1 contact in potential-free deviation 5 (2) A. - supply 230 Va.c. - 2 modules, White

Recommendations / Restrictions

It is mounted on the Cover plate at the end of the construction site to keep the work in a workmanlike manner.For internal use.

Products benefits

Installation

Easy installation and temperature setting. Cover sold integrated in the same packaging of the device.

Usage

The icons intuitively facilitate the use, while the brightness sensor adjusts the light of the screen to facilitate reading or reduce the noise at night.

Advantages

Perfectly integrated into the aesthetics of Living Now, discreet and functional
Simple and intuitive use thanks to a LED backlit display
Simple installation and easy configuration

Technical Characteristics

Model On/Off

Type of power supply 230 V AC

Connection 3-/4-wire

With receiver No

Measuring range (Min-Max) 0-40 °C

External sensor No

Thermal feedback None

Control characteristic P

Suitable for heating Yes

Number of heater outputs 1

Suitable for cooling Yes

Number of cooler outputs 1

Differential value (Min-Max) 0.1-0.1 K

Adjustable differential Yes

Temperature readable Yes

With sound indicator No

Sensor/feeler type Other

Mounting method Flush-mounted

Number of modules (module system) 2

With display Yes

Operation Button

With tap water circuit No

Contact type Change-over contact (NO/NC)

Max. contact voltage 240 V

Max. contact load 5 A

Degree of protection (IP) IP20

Degree of protection (NEMA) Other

Explosion-proof No

Colour White

RAL-number 9003

Height 86 mm

Width 45 mm

Depth 50 mm

Class of the temperature control I

Compatible with Apple HomeKit No

Compatible with Google Assistant No

Compatible with Amazon Alexa No

IFTTT support available No

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Voltage type AC

Frequency (Min-Max) 50-60 Hz

Contains Batteries and/or Accumulator No

Electronic room thermostat
