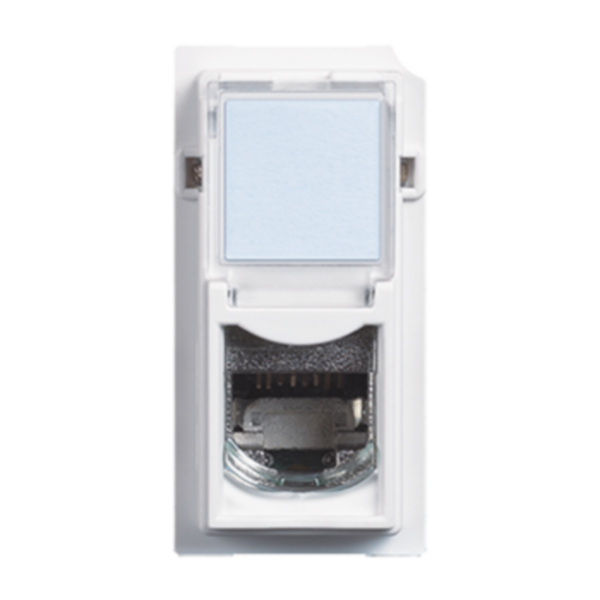

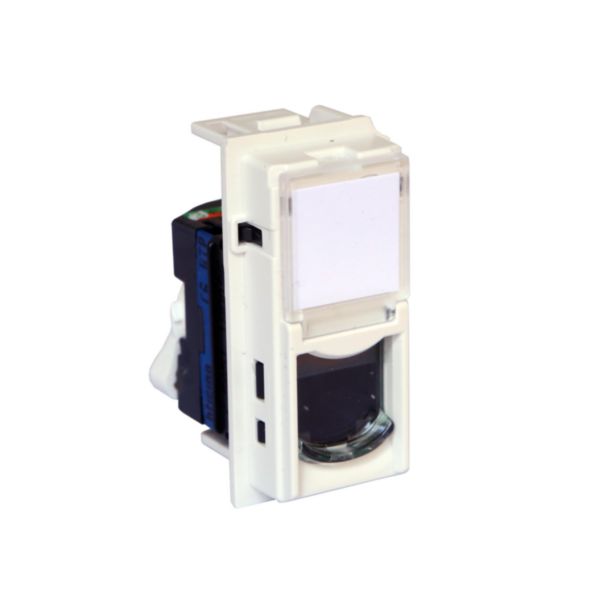

Name: RJ45 connectors 6 UTP category, Tolless IDC
Brand: BTicino
SKU: BT-KW4279C6
Availability: InStock

Description

The RJ45 socket connects a device (PC, printer) to the local network (internet box, switch). The wired distribution guarantees a high speed, secured and reliable connection to the internet.

Product characteristics

RJ45 Cat 5e and Cat 6: Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
Support high capacity PoE applications. Power over Ethernet pass electric power along with data on twisted pair Ethernet cabling.
TIA 568A/B color coded contacts for standard wiring
Equipped with a transparent protective dust cover protecting the connector.

Recommendations / Restrictions

Compliant with ISO/IEC 11801 edition 3.0 (2017) standards. Mimimum 40mm depth electrical installation box needed. Take AWG22 up to AWG26 single-core cables. Take AWG26 multicore cables. Indoor use only.

Products benefits

Installation

Shallow depth mechanism facilitating mounting into the flush-mounted box. Socket equipped with a tool less quick connector for intuitive and reliable wiring.

Usage

Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.

Advantages

Toolless connector with fast connection thanks to integrated crimping.
Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.

Technical Characteristics

Surface mounting No

Flush-mounted installation Yes

Duct installation No

Floor box/subfloor mounted No

Type of fastening Engage (snap)

Assembly arrangement Basic element with central cover plate

Type of connector RJ45 8(8)

With buses/couplings Yes

Suitable for number of connectors 1

Category 6

Colour White

RAL-number 9003

Connection type Insulation displacement connector

Shielded buses No

Shielded housing No

Separate earthing connection No

With label space Yes

Compatible with third-party covers No

Separate strain relief No

Mounting method shielding connection None

Outlet direction Straight

With dust cover Yes

With terminal resistor No

Degree of protection (IP) IP20

Mechanical coding No

Colour coding Yes

Device width 22 mm

Device height 45 mm

Device depth 41 mm

Number of modules (module system) 1

Built-in depth 31 mm

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Terminal marking indication No

Halogen free Yes

Antimicrobial treatment No

Mounting method Flush-mounted

Tube diameter for wall mounted product (Min-Max) 0-0 mm

Maximum Input cable diameter 9 mm

Entry membrane gland type Not applicable

Vertical fixing center distance (Min-Max) 0-0 mm

Horizontal fixing center distance (Min-Max) 0-0 mm

Cable support Not applicable
