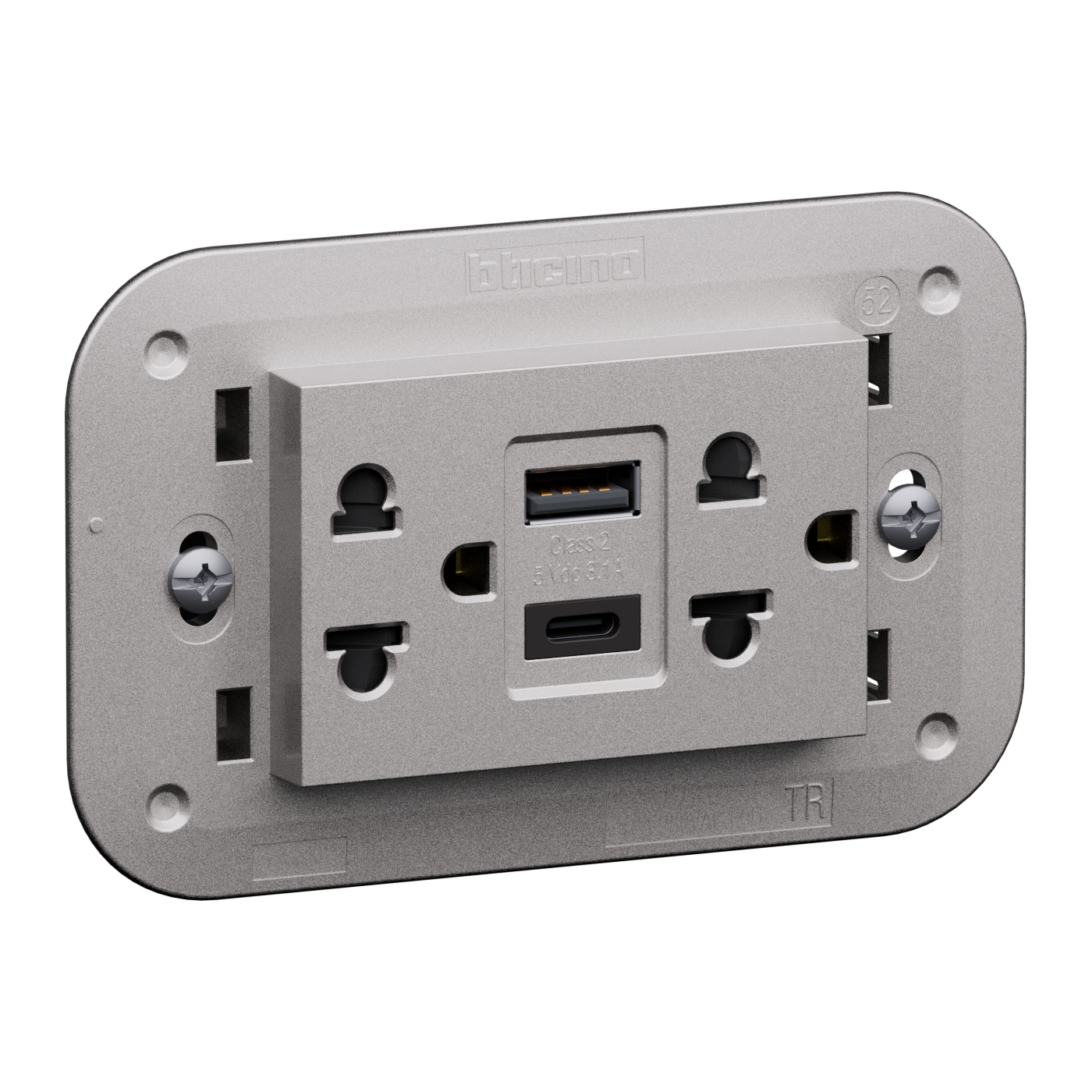

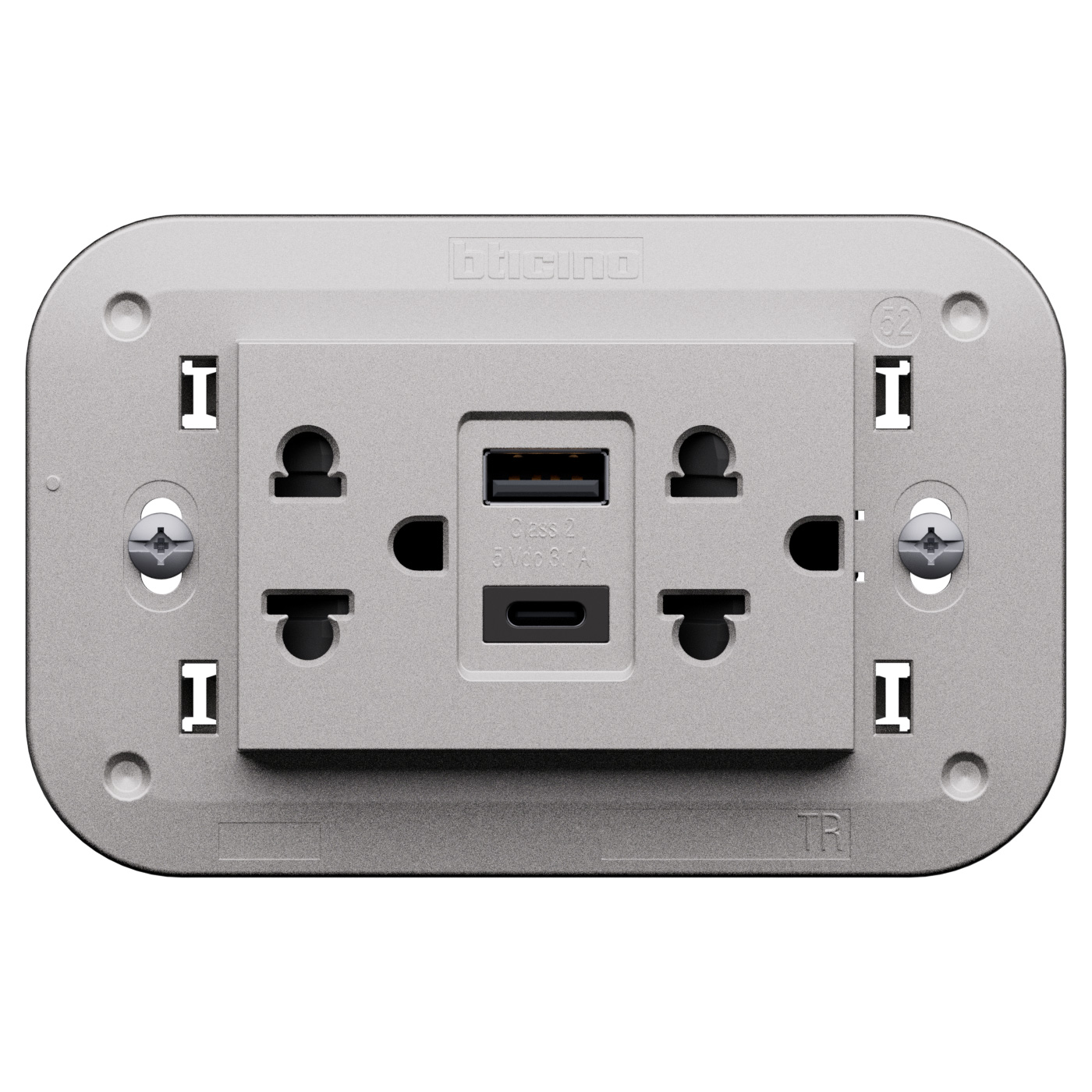

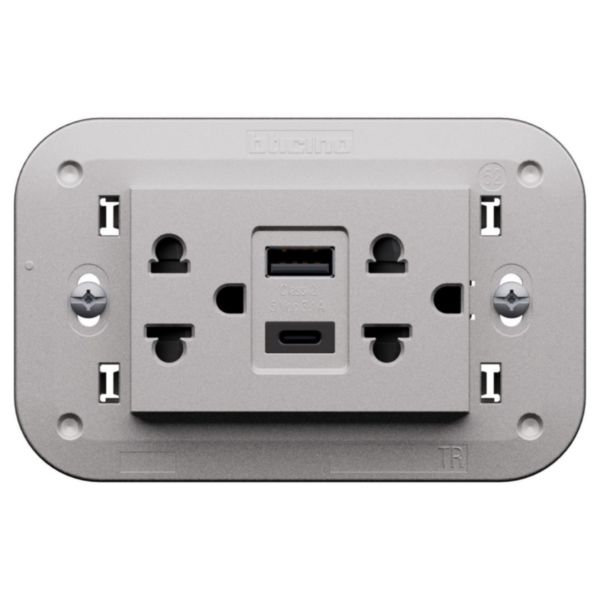

Euro american standard 2 P+E 16 A - 127/250 Va.c.
BT-KS4185AC
Description
This function allows to connect an electrical or electronic device to the power outlet and simultaneously to charge an electronic terminal (mobile,tablet,camera) on the USB output. Equipped with 1 USB socket type A and one USB socket type C
Product characteristics
- EU-US Standard duplex socket 2P + E 16A, 250 V + 2 USB (1 Type A + 1 type C) charger with 5 Vd.c. voltage for fast charging of single devices up to 3,000 mA or simultaneous charging of two devices up to 1,500 mA
- To be completed with KW52 cover
- Screw terminals
- Living Now sockets are provided with contact protection ensuring greater safety at home: these protections shield from accidental electrical contacts in the absence of a plug.
- Duplex EU-US socket 2P+T 16A, 250 V + 2 USB (1 Type A + 1 Type C) 3,1 A - 5V - 15,5W
Recommendations / Restrictions
- To be equipped with a finishing cover plate
Products benefits
Installation
- Monoblock complete product ready-to-install
Usage
- Two in One product : Power outlet, fitted with safety shutters to maximise child protection + fast charging of USB devices
Advantages
- The pre-cabling of this socket combines ease of installation and time savings during installation: no need to wire all the sockets; a single wiring is sufficient.
- Very compact product which integrates 4 functions in 3 modules
Technical Characteristics
Model
Multi-standard socket
Concurrently switching neutral conductor
No
Protective contact
Flat
Number of active contacts (round)
6
Number of active contacts (flat)
4
Number of active contacts (square)
0
Mounting direction
Horizontal
Assembly arrangement
Other
With complemantary luminous signal
No
Number of ports USB-A
1
Number of ports USB-C
1
Number of socket outlets
2
Socket outlets phase-separated
No
Number of modules (module system)
3
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
Grey
RAL-number (similar)
7005
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Antimicrobial treatment
No
With loop through function
Yes
Number of loop throughs
1
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency (Min-Max)
50-60 Hz
Degree of protection (IP), connected plug
IP20
Rated fault current
16 mA
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
67 mm
Device depth
34 mm
Min. depth of built-in installation box
34 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Built-in depth
24 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
Terminal marking indication
No
Prewired
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Cable support
Screw cable clamp
Contains Batteries and/or Accumulator
No
Connected object
No
Application store for download
Not applicable
Programming way
Not applicable
With voice command
No
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
No
Product use function
Energy distribution
