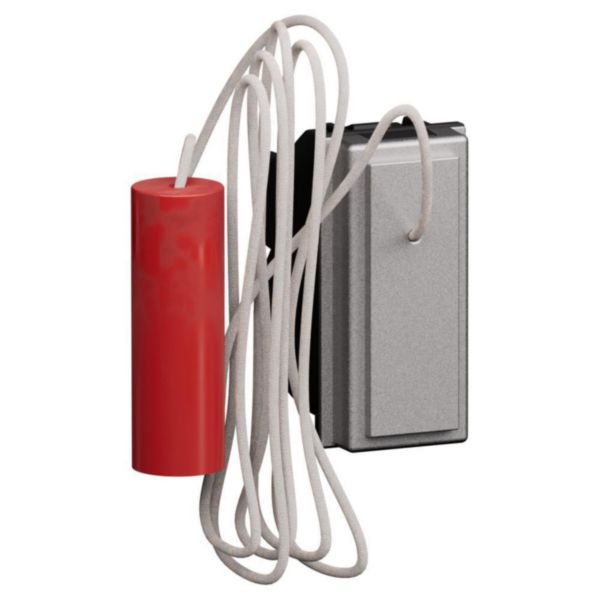

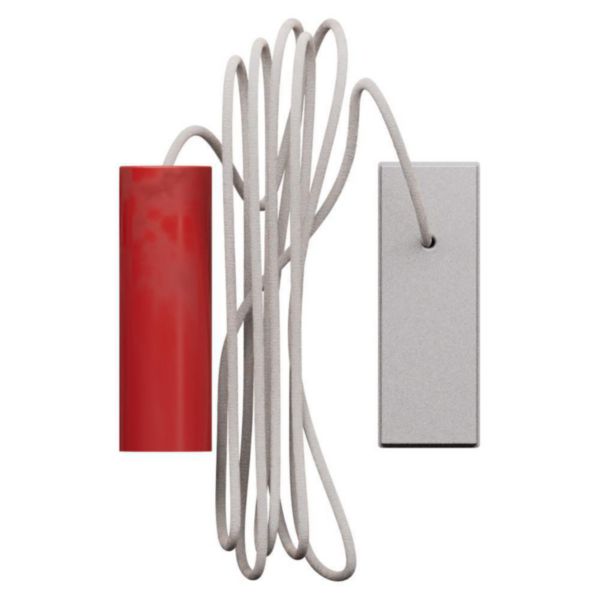

15 A 250 VA pull-cord pushbutton 1 P (NO) and 1 P (NC)
BT-KS4033
|
8005543782835
Description
cord push button 10 A 250 Va.c. 1 P (NO) and 1 P (NC) - provided with rope and red knob - 1 module, steel
Product characteristics
- Fully Flat mechanism to follow the aesthetics of the L.Now light point
- The device must be completed with a KW02 cover
- Screw and plate terminals
- Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
- 10 A, 250 Va.c. 1 P (NO) and 1P (NC)1 module, color White
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
- Pull the cord to activate the command
Advantages
- It is coordinated with the L.NOW aesthetic
- To cover the various installation modes, this button is both NO and NC depending on how it is wired.
Technical Characteristics
Assembly arrangement
Basic element with adaptor plate
Model
Single push button
Method of operation
Pull cord
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
No
Number of rockers
0
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
No
With light source
No
With complemantary luminous signal
No
Monitoring contact
No
Connection type
Screwed terminal
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7005
Transparent
No
Label space/information surface
No
Imprint
None
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK00
Device width
22 mm
Device height
45 mm
Device depth
35 mm
Min. depth of built-in installation box
42 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
32 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
