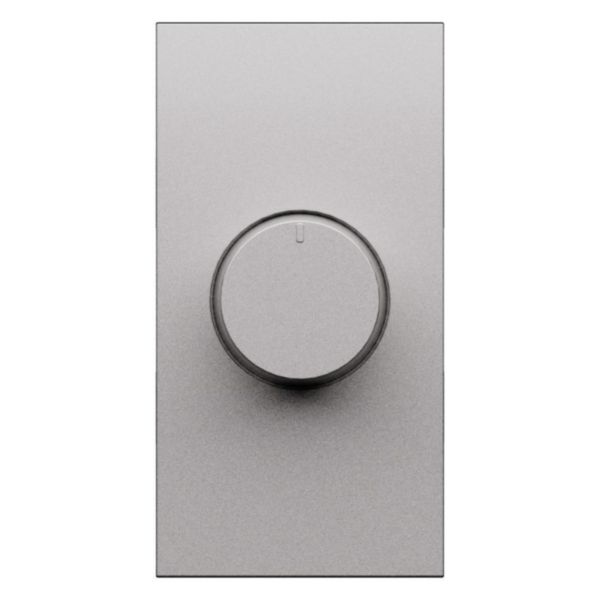

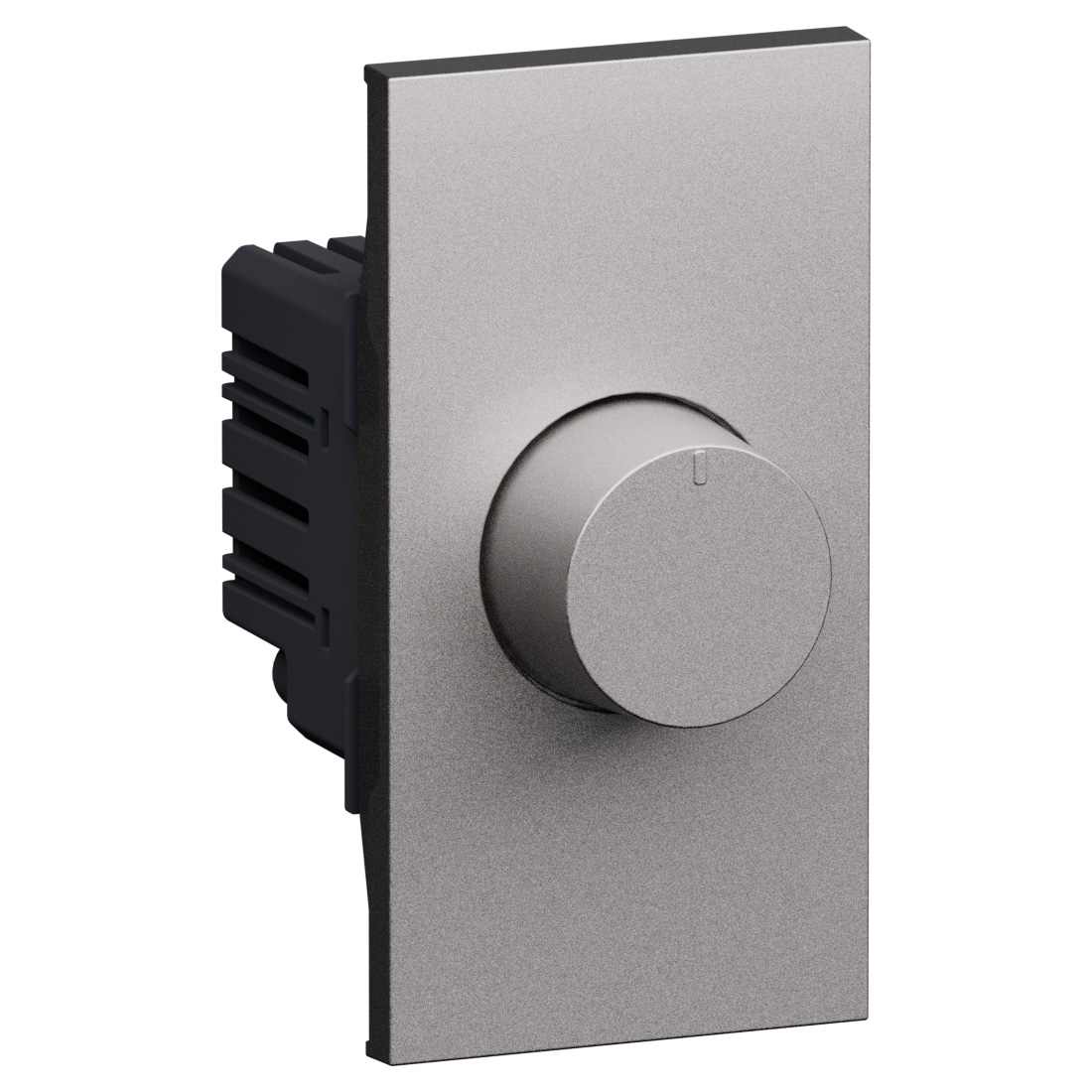

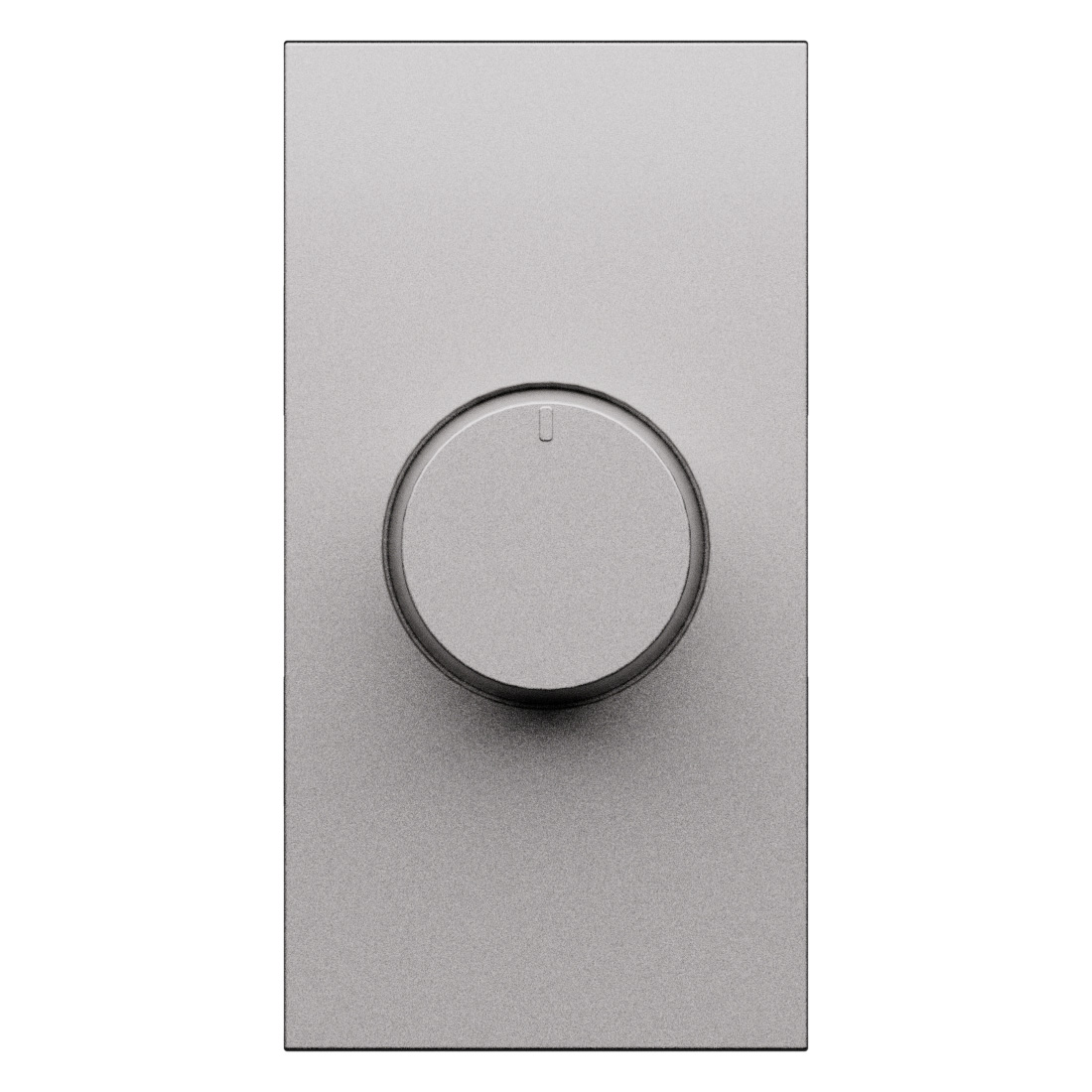

Fan controller 240VA 100W 50Hz
BT-KS4017
|
8005543782798
Description
The Living Now Fan control permits you to reduce or increase the intensity of a ventilation blade - 2 module
Product characteristics
- 6 possible settings: off and five degrees of speed
- The device is already supplied with its corresponding white 2-module cover
- Screw and plate terminals
- Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
- Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
- The ideal solution to adapt the speed of ventilation
Advantages
- The ideal solution to adapt the speed of ventilation
- It is coordinated with the L.NOW aesthetic
Technical Characteristics
Assembly arrangement
Control element
Method of operation
Turn button
Wiring system
Other
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7005
Transparent
No
Suitable for degree of protection (IP)
IP20
Rated current
10 A
Nominal voltage
240 V
Type of fastening
Other
Min. depth of built-in installation box
44 mm
Width
45 mm
Height
86 mm
Depth
58.5 mm
Built-in depth
34 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Terminal marking indication
No
Connection type
Screwed terminal
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
With socket outlet
No
Label space/information surface
No
