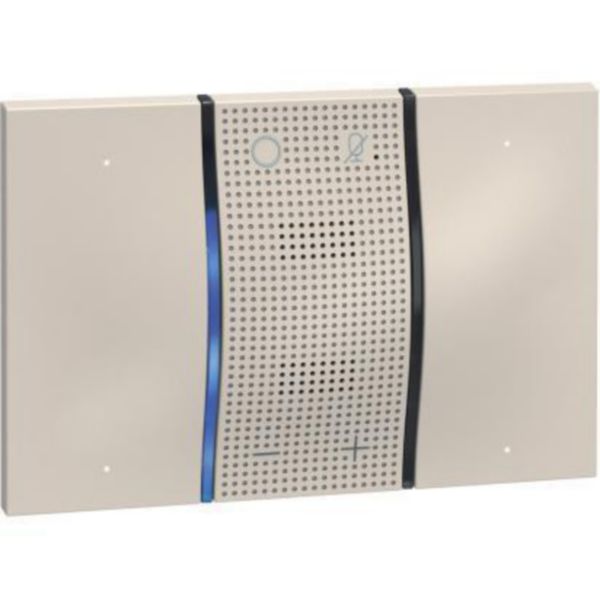

Voice control with Amazon Alexa built-in and digital controls for Lighting - 3 modules - Sand.
BT-KM8013
|
8005543650813
Description
Amazon Alexa built-in voice control, with 2 additional touch controls for lights. 27 V d.c. power supply from BUS through connection module or additional power supply unit - 3 modules
Product characteristics
- alexa built-in
- User interface in line with alexa devices
- aesthetically integrated with LIVING NOW range
- it includes 2 light controls
- thin design
Products benefits
Installation
- Easy to clip and move
Usage
- Alexa is by your side, on the wall of each room
Advantages
- Easy to configure and manage using the app
- New ergonomy for a multisensorial experience
- Disruptive desing with integration of Alexa
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Mounting method
Flush-mounted
With anti-theft/dismantling protection
No
With bus connection
Yes
Number of actuation points
2
Number of buttons
2
With LED indication
Yes
With label area
No
With display
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Beige
RAL-number (similar)
7044
Transparent
No
With room temperature controller
No
With IR sensor
No
Degree of protection (IP)
IP20
Min. depth of built-in installation box
40 mm
Width
124.5 mm
Height
86 mm
Depth
10 mm
Built-in depth
2 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
0-0 Hz
Standby consumption
130 mA
Terminal marking indication
No
Halogen free
Yes
Antimicrobial treatment
No
Terminals capacity (Min-Max)
1-1 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Addressable
Yes
Connected object
Yes
Operating method
SCS
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Product use function
Control & command systems
Software Update Duration (years)
3
Documentation
3 documents
Instruction Use
LE11578AB | PDF (2.4 MB)
Technical Guide
RA00168AA_EN | PDF (11.1 MB) | EN
Technical Sheet
ST-00002621-EN | PDF (178 KB) | EN
1 documents
Agreement
LGPVXPOSFG | FILE (164 KB) | EN · IT
4 documents
Brochure
BRO-LNOW-2M | PDF (15.9 MB) | EN
Brochure
BRO-LNOW-3M | PDF (16.3 MB) | EN
Catalog Commercial Page
CAT-LNOW-2M | PDF (23.1 MB) | EN
Catalog Commercial Page
CAT-LNOW-3M | PDF (22.5 MB) | EN
1 documents
Firmware
HOMEVOICE_010118 | FWZ (168.5 MB)
