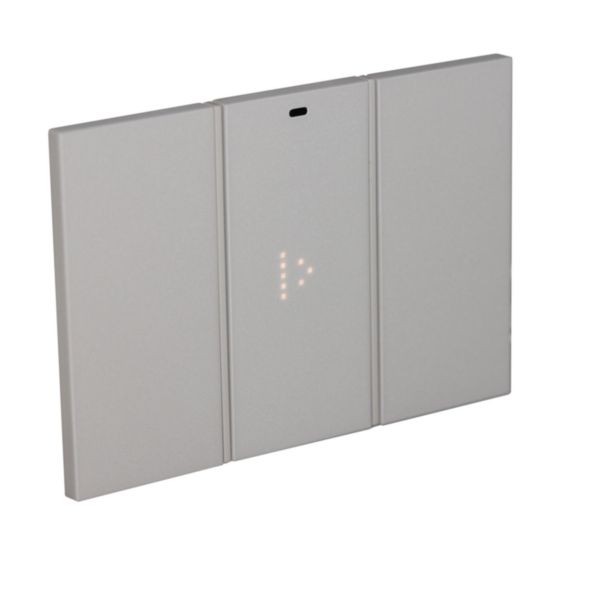

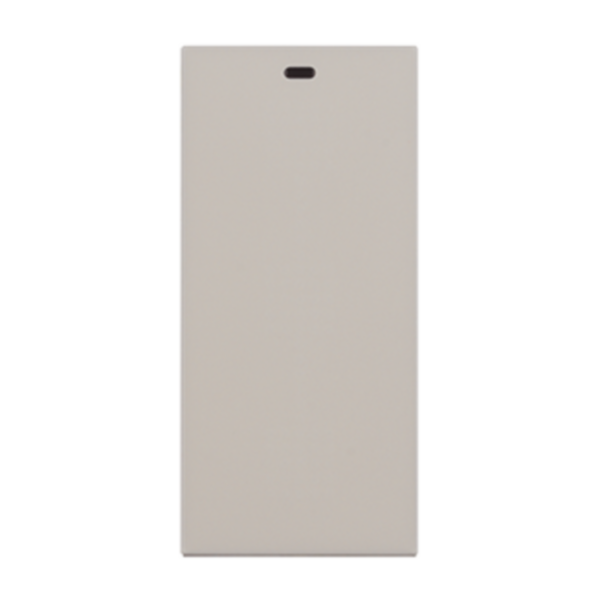

Full control. Touch digital control for the management of one to three functions - 1 module. Sand
BT-KM8011
|
8005543645956
Description
Touch control for the management of one to three home automation functions. It can also be used as group or general control. - 1 module
Product characteristics
- Function management: from 1 to 3 light, dimmer, rolling shutter, nuvo audio, load control, scenario, coloured light functions
- Function flexibility: the same control could be configured for different functions and can be moved to another position even by end user
- Function extension: the same control can manange from 1 to 3 functions
- Customizable led symbols with integrated proximity sensors
- Aesthetically integrated with LIVING NOW range
Products benefits
Installation
- The most smart control easy to clip and move
Usage
- Discrete symbols to identify function position. Possibility to personalize symbols and easily identify related function and to set led brightness level
Advantages
- Easy to configure and manage using the app even by end user
- New ergonomy for a multisensorial experience
- Disruptive desing suitable for different furniture styles
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Mounting method
Flush-mounted
With anti-theft/dismantling protection
No
With bus connection
Yes
Number of actuation points
3
Number of buttons
3
With LED indication
Yes
With label area
No
With display
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Beige
RAL-number (similar)
7044
Transparent
No
With room temperature controller
No
With IR sensor
No
Degree of protection (IP)
IP20
Min. depth of built-in installation box
40 mm
Width
40 mm
Height
86 mm
Depth
6 mm
Built-in depth
2 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
0-0 Hz
Standby consumption
6 mA
Terminal marking indication
No
Halogen free
Yes
Antimicrobial treatment
No
Terminals capacity (Min-Max)
1-1 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Addressable
Yes
Connected object
No
Operating method
SCS
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Product use function
Shutter management
Documentation
1 documents
Technical Sheet
ST-00000784-EN | PDF (191 KB) | EN
4 documents
Brochure
BRO-LNOW-2M | PDF (15.9 MB) | EN
Brochure
BRO-LNOW-3M | PDF (16.3 MB) | EN
Catalog Commercial Page
CAT-LNOW-2M | PDF (23.1 MB) | EN
Catalog Commercial Page
CAT-LNOW-3M | PDF (22.5 MB) | EN
