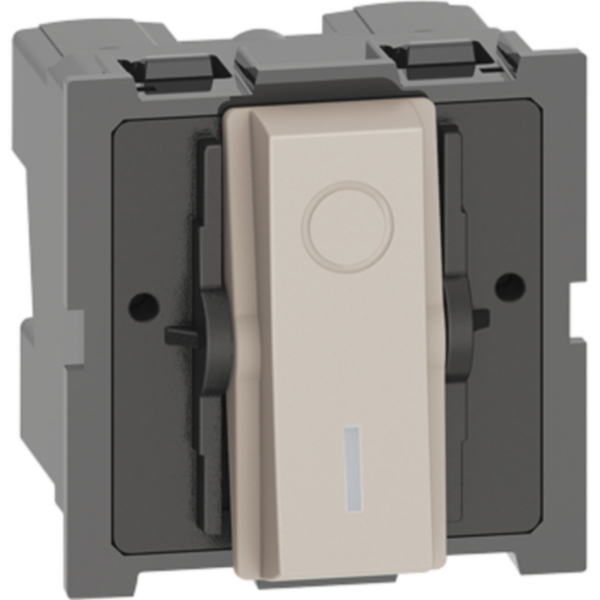

Indian standard two-pole switches, 2P 32 A, 250 VA switch
BT-KM4302V32
|
8005543676905
Description
Switch 2P 32AX, illuminated, 2 modules, sand
Product characteristics
- Rocker mechanism to indicate the load status
- The device must be completed with 02M2 type cover
- Screw and plate terminals
- Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
- 32 AX, 250 Va.c. 2P, it is fitted with signaling LED
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
- Rocker ergonomics to ensure the status "1" or the "0" switch-off
Advantages
- It is coordinated with the L.NOW aesthetic
Technical Characteristics
Wiring system
Switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Beige
RAL-number (similar)
1015
Colour of switch operator
Beige
Label space/information surface
No
Imprint/indication
Characters "0-1"
Lighting
Yes
Function lighting
Orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Nominal voltage
250 V
Rated current
32 A
Switching current for fluorescent lamps
32 AX
Monitoring contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
22 mm
Device height
45 mm
Device depth
41 mm
Built-in depth
28 mm
Min. depth of built-in installation box
38 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Compliant with UK Building Regulations Part M
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
Yes
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
