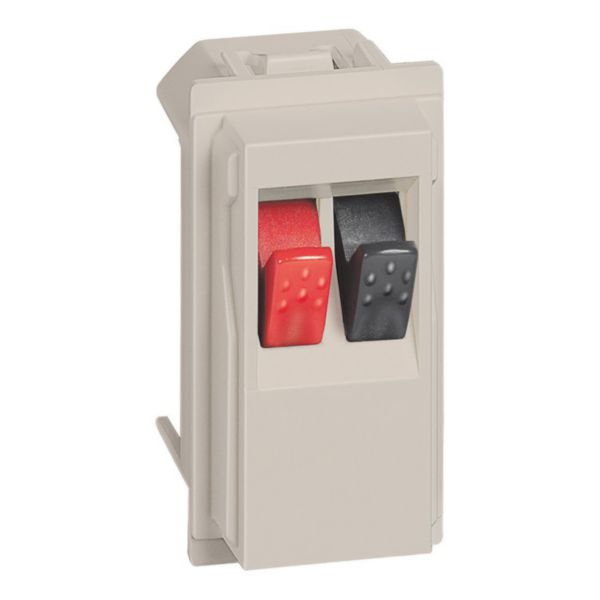

Home cinema speaker connector
BT-KM4294
|
8005543622018
Description
The Living Home Cinema speaker connector allows you to connect your television to a sound system
Product characteristics
- The device must be completed with the type 07 cover
Recommendations / Restrictions
- For internal use only.
Products benefits
Advantages
- It is coordinated with the L.NOW aesthetic
Technical Characteristics
Assembly arrangement
Basic element
Utilization
Loudspeaker connection
Support ring
No
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Contact type
Female
Imprintable label
Without indication field
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Beige
RAL-number (similar)
1015
Transparent
No
Type of fastening
Engage (snap)
Number of modules (module system)
1
With buses/couplings
Yes
Suitable for number of connectors
2
Isolated connections
No
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22 mm
Device height
45 mm
Device depth
33 mm
Min. depth of built-in installation box
30 mm
Built-in depth
20 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
