Living Now BTicino

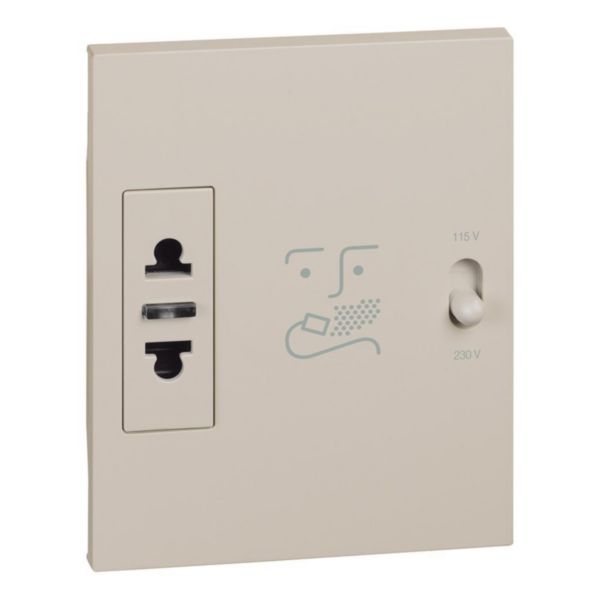

Shaver socket with insulation transformer

BT-KM4177 | 8005543610893
Shaver socket with insulation transformer - input voltage 230 Vac 50/60 Hz - output voltage 115/230 Vac 20 VA. The Cover of the selected colour is supplied in the same box as the shaver socket - 3 modules - sand
Description

This socket allows the use of devices such as an electric shaver or a hairdryer. The transformer supplied allows it to go from 230 to 115V

Product characteristics
  • Socket for the use of razors and hairdryers fitted with Euro 2P American standard plugs
  • The device is already supplied with its corresponding white 3-module cover
  • Screw terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • American Standard Euro 10 A, 3 Modules, White
Recommendations / Restrictions
  • For internal use only.
Products benefits
Installation
  • Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
  • This socket is equipped with a lever that allows the passage from 230V to 115V.
Advantages
  • It is coordinated with the L.NOW aesthetic
Technical Characteristics
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 3
Mounting method Flush-mounted
With hinged lid No
Voltage reversible Yes
Nominal voltage low value 115 V
Nominal voltage high value 230 V
Rated output 20 VA
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Colour Beige
RAL-number (similar) 1015
Transparent No
Device width 67 mm
Device height 86 mm
Device depth 59.5 mm
With built-in installation box No
Min. depth of built-in installation box 50 mm
Built-in depth 46 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Antimicrobial treatment No
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
