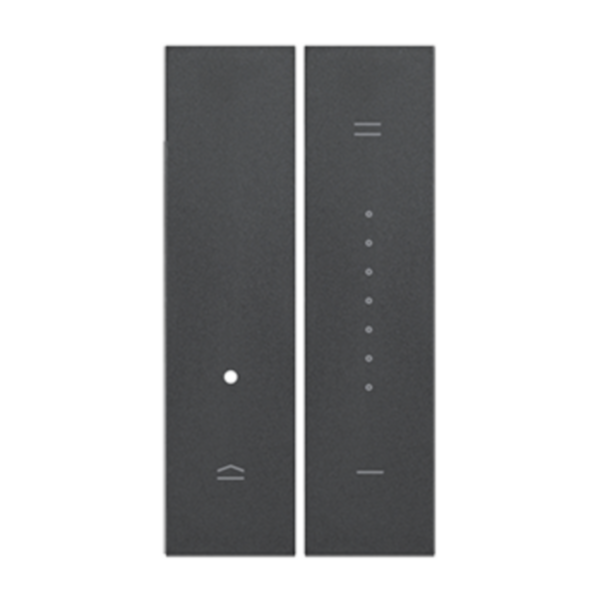

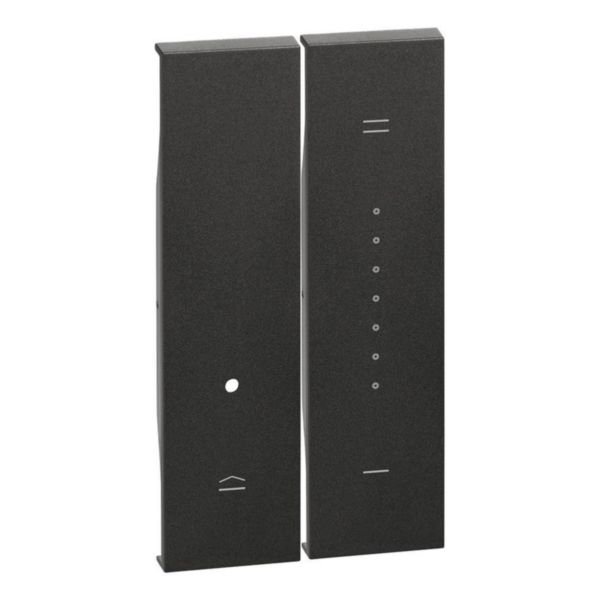

Name: Dimmer Covers consisting of two 1-module pieces. For items K4410, K4411
Brand: BTicino
SKU: BT-KG19
Availability: InStock

Description

Mobile covers for the aesthetic completion of Dimmer K 4411 or K441 , black

Product characteristics

Black technopolymer cover with satin finish and silky feel.
The cover is equipped with a self-centering system (self-centering System) that allows the plate to be attached while maintaining a perfect flatness of the switch
Two cover 1 module, technopolymer, satin black
Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered

Recommendations / Restrictions

It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.

Products benefits

Installation

Installation in a workmanlike manner, without scratches or dirt on the building site, thanks to the separation of installation times between the technical part and the aesthetic part. Installation perfectly aligned with the plate thanks to the self centering system

Usage

Planar Aesthetic and increased ergonomics thanks to the new Full touch concept: the control can be operated by pressing at any point on its surface

Advantages

The covers are equipped with a self-centering system that allows the plate to be attached while maintaining a perfect flatness of the light point
You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device
Easy to clean surface thanks to the planar geometry of the switch and to the surface treatment of the plastics used

Technical Characteristics

Model Two-part rocker

Imprint/indication Various symbols

Scannable symbol/barrier free No

Utilization Dimmer

Suitable for touch sensor connector for bus system No

Type of fastening Engage (snap)

Monitoring window/light outlet No

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Surface protection Untreated

Surface finishing Matt

Antimicrobial treatment No

Colour Black

RAL-number (similar) 7015

With label area No

With exchangeable lens/symbol No

Suitable for degree of protection (IP) IP20

degree of impact strength (IK) IK04

Width 45 mm

Height 86 mm

Depth 9 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Dimmer Covers consisting of two 1-module pieces. For items K4410, K4411
