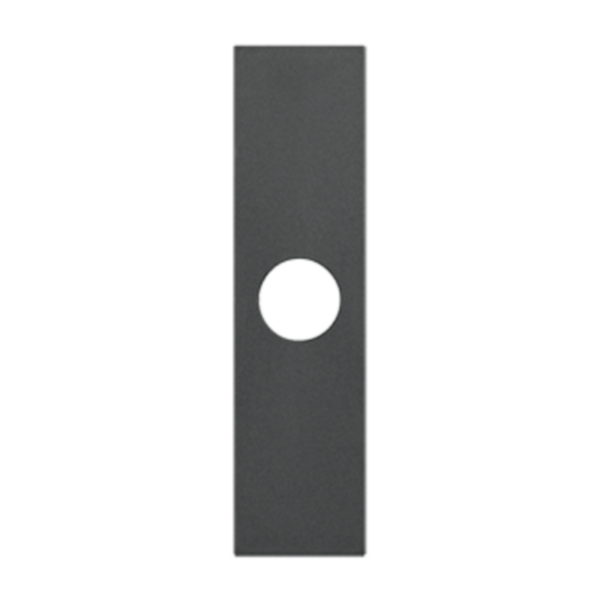

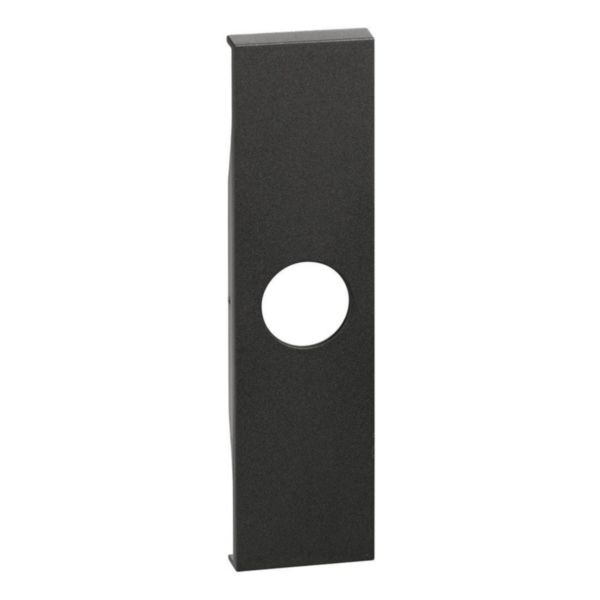

Covers for TV sockets and blanking module with output
BT-KG08
|
8005543611586
Description
Fixed cover for the aesthetic completion of the TV connection devices, 1 module, black.
Product characteristics
- Black technopolymer cover with satin finish and silky feel.
- 1 module, technopolymer, satin black
- Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendations / Restrictions
- It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.
Products benefits
Installation
- Installation in a workmanlike manner, without scratches or dirt on the building site, thanks to the separation of installation times between the technical part and the aesthetic part. Installation perfectly aligned with the plate thanks to the self centering system
Advantages
- It is coordinated with the L.NOW aesthetic
- You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device
Technical Characteristics
Assembly arrangement
Central cover plate
Utilization
Coaxial antenna socket outlet
Support ring
No
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Imprintable label
Without indication field
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
7015
Transparent
No
Type of fastening
Engage (snap)
Number of modules (module system)
1
With buses/couplings
No
Suitable for number of connectors
1
Isolated connections
No
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22 mm
Device height
86 mm
Device depth
7 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
