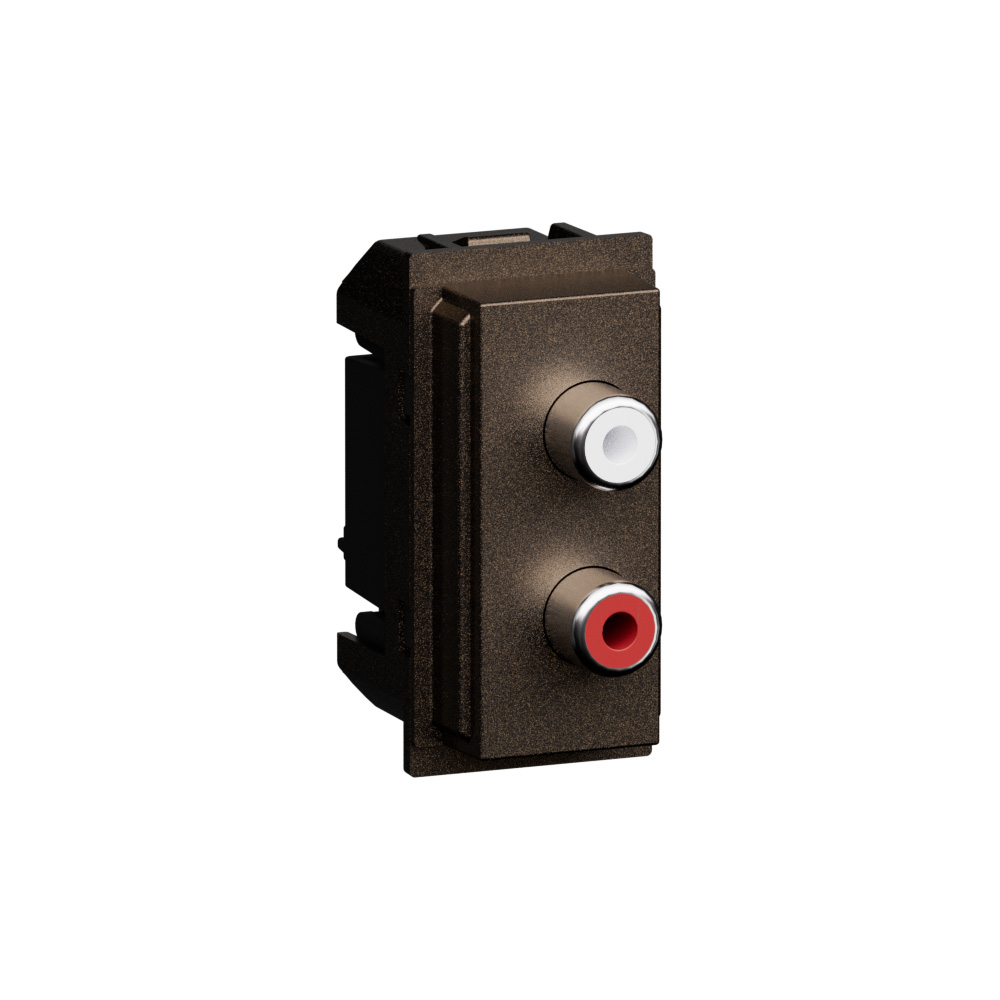

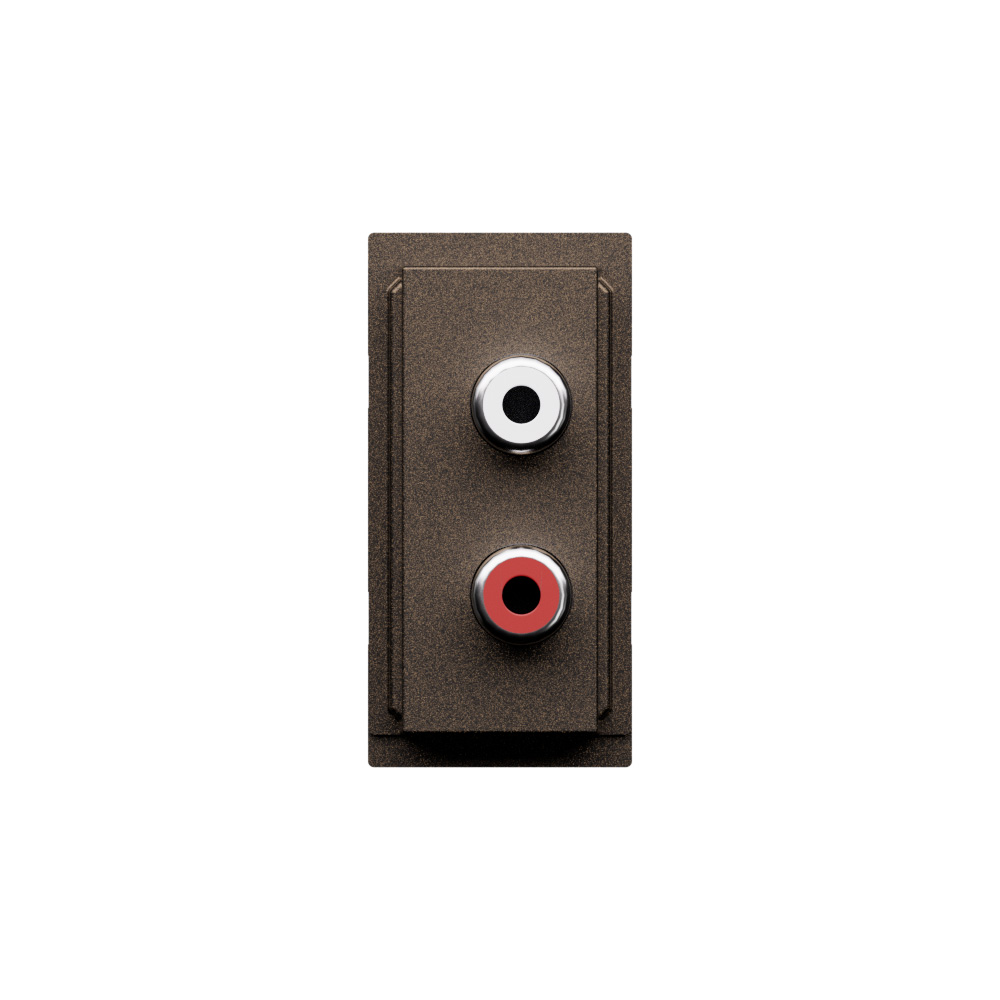

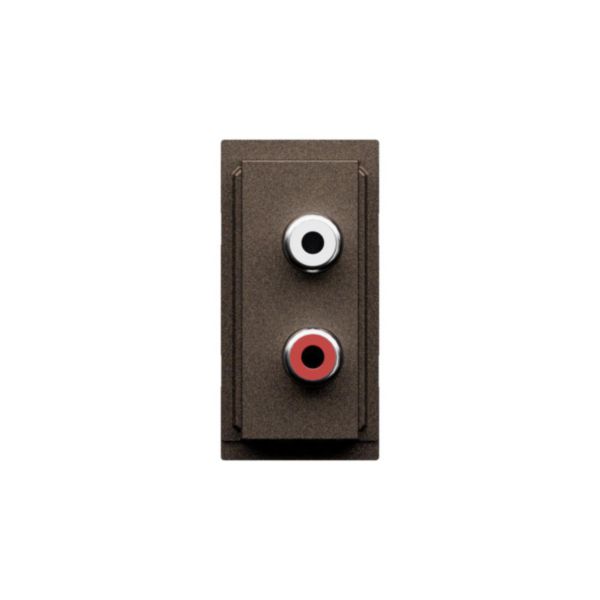

Audio Connector - double RCA module
BT-KB4269R
|
8005543785355
Description
The Living Now Dual RCA connector allows you to connect audio or video device
Product characteristics
- The device must be completed with the type 07 cover
- Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendations / Restrictions
- For internal use only.
Products benefits
Advantages
- It is coordinated with the L.NOW aesthetic
Technical Characteristics
Assembly arrangement
Basic element
Utilization
RCA
Support ring
No
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Contact type
Female
Imprintable label
Without indication field
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
8017
Transparent
No
Type of fastening
Engage (snap)
Number of modules (module system)
1
With buses/couplings
Yes
Suitable for number of connectors
2
Isolated connections
No
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22 mm
Device height
45 mm
Device depth
38 mm
Min. depth of built-in installation box
31.5 mm
Built-in depth
21.5 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
