New Living Now Bticino

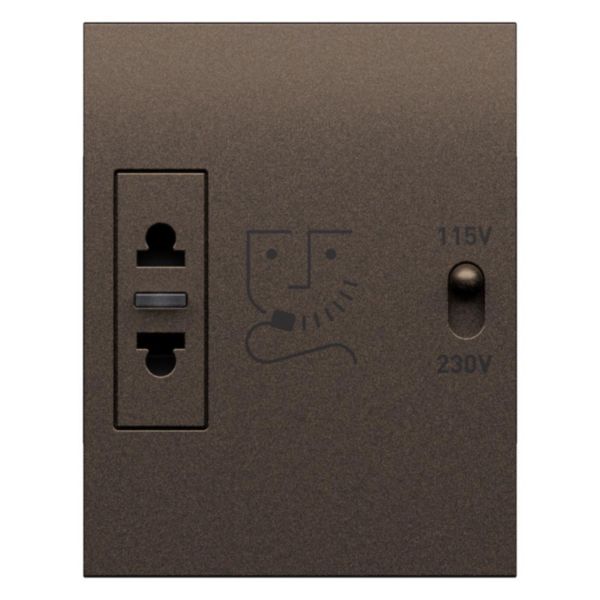

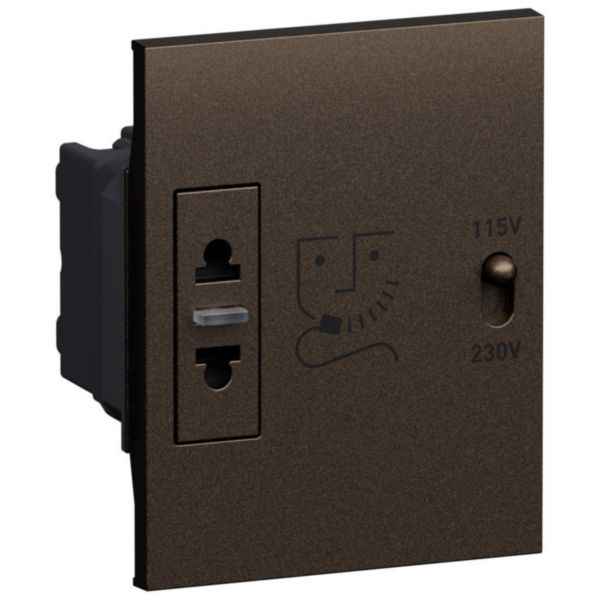

Shaver socket with insulation transformer

BT-KB4177 | 8005543785775
Shaver socket with insulation transformer - input voltage 230 VA 50/60 Hz - output voltage 115/230 VA 20 VAThe cover of the selected colour is supplied in the same box as the shaver socket - 3 modules. Bronze
Description

This socket allows the use of devices such as an electric shaver or a hairdryer. The transformer supplied allows it to go from 230 to 115V

Product characteristics
  • Socket for the use of razors and hairdryers fitted with Euro 2P American standard plugs
  • The device is already supplied with its corresponding white 3-module cover
  • Screw terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • American Standard Euro 10 A, 3 Modules, White
Recommendations / Restrictions
  • For internal use only.
Products benefits
Installation
  • Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
  • This socket is equipped with a lever that allows the passage from 230V to 115V.
Advantages
  • It is coordinated with the L.NOW aesthetic
  • You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device
Technical Characteristics
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 3
Mounting method Flush-mounted
With hinged lid No
Voltage reversible Yes
Nominal voltage low value 115 V
Nominal voltage high value 230 V
Rated output 20 VA
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
RAL-number (similar) 8017
Transparent No
Device width 67 mm
Device height 86 mm
Device depth 59.5 mm
With built-in installation box No
Min. depth of built-in installation box 50 mm
Built-in depth 46 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Antimicrobial treatment No
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
