Living Now BTicino

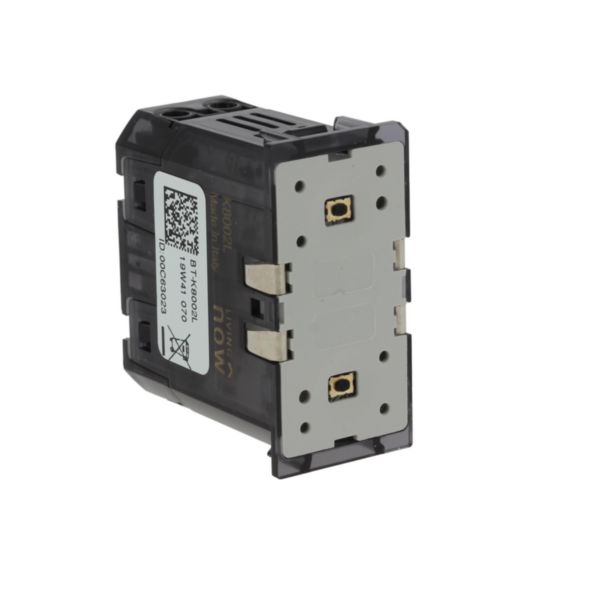

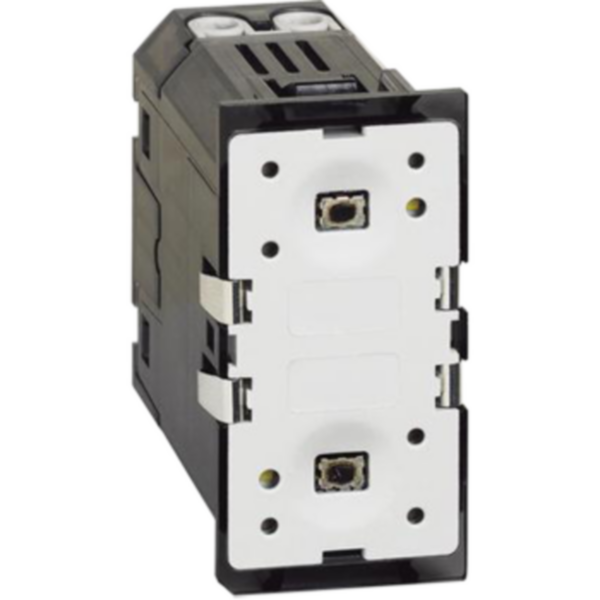

Flush mounted actuator, with 2 independent relays for single or double loads. 1 module.

BT-K8002L | 8005543640159
Flush mounted actuator, with 2 independent relays 16A 250Vac and neutral for "zero crossing" function - for single or double loads. To be combined with digital controls art. K ... 8010 and art. K ... 8011. 1 module.
Description

Actuator with 2 independent relays for single or double 230 V a.c. loads:16A

Product characteristics
  • 1 module to manage 2 relays
  • flush-mounted
Products benefits
Installation
  • Flush-mounted. 1 module to manage 2 relays
Advantages
  • Flush-mounted. 1 module to manage 2 relays
Technical Characteristics
Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Radio frequency bidirectional No
Mounting method Flush-mounted
Width in number of modular spacings 1
Local operation/hand operation Yes
With LED indication Yes
Number of digital inputs 0
Suitable for C-load Yes
Max. number of switching contacts 2
Max. switching current 2 A
Rated current 4 A
Rated operating voltage (Min-Max) 25-27 V
Different phases connectable Yes
With bus connection No
Bus module detachable Yes
Min. depth of built-in installation box 40 mm
Modular expandability Yes
Degree of protection (IP) IP20
Width 22 mm
Height 45 mm
Depth 38 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) 5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type DC
Supply current (Min-Max) 0.02-0.04 A
Terminal marking indication Yes
Type of load Universal and LED Retrofit
Halogen free No
Connection type Screwed terminal
Number of distribution blocks 2
Terminals capacity (Min-Max) 2-2.5 mm²
Connection type Cable
Label space/information surface No
Fitted with USB plug No
Addressable Yes
Connected object No
Product use function Lighting management
