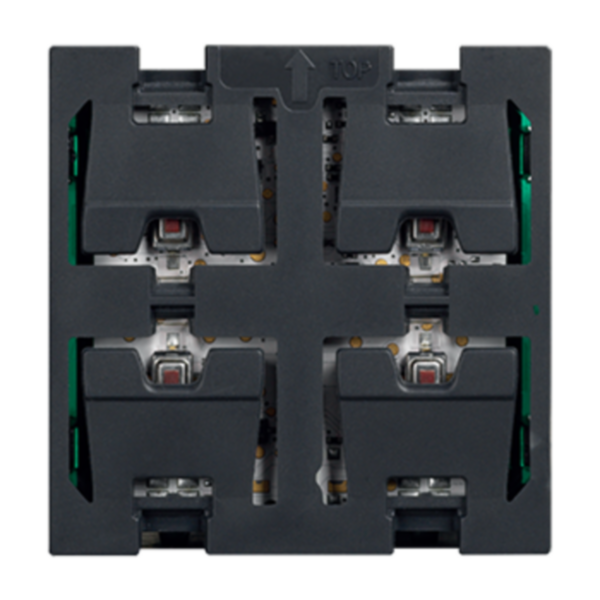

Name: Shutter actuator with 2 internal relay - 2 modules.To be completed with 1 or 2-module Covers.
Brand: BTicino
SKU: BT-K4672M2S
Availability: InStock

Description

Actuator for shutters with 2 interior relays. It allows the management of specific position of the shutter. The device may also be configured to manage a remote actuator.

Product characteristics

It is possible to control shutter with 2 different modes: Normal and Safe
it allows to manage shutter in a specific position: PRESET function
2 modules flush mounting installation
to be completed with aesthetic cover 1 or 2 modules

Products benefits

Usage

Flexibility function: the same command could be configured for remote actuator

Advantages

Easy to configure using the system app
new design that guaratees completly flat commands, with perfect wall alignement and new ergonomy for a full touch interaction
The maximun quality in terms of materials and installation

Technical Characteristics

Bus system KNX No

Bus system KNX-RF (Radio Frequency) No

Bus system radio frequency No

Bus system LON No

Bus system Powernet No

Other bus systems Other

Radio frequency bidirectional No

Mounting method Flush-mounted

With anti-theft/dismantling protection No

With bus connection Yes

Number of actuation points 2

Number of buttons 2

With LED indication Yes

With label area No

With display No

Material Plastic

Material quality Thermoplastic

Surface protection Untreated

Surface finishing Matt

Colour Anthracite

RAL-number (similar) 9011

Transparent No

With room temperature controller No

With IR sensor No

Degree of protection (IP) Other

Min. depth of built-in installation box 55 mm

Width 45 mm

Height 45 mm

Depth 36 mm

Built-in depth 2 mm

degree of impact strength (IK) Not applicable

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) -10-70 °C

Frequency (Min-Max) 0-0 Hz

Standby consumption 10 mA

Terminal marking indication Yes

Halogen free No

Antimicrobial treatment No

Terminals capacity (Min-Max) 1-1 mm²

Cable nature for connection Flexible or rigid

Label space/information surface No

Addressable Yes

Connected object No

Operating method SCS

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Product use function Shutter management

Shutter actuator with 2 internal relay - 2 modules.To be completed with 1 or 2-module Covers.
