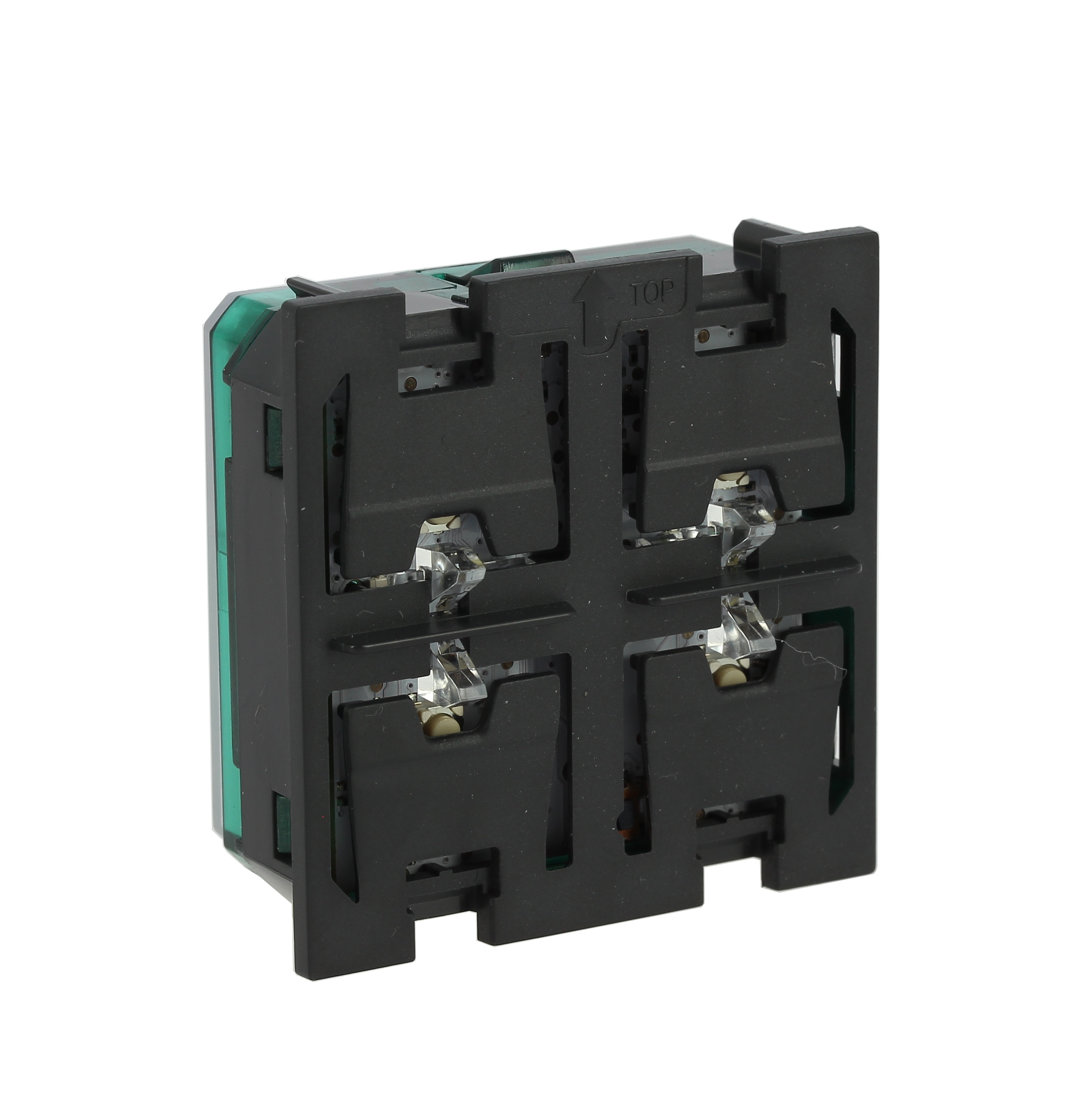

flush mounted control dedicated to the management of Dali2 lights
BT-K4653M2
|
8005543811948
Description
2M flush mounted control, dedicated to the management of lights through up to 4 ambiences : the ambience is a group of lights with a specific setting of each light that can be recalled by this push button and from the Home + Control app.
Product characteristics
- With a short press you set the ambience and with a long press you change the dimming level of each light of the ambience, proportionally to their specific level.
- To be completed with 2 1-module dedicated key covers with A-B C-D icons
- This command is compatible with Dali2 lights so you must have on the installation one of the actuators BT-F429G or BT-F429D
Recommendations / Restrictions
- Indoor usage only
Products benefits
Usage
- Simplified Dali2 management
Advantages
- New concept of ambience: dimming one scenario
- You can personalize the ambience every time thanks to H+C app
- it is easily configured by app
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system KNX Secure
No
Bus system KNX Secure-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Mounting method
Flush-mounted
With anti-theft/dismantling protection
No
With bus connection
Yes
Number of actuation points
4
Number of buttons
4
With LED indication
Yes
With label area
No
With display
No
Material
Other
Material quality
Other
Surface protection
Untreated
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9011
Transparent
No
With room temperature controller
No
With IR sensor
No
Degree of protection (IP)
Other
Min. depth of built-in installation box
30 mm
Width
45 mm
Height
45 mm
Depth
18 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
0-40 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
0-0 Hz
Standby consumption
4.1 mA
Terminal marking indication
Yes
Antimicrobial treatment
No
Terminals capacity (Min-Max)
0.34-2.5 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Addressable
Yes
Contains Batteries
No
Connected object
No
Operating method
SCS
With voice command
No
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Product use function
Control & command systems
Documentation
2 documents
Instruction Use
LE15745AA | PDF (2.3 MB) | AR · DE · EN · ES · FR · IT · NL · PT · RU
Technical Sheet
ST-00002501-EN | PDF (145 KB) | EN
