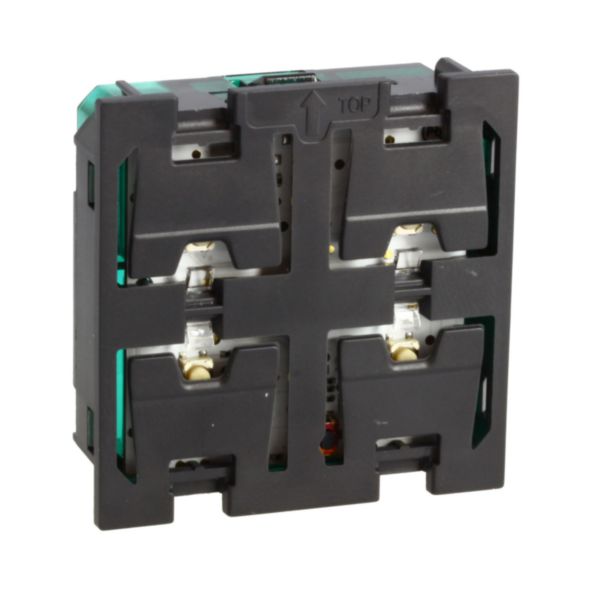

Name: Control for the managing of a single actuator or two actuators.
Brand: BTicino
SKU: BT-K4652M2
Availability: InStock

Description

Command able to control 1 or more actuators for lights, dimmer, shutters, scenarios, locks, floor call, stair light. It could performs group and general commands. To be completed with 1 or 2 module covers. 2 modules installation

Product characteristics

The same command allows to control different system functions (eg: light, dimmer, shutter, scenario, etc)
it is easily configured by app
2 modules flush mounting installation
to be completed with estetic cover 1 or 2 modules

Products benefits

Usage

Function flexibility: the same command could be configured for different functions

Advantages

Easy to configure using the system app
new design that guaratees completly flat commands, with perfect wall alignement and new ergonomy for a full touch interaction
the maximun quality in terms of materials and installation

Technical Characteristics

Bus system KNX No

Bus system KNX-RF (Radio Frequency) No

Bus system radio frequency Yes

Bus system LON No

Bus system Powernet No

Other bus systems Other

Radio frequency bidirectional No

Mounting method Flush-mounted

With anti-theft/dismantling protection No

With bus connection Yes

Number of actuation points 2

Number of buttons 2

With LED indication Yes

With label area No

With display No

Material Other

Material quality Other

Surface protection Untreated

Surface finishing Matt

Colour Anthracite

RAL-number (similar) 9011

Transparent No

With room temperature controller No

With IR sensor No

Degree of protection (IP) Other

Min. depth of built-in installation box 30 mm

Width 45 mm

Height 45 mm

Depth 18 mm

degree of impact strength (IK) Not applicable

Operating / setting temperature (Min-Max) 0-40 °C

Storage temperature (Min-Max) -10-70 °C

Frequency (Min-Max) 0-0 Hz

Standby consumption 5 mA

Terminal marking indication Yes

Antimicrobial treatment No

Cable nature for connection Flexible or rigid

Label space/information surface No

Addressable Yes

Contains Batteries No

Connected object No

Operating method SCS

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Product use function Control & command systems

Control for the managing of a single actuator or two actuators.
