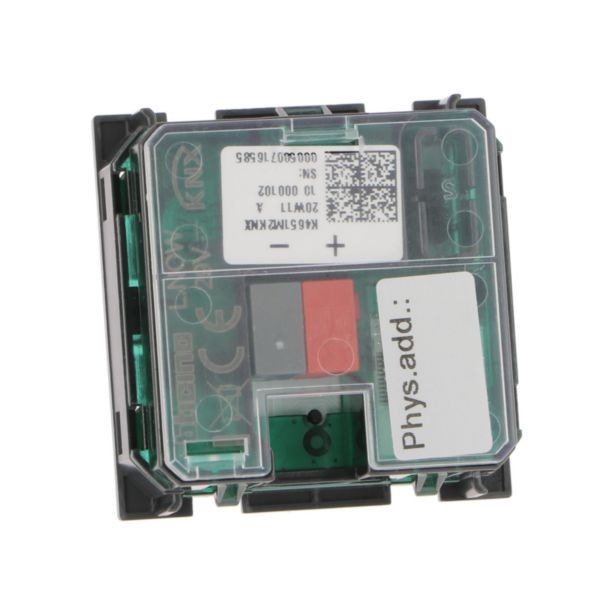

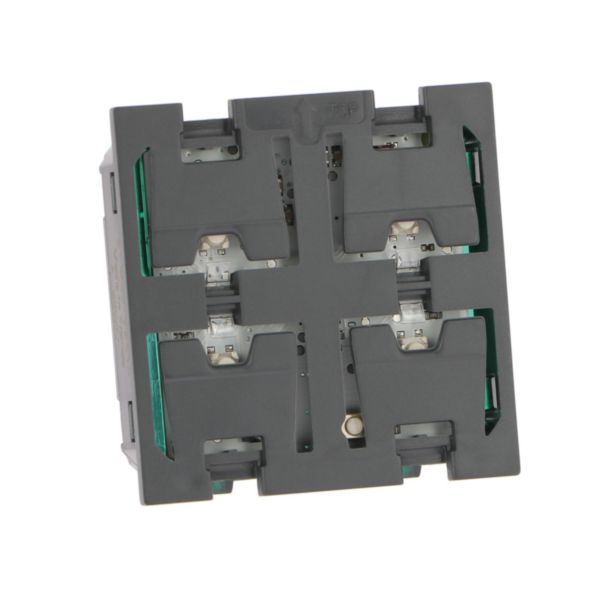

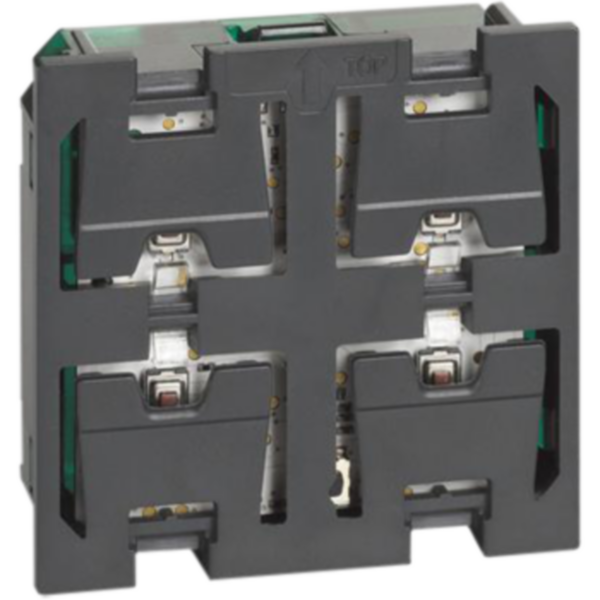

Living Now - 4 channel KNX control.

Living Now - 4 channel KNX control.The KNX controls are wiring devices suitable to control Lights, shutters or other kind of loads. They are equipped with 4 completely independent and configurable channels able to perform a wide range of functions. Main configurable functions: • 1/2 buttons switching/dimming • 1/2 buttons shutters and blinds management • value sending (shutter position, dimming %...) • sequential value sending • multiple commands • conditional commands • 1/8 bit scenario saving and recall Each device is also equipped with 2 RGB LEDs fully configurable in term of colors and blinking mode and can switch operating profiles according to defined events or conditionsSupply voltage: 29 V= • KNX connector: red/Black • Automatic clamp • Terminal capacity: 4 x (Diameter 0,6 mm < < Diameter 0,8 mm) • KNX BUS absorption: 9.5 mA • Usage temperature: 0°C/+45°C, negative temperatures are not managed. • Storage temperature: -25°C/+30°C • IP40: assembled product • IP20: without rocker plate • IK02
