Name: Wireless Home/Away scenario controls
Brand: BTicino
SKU: BT-K4570CW
Availability: InStock

Description

The Home/Away wireless master switch allows you to add an extra Home/Away wireless switch. In the Home + Control app, choose which lights, roller shutters or electrical appliances you wish to control via the Home and Away scenarios,

Product characteristics

Predefined Home/Away scenarios which can be customised from the Home + Control app. Manage them with a single press on your wireless master switch
LED indicator with low battery warning
Supplied with a replaceable battery with an 8-year life
2.4 GHz radio technology

Recommendations / Restrictions

To add your Home/Away wireless master switch to your connected installation, you first need to purchase and install a Living Now with Netatmo connected starter pack, as well as one or more Living Now with Netatmo connected switches, power outlets or lighting micromodules

Products benefits

Installation

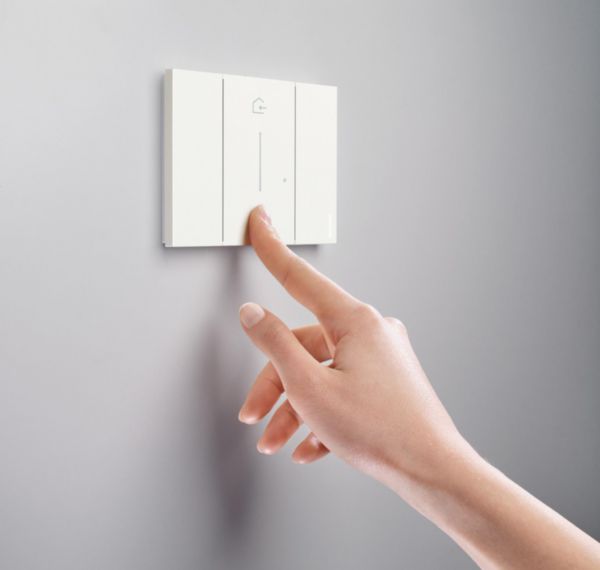

Extra-slim, the Home/Away wireless master switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box

Usage

The Home/Away wireless master switch complements the one included in the Living Now with Netatmo connected starter pack. You can therefore place each of these switches at different entrances to your home

Technical Characteristics

Radio frequency 2400 MHz

Rolling code system Yes

Code length (Bit) 128

Range 185 m

Number of commands 2

With manual radio transmitter Yes

Flush-mounted radio transmitter No

Surface mounted radio transmitter Yes

With radio coding device Yes

Degree of protection (IP) IP20

Keyboard protection cover No

Current supply Battery

Width 76 mm

Height 73 mm

Depth 9 mm

Built-in depth 0 mm

degree of impact strength (IK) IK02

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Standby consumption 0 mA

Mandatory neutral No

Stress test conformity (1000V) No

Colour Other

RAL-number 7015

Halogen free Yes

Antimicrobial treatment No

Mounting method Surface mounted

Contains Batteries and/or Accumulator Yes

IEC code (Pack1) CR2032

Battery ou Accumulator (Pack1) Battery (not rechargeable)

Element Composition (Pack1) Lithium (battery or accumulator)

Number of Pack 1 1

Number of Single Element (Pack1) 1

Single Element weight (Pack1) 3 g

Pack1 Location Product includes a battery

Regulation Type (Pack1) P : Portable (Standard format)

Connected object Yes

Operating method Zigbee

Application store for download Google Play Store, App Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Lighting management
