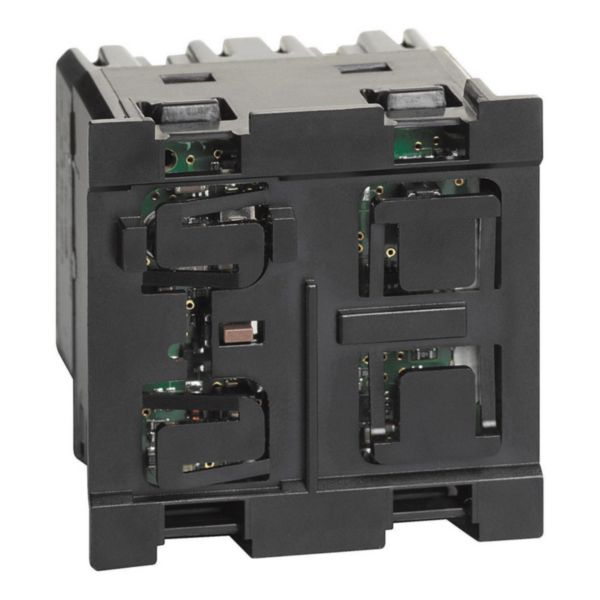

Name: pushbutton dimmer for ballast lamp with 0-10V output
Brand: BTicino
SKU: BT-K4410
Availability: InStock

Description

The Living Now dimmer can reduce or increase the intensity of a light load to give a more intimate or luminous atmosphere to the environment.

Product characteristics

Light intensity memory function: the light turns on at the same light intensity as when it was turned off.
The device must be completed with the type 19 cover
Screw and plate terminals
Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
Used to control 0-10V ballast lamps. Powered to 100-230 Va.c.

Recommendations / Restrictions

For internal use only.

Products benefits

Installation

It can be associated with one or more push buttons, allowing to activate / deactivate and dim the load.Dimmer without neutral to allow Retrofit installations.

Usage

The ideal solution to adapt the light intensity of an environment to your needs.

Advantages

It is coordinated with the L.NOW aesthetic, taking advantage of the full touch ergonomics of the control: it can be activated by pressing the control at any point on its surface (above, below and in the middle)
Suitable for all LED light loads included

Technical Characteristics

Assembly arrangement Basic element with central cover plate

Method of operation Push button

Number of modules (module system) 2

Number of units 1

App control via Bluetooth No

Dimming phase cut-on (leading edge) No

Dimming phase cut-off (trailing edge) No

Serial dimmer Yes

Type of load Electronic ballast 1-10 V

Substation input No

Light value memory No

Applicable with button Yes

Applicable with movement sensor No

Applicable with presence indicator No

Applicable with time switch/timer No

Applicable with transmission button No

Applicable with infrared button No

Min. brightness controllable Yes

Mounting method Module frame

Type of fastening Other

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Surface protection Untreated

Surface finishing Matt

Colour Black

RAL-number (similar) 7015

Transparent No

Suitable for degree of protection (IP) IP21

degree of impact strength (IK) IK04

Nominal voltage (Min-Max) 100-240 V

Frequency (Min-Max) 50-60 Hz

Control voltage (Min-Max) 0-10 V

Nominal power resistive load (Min-Max) 0-150 W

Nominal power inductive load (Min-Max) 0-150 VA

Nominal power capacitive load (Min-Max) 0-150 VA

Max. switching power LED 150 W

Connection type Screwed terminal

Cable section (Min-Max) 1.5-2.5 mm²

Device width 45 mm

Device height 45 mm

Device depth 38 mm

Min. depth of built-in installation box 40 mm

Compatible with Apple HomeKit No

Compatible with Google Assistant No

Compatible with Amazon Alexa No

IFTTT support available No

Built-in depth 35 mm

Operating / setting temperature (Min-Max) 0-35 °C

Storage temperature (Min-Max) -10-70 °C

Voltage type AC

Mandatory neutral No

Terminal marking indication No

Stress test conformity (1000V) No

Antimicrobial treatment No

Terminals capacity (Min-Max) 1.5-2.5 mm²

Cable nature for connection Flexible or rigid

pushbutton dimmer for ballast lamp with 0-10V output
