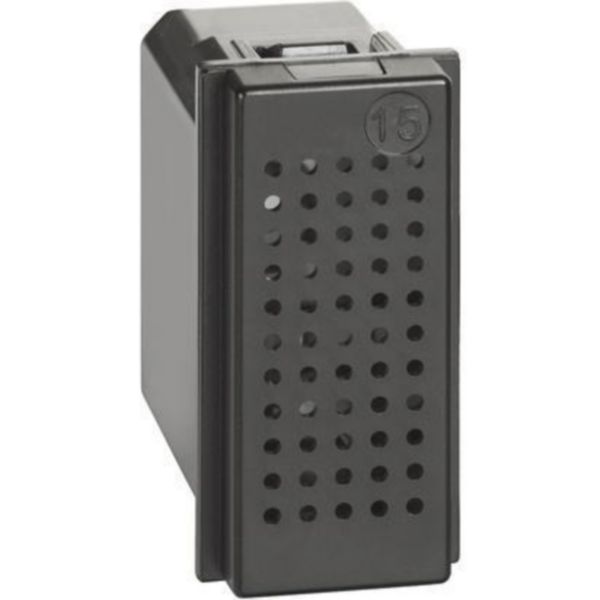

127 Vac buzzer - 12 VA - 80 dB
BT-K4356V127
|
8005543647011
Description
The Living Now buzzer is an acoustic alarm signal inside the house (for example, it is activated by the pull button of the bathroom)
Product characteristics
- it allows the acoustic signaling called from a room inside the house
- The device must be completed with the type 15 cover
- Screw and plate terminals
- Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
- Power supply 127 Va.c. - 12 VA - 80 dB - 1 module
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
- To be used for acoustic signals inside the house (pull button in the bathroom)
Advantages
- It is coordinated with the L.NOW aesthetic
Technical Characteristics
Type of current
AC
Electricity consumption
12 A
Degree of protection (IP)
IP21
Loudness
80 dB
Housing material
Plastic
Housing material quality
Other
Surface protection housing
Untreated
Housing colour
Black
Type of tone
Continuous tone
Mounting method
Built-in
Built-in transformer
Yes
Width
22 mm
Height
45 mm
Depth
42 mm
Built-in depth
34 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-5-36 °C
Frequency (Min-Max)
50-60 Hz
RAL-number
7015
Halogen free
Yes
Antimicrobial treatment
No
Connection type
Screwed terminal
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Loudness setting
No
