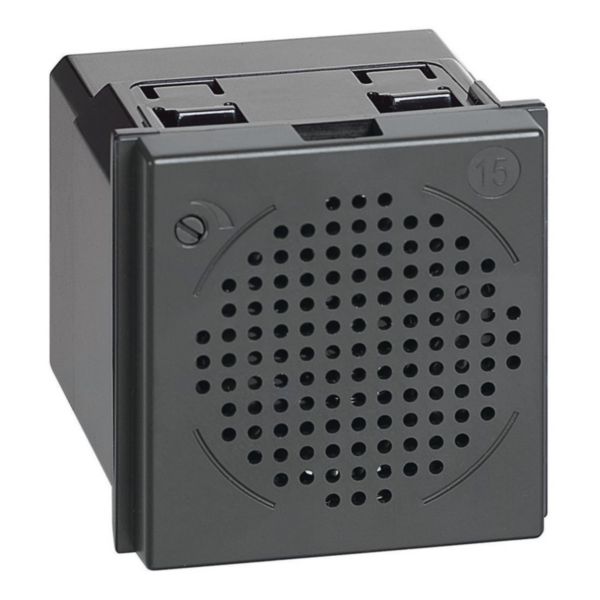

Name: Electronic bell - 3 different sounds
Brand: BTicino
SKU: BT-K4355V12
Availability: InStock

Description

The Living Now electronic ringer can manage 3 different ringtones and is an acoustic alarm signal inside the house

Product characteristics

It allows acoustic signaling and volume regulation through a frontal screw
The device must be completed with the type 15 cover
Screw and plate terminals
Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
Power supply 12 Va.c.-d.c. - 2 modules

Recommendations / Restrictions

Products benefits

Installation

Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.

Usage

To be used for acoustic signals - possibility to adjust the volume and choose between three different ringtones

Advantages

Technical Characteristics

Housing colour Black

Housing material Plastic

Nominal voltage (Min-Max) 12-12 V

Type of current AC/DC

Built-in battery No

Electricity consumption (Min-Max) 5-5 A

Connection type Screwed terminal

Loudness 80 dB

Wireless No

Degree of protection (IP) IP21

Mounting method Modular device for domestic switching devices

Number of modules (module system) 2

Width in number of modular spacings 44.7

Width 45 mm

Height 45 mm

Depth 42.5 mm

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -5-35 °C

Frequency (Min-Max) 50-60 Hz

Terminal marking indication No

RAL-number 7015

Halogen free Yes

Antimicrobial treatment No

Cable nature for connection Flexible or rigid

Label space/information surface No

With complemantary luminous signal No

Contains Batteries and/or Accumulator No

Number of ringtones 3

Connected object No
