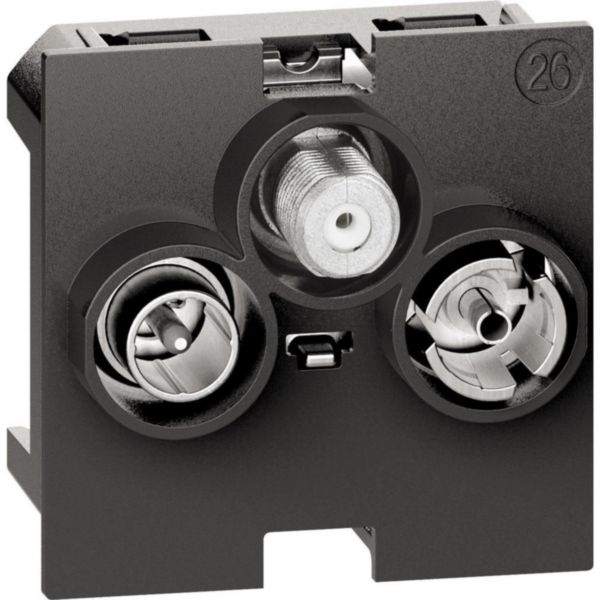

Name: Star demixed TV-R-SAT sockets for DVB-T
Brand: BTicino
SKU: BT-K4210M2D
Availability: InStock

Description

This Star demixed TV-R-SAT sockets allows distribution of TV & Radio signals.

Product characteristics

Optimized cable tightness

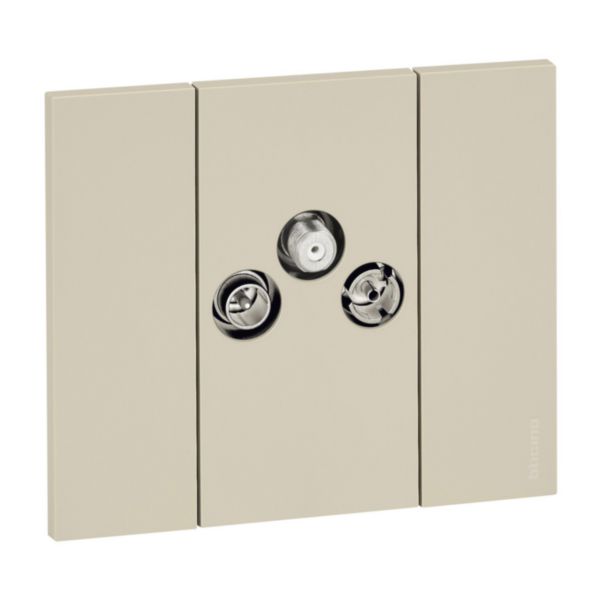

The device must be completed with the type 26 cover
attenuation -1.5 dB
Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
Shielded connection terminals with captive screws, 2 modules

Recommendations / Restrictions

Products benefits

Installation

This connector is designed for intuitive insertion of the cable. The connection to the terminal board is quick and easy. Finally, a good vision on the connection allows you tobe sure if the cable is tightened.

Usage

Advantages

Certified Class A shield: protects against interference caused by new signals generated by mobile phones (3G, 4G, 5G), which can cause pixels, picture or sound disturbances
It is coordinated with the L.NOW aesthetic

Technical Characteristics

Model Loop-through socket

Type of socket outlet TV/RD/SAT

Mounting method Module frame

Number of modules (module system) 2

Assembly arrangement Basic element with central cover plate

Tap loss at 860 MHz 1.5 dB

Tap loss at 2150 MHz 2 dB

Number of outlets 3

Suitable for cable modem No

TV frequency band (Min-Max) 5-862 MHz

Suitable for remote power supply No

Radio frequency band (Min-Max) 87.5-108 MHz

SAT frequency band (Min-Max) 950-2400 MHz

Type of fastening Snap mounting (engagement)

Colour Black

RAL-number (similar) 7015

Surface protection Untreated

Surface finishing Matt

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Antimicrobial treatment No

Degree of protection (IP) IP20

degree of impact strength (IK) IK04

Device width 45 mm

Device height 45 mm

Device depth 40 mm

Min. depth of built-in installation box 37.5 mm

Built-in depth 27.5 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Terminal marking indication No
