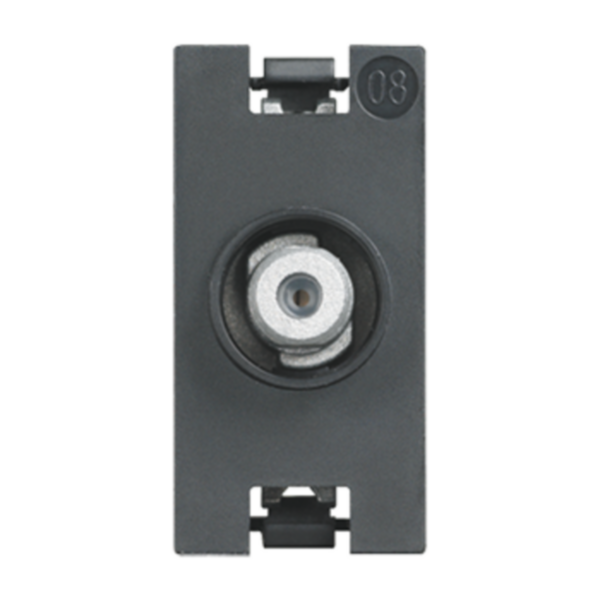

Name: Type F TV coaxial connector - impedance 75
Brand: BTicino
SKU: BT-K4202F
Availability: InStock

Description

The Living Now coaxial TV socket, type F, allows you to connect all types of TV with a very high definition quality (UHD). Its " screw connection allows a reliable and secure connection."

Product characteristics

Optimized cable tightness
The device must be completed with the type 08 cover
It limits the attenuation of the signal (attenuation less than 1 dB): reducing the need for amplification.
Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
75 ohm impedance, screw coupling, 1 module

Recommendations / Restrictions

For internal use only.

Products benefits

Installation

This connector is designed for intuitive insertion of the cable. The connection to the terminal board is quick and easy. Finally, a good vision on the connection allows you tobe sure if the cable is tightened.

Usage

Optimized outlet for new UHD or 4K TVs: designed for optimal signal reception.

Advantages

Certified Class A shield: protects against interference caused by new signals generated by mobile phones (3G, 4G, 5G), which can cause pixels, picture or sound disturbances
It is coordinated with the L.NOW aesthetic

Technical Characteristics

Model Loop-through socket

Type of socket outlet SAT

DAB+ No

Mounting method Module frame

Number of modules (module system) 1

Assembly arrangement Basic element with central cover plate

Tap loss at 860 MHz 1.5 dB

Tap loss at 2150 MHz 2 dB

Number of outlets 1

Suitable for cable modem No

Through loss at 860 MHz 1.5 dB

Through loss at 2150 MHz 2 dB

TV frequency band (Min-Max) 5-862 MHz

Suitable for remote power supply No

Radio frequency band (Min-Max) 87.5-108 MHz

SAT frequency band (Min-Max) 950-2400 MHz

Type of fastening Snap mounting (engagement)

Colour Black

RAL-number (similar) 7015

Surface protection Lacquered

Surface finishing Matt

Material Plastic

Material quality Duroplast

Halogen free Yes

Antimicrobial treatment No

Degree of protection (IP) IP20

degree of impact strength (IK) IK02

Device width 22 mm

Device height 45 mm

Device depth 31 mm

Min. depth of built-in installation box 32 mm

Built-in depth 22 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -5-35 °C

Terminal marking indication No

Type F TV coaxial connector - impedance 75
