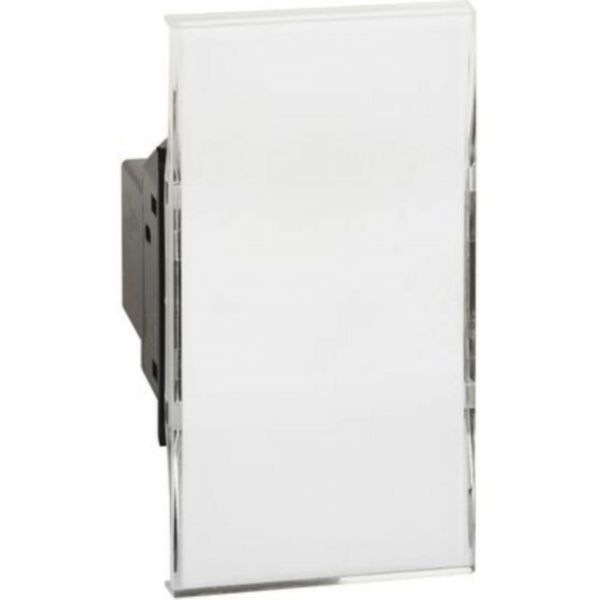

3 A 250 Vac plate pushbutton
BT-K4040N
|
8005543773482
Description
Pushbutton+name label 3 A 250 Va.c., backlit with LED technology (already installed), cover supplied in pack with the device - 2 modules
Product characteristics
- Fully Flat mechanism to follow the aesthetics of the L.Now light point
- The device is already complete with Cover
- Screw and plate terminals
- Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
- 3 A, 250 Va.c.1 P (NO), 2 modules
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
- Disassembled the cover from the switch, fill in the card with the name.
Advantages
- It is coordinated with the L.NOW aesthetic
- LED on board
Technical Characteristics
Assembly arrangement
Basic element
Model
Single push button
Method of operation
Push button/touch control button
Operating principle
Electromechanical
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
No
Number of rockers
1
Number of modules (module system)
2
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
With light source
No
With complemantary luminous signal
Yes
Monitoring contact
No
Connection type
Screwed terminal
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Imprint
None
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
86 mm
Device depth
34 mm
Min. depth of built-in installation box
35 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
25 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
Yes
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
