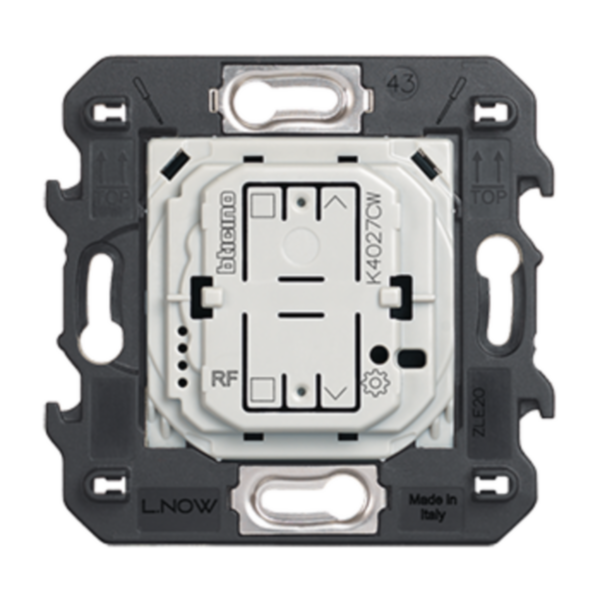

Name: Wireless shutter control
Brand: BTicino
SKU: BT-K4027CW
Availability: InStock

Description

The roller shutter wireless switch allows you to control your roller shutters remotely via the Home + Control app or by using your voice, and to centralise control of several roller shutters without pulling more wires through

Product characteristics

Up/down/stop function
LED indicator with low battery warning
Supplied with a replaceable battery with an 8-year life

Recommendations / Restrictions

To pair your roller shutter wireless switch, you first need to purchase and install a Living Now with Netatmo connected starter pack, as well as one or more Living Now with Netatmo connected roller shutter switches

Products benefits

Installation

Extra-slim, the roller shutter wireless switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box

Usage

Pair as many connected roller shutter switches as you wish and control them all with a single press on your wireless switch

Technical Characteristics

Radio frequency 2400 MHz

Rolling code system Yes

Code length (Bit) 128

Range 185 m

Number of commands 2

With manual radio transmitter Yes

Flush-mounted radio transmitter No

Surface mounted radio transmitter Yes

With radio coding device Yes

Degree of protection (IP) IP20

Keyboard protection cover No

Current supply Battery

Width 76 mm

Height 73 mm

Depth 9 mm

Built-in depth 0 mm

degree of impact strength (IK) IK02

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Standby consumption 2.1 mA

Mandatory neutral No

Stress test conformity (1000V) No

Colour Other

RAL-number 7015

Halogen free Yes

Antimicrobial treatment No

Mounting method Surface mounted

Contains Batteries and/or Accumulator Yes

IEC code (Pack1) CR2032

Battery ou Accumulator (Pack1) Battery (not rechargeable)

Element Composition (Pack1) Lithium (battery or accumulator)

Number of Pack 1 1

Number of Single Element (Pack1) 1

Single Element weight (Pack1) 3 g

Pack1 Location Product includes a battery

Regulation Type (Pack1) P : Portable (Standard format)

Connected object Yes

Operating method Zigbee

Application store for download Google Play Store, App Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Shutter management

Wireless shutter control
