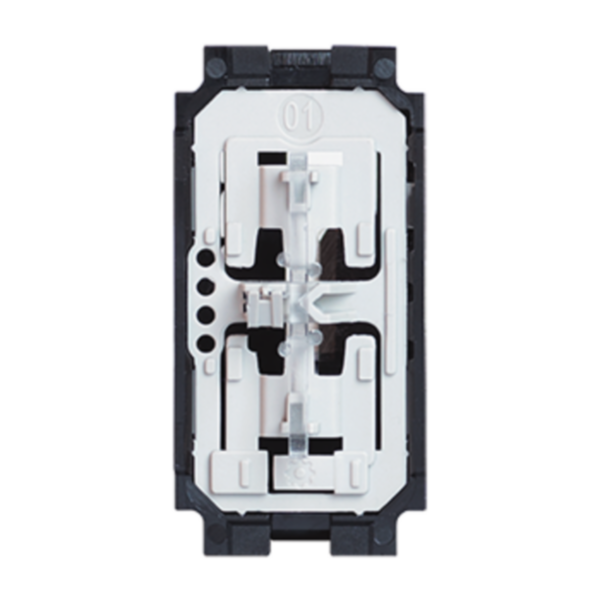

Name: Connected shutter control
Brand: BTicino
SKU: BT-K4027C
Availability: InStock

Description

The connected roller shutter switch allows you to control your roller shutters remotely from your smartphone via the Home + Control app, or by using your voice.

Product characteristics

Up/down/stop function
Compatible with wired roller shutters with electronic and mechanical end stop. Not compatible with radio-controlled roller shutters
LED indicator with locator function which can be activated in the app

Recommendations / Restrictions

To connect your roller shutter switch, you first need to purchase and install a Living Now with Netatmo connected starter pack.

Products benefits

Installation

The connected roller shutter switch is easily installed in place of an existing flush-mounting switchand needs a standard-depth flush-mounting box (40 mm). Claw or screw fixing possible

Usage

If you wish to manage your roller shutters centrally, you can pair them with one or more Living Now with Netatmo connected wireless switches

Technical Characteristics

Bus system KNX No

Bus system KNX-RF (Radio Frequency) No

Bus system radio frequency Yes

Bus system LON No

Bus system Powernet No

Other bus systems Zigbee

Radio frequency bidirectional Yes

Mounting method Flush-mounted

Width in number of modular spacings 1

With bus connection No

Bus module detachable No

Local operation/hand operation Yes

With LED indication Yes

Number of inputs 4

Switching current (resistive) 2 A

Max. switching power 500 W

Max. number of venetian-blind outputs 1

With switch function Yes

Type of current AC

Degree of protection (IP) IP20

Min. depth of built-in installation box 40 mm

Width 22 mm

Height 45 mm

Depth 42 mm

Built-in depth 35 mm

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Nominal voltage (Min-Max) 100-240 V

Frequency (Min-Max) 50-60 Hz

Standby consumption 0.1 mA

Mandatory neutral Yes

Terminal marking indication Yes

Stress test conformity (1000V) No

Colour Black

RAL-number 9011

Halogen free Yes

Antimicrobial treatment No

Connection type Screwed terminal

Number of terminals 4

Terminals capacity (Min-Max) 1.5-2.5 mm²

Contains Batteries and/or Accumulator No

Connected object Yes

Operating method Zigbee

Application store for download App Store, Google Play Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Shutter management

Connected shutter control
