New Living Now Bticino

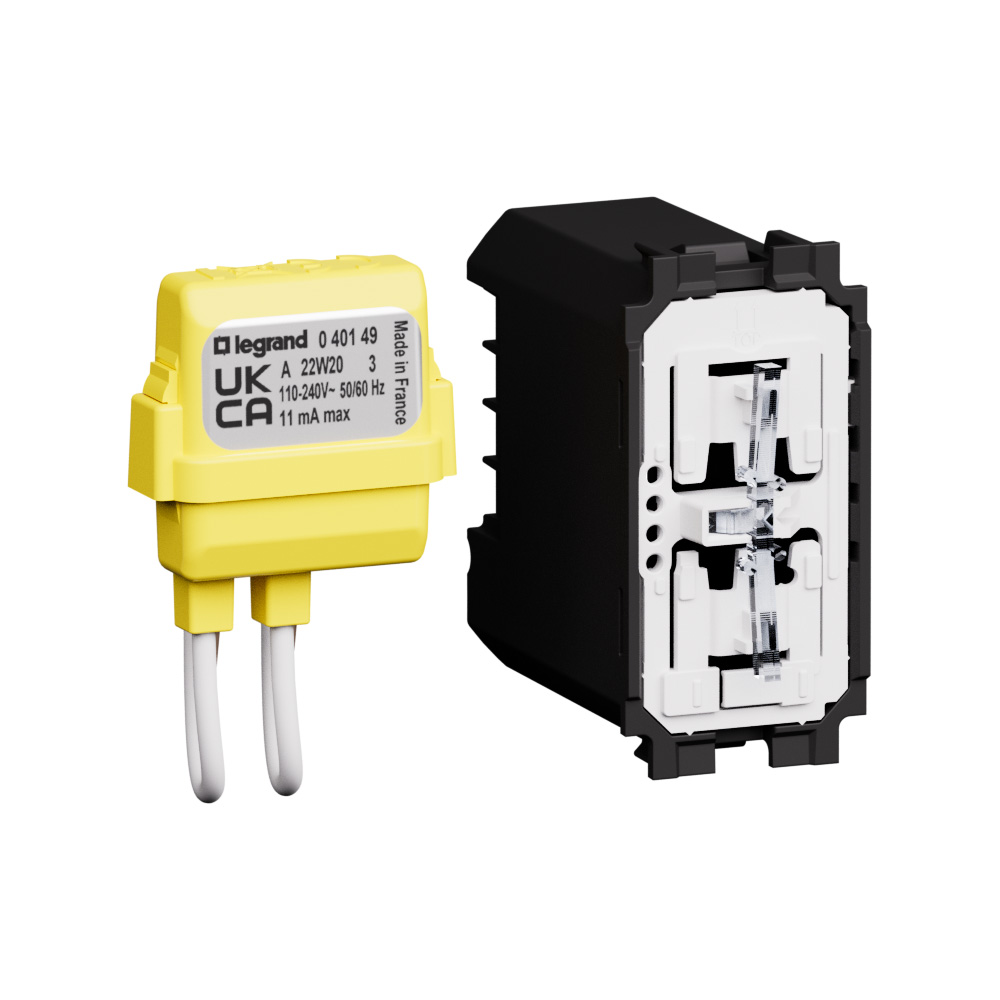

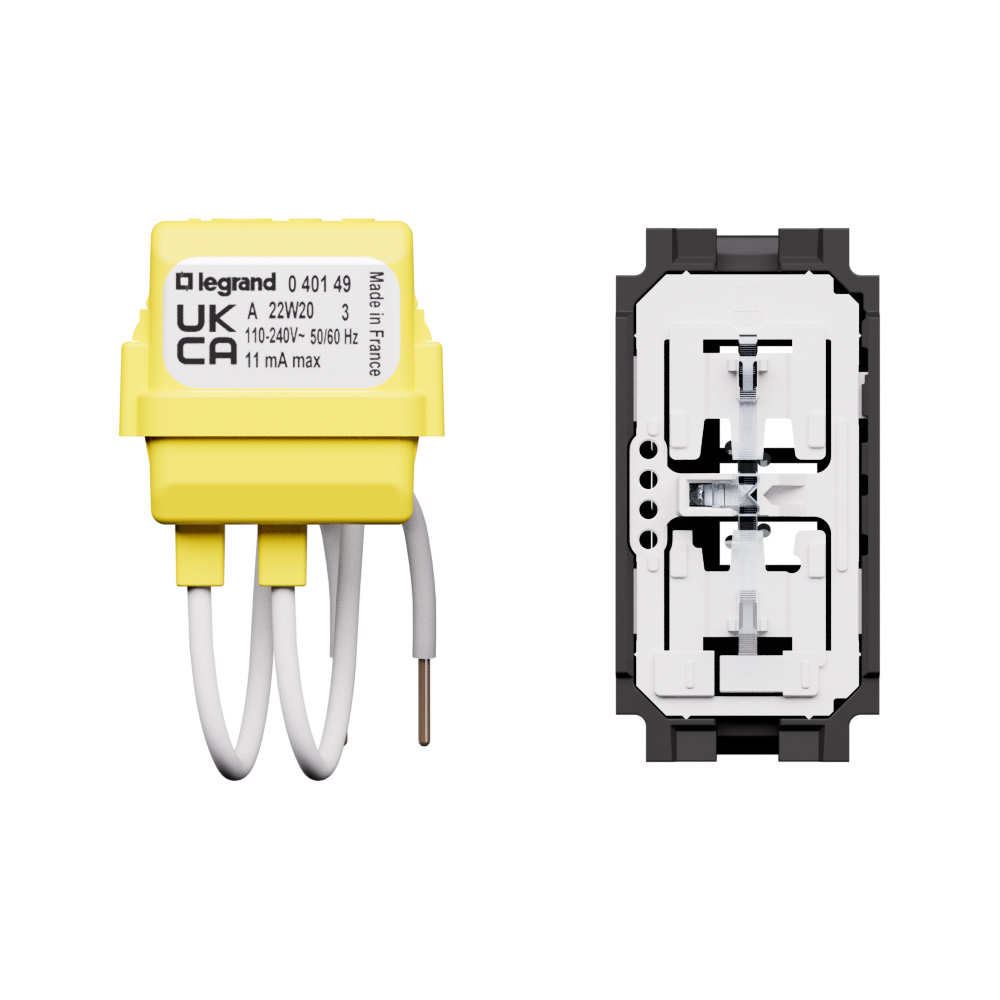

Connected one-way switch without neutral.

BT-K4006C | 8005543772102
Connected one-way switch without neutral. It controls the lights locally or remotely. It can be installed like a traditional two-way switch and is compatible with all loads with max. power 200 W. It has a blue LED, which can be configured using the Home + Control App for the localisation and load status functions. It can be associated to one or more wireless controls. Caution: neutral connection is NOT necessary. Power supply 110-230 VA - 1 module
Description

The smart switch allows you to control your lights remotely via the Home + Control app, or by using your voice thanks to compatible voice assistants

Product characteristics
  • Without neutral, 5 VA - 200VA, supplied with a compensator
  • Compatible with conventional or dimmer bulbs, including LEDs.
  • LED indicator with locator function which can be activated in the app
  • Auxiliary input to control the smart switch from regular mechanical push buttons or toggle switches
  • Can be associated with additional wireless switches or battery-less/wireless switches.
Recommendations / Restrictions
  • To connect your switch, you first need to purchase and install a Gateway from a starter pack "with Netatmo". To control your two-way switch, you need to pair one or more Living Now with Netatmo wireless switches with it and/or wire a mechanical push-button or toggle switch
Products benefits
Installation
  • The smart switch is easily installed in place of an existing flush-mounting switch. It needs a standard-depth flush-mounting box (40 mm).
Usage
  • Control and dim your lights by touching the switch, your smarphone or by your voice using a vocal assistant
Advantages
  • When associated with a Gateway, the smart products can be controlled manually or remotely from your smartphone or via voice control. The Gateway allows to create automation and schedules to automatically swich on or off the lights.
  • Does not require neutral. Supplied with a compensator for increased compatibility with LED lighting on the market
  • Perfect integration with the aesthetics of other appliance controls
Documentation
2 documents
Instruction Use
LE15213AA | PDF (2.7 MB)
Technical Sheet
ST-00002281-EN | PDF (481 KB) | EN
1 documents
Agreement
LGNGUMHHCO | FILE (427 KB) | EN · FR
