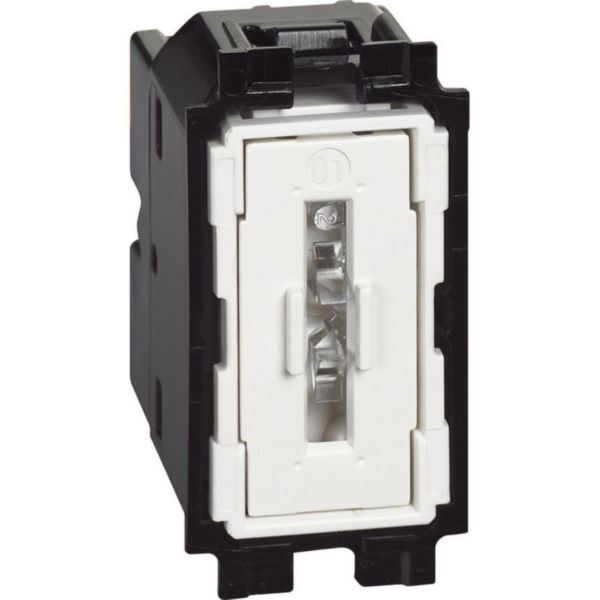

Name: 1P 10 AX, 250 Vac pushbutton
Brand: BTicino
SKU: BT-K4005A
Availability: InStock

Description

The Living Now pushbutton allows you to ring a bell or interact with a relay allowing the operation of a load from several points. It can be illuminated with the addition of a signaling LED.

Product characteristics

The mechanism is Full-touch enhancing the ergonomics of the command: it can be operated by pressing the control at any point on its surface (above, below and in the middle)
Full touch also means perfect flatness of the control point regardless of the load status
Automatic terminals
Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
10 A, 250 Va.c. 1PCompleted with LED for light signaling

Recommendations / Restrictions

For internal use only.

Products benefits

Installation

Further improvement of the installation and removal in the support frame thanks to the new generation of plastic hooks.The reduced depth of this device simplifies wall installation in case of shallow or full of cables boxes.

Usage

It can be used as a simple switch able to manage all light loads(LED included).Ergonomics is enhanced thanks to the new Full touch concept: the control can be operated by pressing at any point on its surface.

Advantages

The interaction is immediate and thanks to the "full touch" controls, the ergonomics of the button are completely new. In fac it cant be operated in a precise way in any part thereof, at the center, top, or bottom. Once pressed, the key returns to position, remaining always perfectly aligned.
The strength of design lies in the essentiality of the form obtainedfrom the search for an absolute flatness between the elements of the switch.

Technical Characteristics

Assembly arrangement Basic element

Model Single push button

Method of operation Push button

Number of contacts as normally closed contact 0

Number of contacts as normally open contact 1

Number of contacts as change-over contact 0

Contactless type No

Number of rockers 0

Number of modules (module system) 1

Number of poles 1

Nominal voltage 250 V

Rated current 10 A

With lighting No

With light source No

With complemantary luminous signal No

Monitoring contact No

Connection type Push-in clamp

Mounting method Flush-mounted

Type of fastening Engage (snap)

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Antimicrobial treatment No

Surface protection Untreated

Surface finishing Matt

Colour Black

RAL-number (similar) 7015

Transparent No

Label space/information surface No

Imprint None

Suitable for degree of protection (IP) IP20

degree of impact strength (IK) IK04

Device width 22 mm

Device height 45 mm

Device depth 32 mm

Min. depth of built-in installation box 40 mm

Compatible with Apple HomeKit No

Compatible with Google Assistant No

Compatible with Amazon Alexa No

IFTTT support available No

Built-in depth 30 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -5-35 °C

Voltage type AC

Frequency (Min-Max) 50-60 Hz

Mandatory neutral No

Terminal marking indication No

Terminals capacity (Min-Max) 1.5-2.5 mm²

Cable nature for connection Flexible or rigid

Cable section (Min-Max) 1.5-2.5 mm²

1P 10 AX, 250 Vac pushbutton
