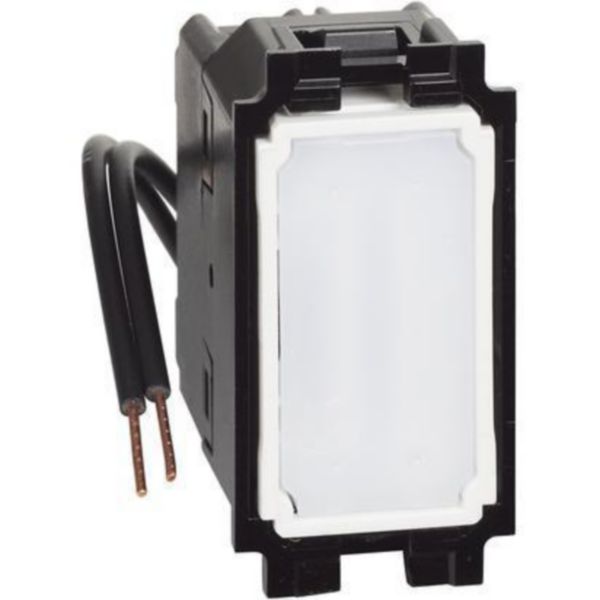

Name: 1P 10 AX, 127 VA LIT 4-way switch
Brand: BTicino
SKU: BT-K4004V127LB
Availability: InStock

Description

The Living Now 4 ways switch allows to control a 10 AX load (all types including LEDs) from three points if duly installed with two deviators. Inside the mechanism there is a blue LED, 127V signal lamp

Product characteristics

The mechanism is Full-touch enhancing the ergonomics of the command: it can be operated by pressing the control at any point on its surface (above, below and in the middle)
Full touch also means perfect flatness of the control point regardless of the load status
Screw and plate terminals
Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
10 AX, 127 Va.c. 1P Completed with a blue LED for light signaling 127V

Recommendations / Restrictions

For internal use only.

Products benefits

Installation

Further improvement of the installation and removal in the support frame thanks to the new generation of plastic hooks.The reduced depth of this device simplifies wall installation in case of shallow or full of cables boxes.

Usage

Ergonomics is enhanced thanks to the new Full touch concept: the control can be operated by pressing at any point on its surface

Advantages

The interaction is immediate and thanks to the "full touch" controls, the ergonomics of the button are completely new. In fac it cant be operated in a precise way in any part thereof, at the center, top, or bottom. Once pressed, the key returns to position, remaining always perfectly aligned.
The strength of design lies in the essentiality of the form obtained from the search for an absolute flatness between the elements of the switch.
You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device

Technical Characteristics

Wiring system Two-way/two-way switch

Method of operation Rocker/button

Assembly arrangement Modular device for domestic switching devices

Number of modules (module system) 1

Push button switch Yes

Number of rockers 1

Mounting method Flush-mounted

Type of fastening Engage (snap)

With mounting plate No

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Antimicrobial treatment No

Surface protection Untreated

Surface finishing Glossy

Colour Other

RAL-number (similar) 7015

Colour of switch operator Other

Label space/information surface No

Lighting No

Function lighting Orientation

Type of lighting LED not exchangeable

Suitable for degree of protection (IP) IP20

degree of impact strength (IK) IK04

Nominal voltage 127 V

Rated current 10 A

Switching current for fluorescent lamps 15 AX

Monitoring contact No

Connection type Other

Heating switch No

Washing machine switch No

Device width 22 mm

Device height 45 mm

Device depth 32 mm

Built-in depth 30 mm

Min. depth of built-in installation box 40 mm

Compatible with Apple HomeKit No

Compatible with Google Assistant No

Compatible with Amazon Alexa No

IFTTT support available No

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -5-35 °C

Voltage type AC

Frequency (Min-Max) 50-60 Hz

Mandatory neutral No

Terminal marking indication No

Terminals capacity (Min-Max) 1.5-2.5 mm²

Cable nature for connection Flexible or rigid

Cable section (Min-Max) 1.5-2.5 mm²

1P 10 AX, 127 VA LIT 4-way switch
