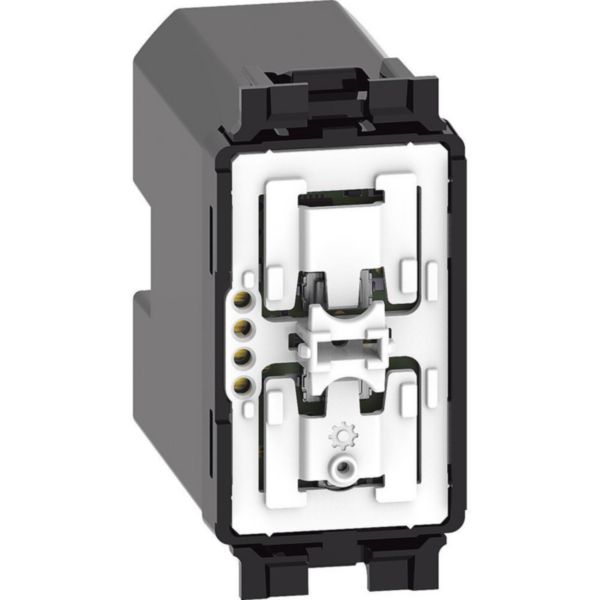

Name: Wireless Light control
Brand: BTicino
SKU: BT-K4003CWI
Availability: InStock

Description

The wireless light switch allows you to add an extra control point without pulling wires through the walls, and to control your lights (especially two-way switches) or electrical appliances

Product characteristics

Quick and easy pairing with wired products (connected switch with dimmer option, connected power outlet, connected micromodule, or connected cable outlet)
LED indicator with low battery warning
Supplied with a replaceable battery with an 8-year life

Recommendations / Restrictions

To add your wireless light switch to your connected installation, you first need to purchase and install a Living Now with Netatmo gateway, as well as one or more Living Now with Netatmo connected switches, power outlets or lighting micromodules

Products benefits

Installation

The wireless switch has the same dimension of traditional 1module switch. It can be installed onto a flush-mounting box.

Usage

Pair as many dimmer switches, lighting micromodulesand power outlets as you wish and control them allwith a single press on the wireless switch.

Technical Characteristics

Radio frequency 2400 MHz

Rolling code system Yes

Code length (Bit) 128

Range 185 m

Number of commands 1

With manual radio transmitter Yes

Flush-mounted radio transmitter Yes

Surface mounted radio transmitter No

With radio coding device Yes

Degree of protection (IP) IP40

Keyboard protection cover No

Current supply Battery

Width 22 mm

Height 45 mm

Depth 40 mm

Built-in depth 33 mm

degree of impact strength (IK) IK02

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Standby consumption 0 mA

Mandatory neutral No

Stress test conformity (1000V) No

Colour Other

RAL-number 7015

Halogen free Yes

Antimicrobial treatment No

Mounting method Flush-mounted

Contains Batteries and/or Accumulator Yes

IEC code (Pack1) CR2032

Battery ou Accumulator (Pack1) Battery (not rechargeable)

Element Composition (Pack1) Lithium (battery or accumulator)

Number of Pack 1 1

Number of Single Element (Pack1) 1

Single Element weight (Pack1) 3 g

Pack1 Location Product includes a battery

Regulation Type (Pack1) P : Portable (Standard format)

Connected object Yes

Operating method Zigbee

Application store for download Google Play Store, App Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Lighting management
