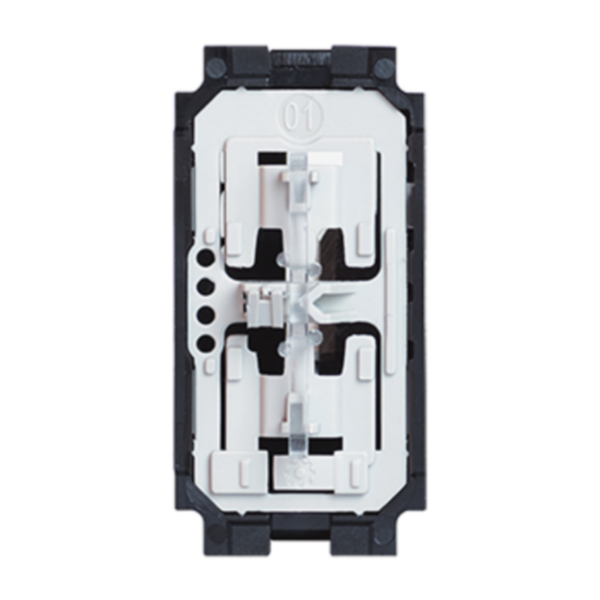

Name: Connected 2-way switch
Brand: BTicino
SKU: BT-K4003C
Availability: InStock

Description

The connected switch allows you to control your lights remotely via the Home + Control app, or by using your voice.

Product characteristics

With neutral
Compatible with all lamp types up to 250 W
LED indicator with locator function which can be activated in the app

Recommendations / Restrictions

To connect your switch, you first need to purchase and install a Living Now with Netatmo connected starter pack. To control it as a two-way switch, you need to pair one or more Living Now with Netatmowireless switches with it.

Products benefits

Installation

The Living Now with Netatmo connected switch is easily installed in place of an existing flush-mounting switch

Usage

Voice control of your lights via a voice assistant

Technical Characteristics

Assembly arrangement Basic element

Model Relay

Type of load Universal and LED Retrofit

Substation input Yes

Light value memory No

Applicable with button No

Applicable with movement sensor Yes

Applicable with presence indicator No

Applicable with time switch/timer Yes

Applicable with transmission button Yes

Applicable with infrared button No

Mounting method Flush-mounted

Material Plastic

Material quality Thermoplastic

Surface protection Untreated

Surface finishing Matt

Colour Other

RAL-number (similar) 7015

Transparent No

Nominal voltage 230 V

Frequency (Min-Max) 50-60 Hz

Rated current 2.2 A

Switch capacity (Min-Max) 0-500 W

Number of channels 1

Type of fastening Other

Min. depth of built-in installation box 40 mm

Compatible with Apple HomeKit Yes

Compatible with Google Assistant Yes

Compatible with Amazon Alexa Yes

IFTTT support available No

Width 22 mm

Height 45 mm

Depth 42 mm

Built-in depth 33 mm

degree of impact strength (IK) IK04

Degree of protection (IP) IP20

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Standby consumption 1 mA

Mandatory neutral Yes

Terminal marking indication Yes

Stress test conformity (1000V) No

Halogen free Yes

Antimicrobial treatment No

Connection type Screwed terminal

Number of terminals 4

Terminals capacity (Min-Max) 0.75-2.5 mm²

Cable section (Min-Max) 0.75-2.5 mm²

Label space/information surface No

Contains Batteries and/or Accumulator No

Connected object Yes

Operating method Zigbee

Application store for download App Store, Google Play Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Lighting management

Connected 2-way switch
