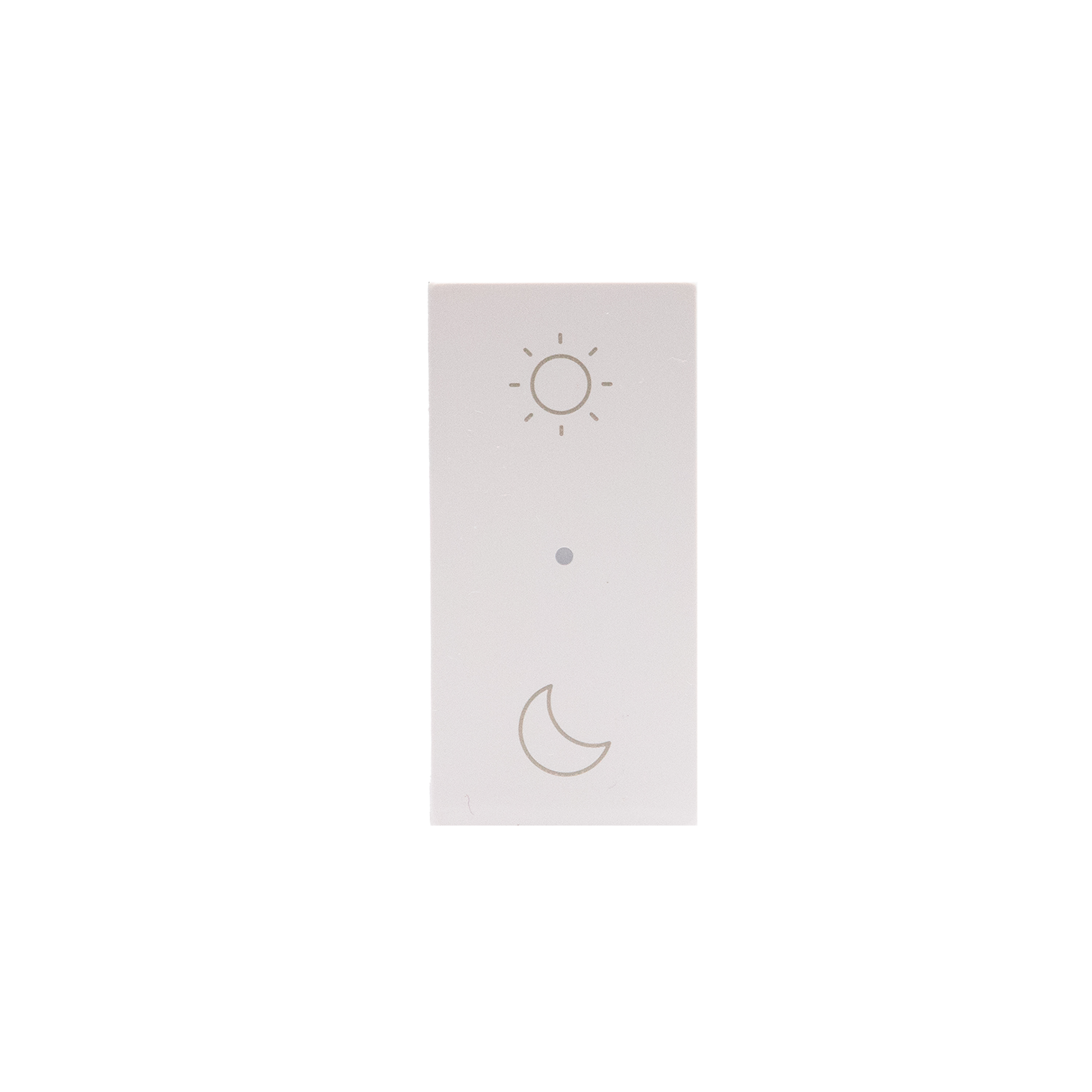

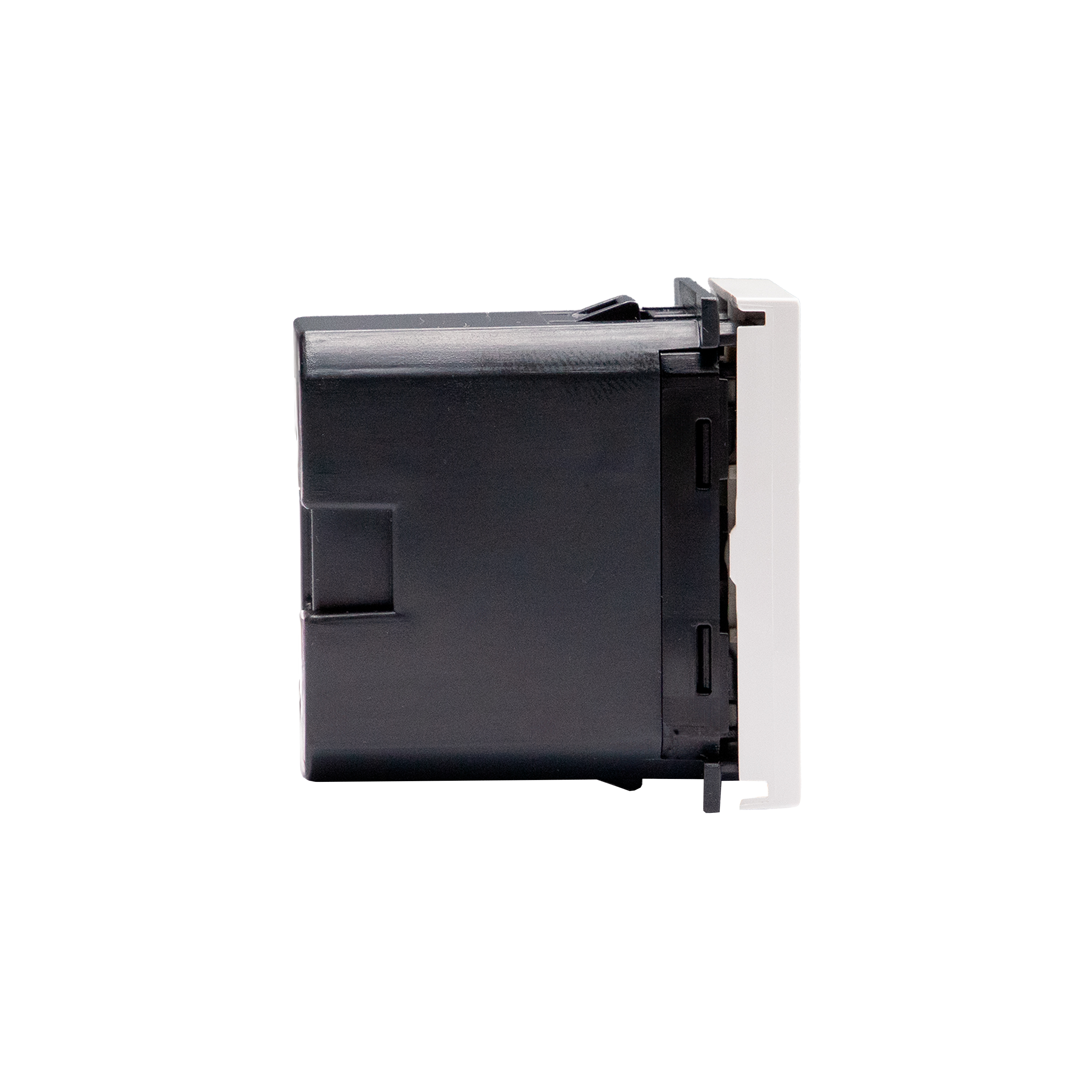

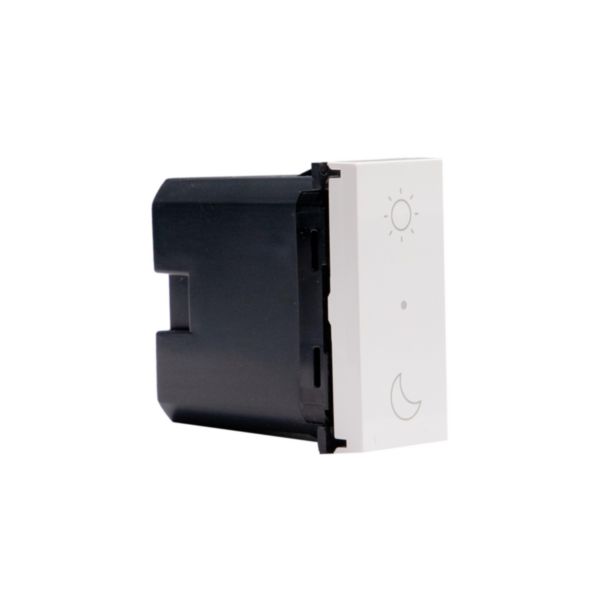

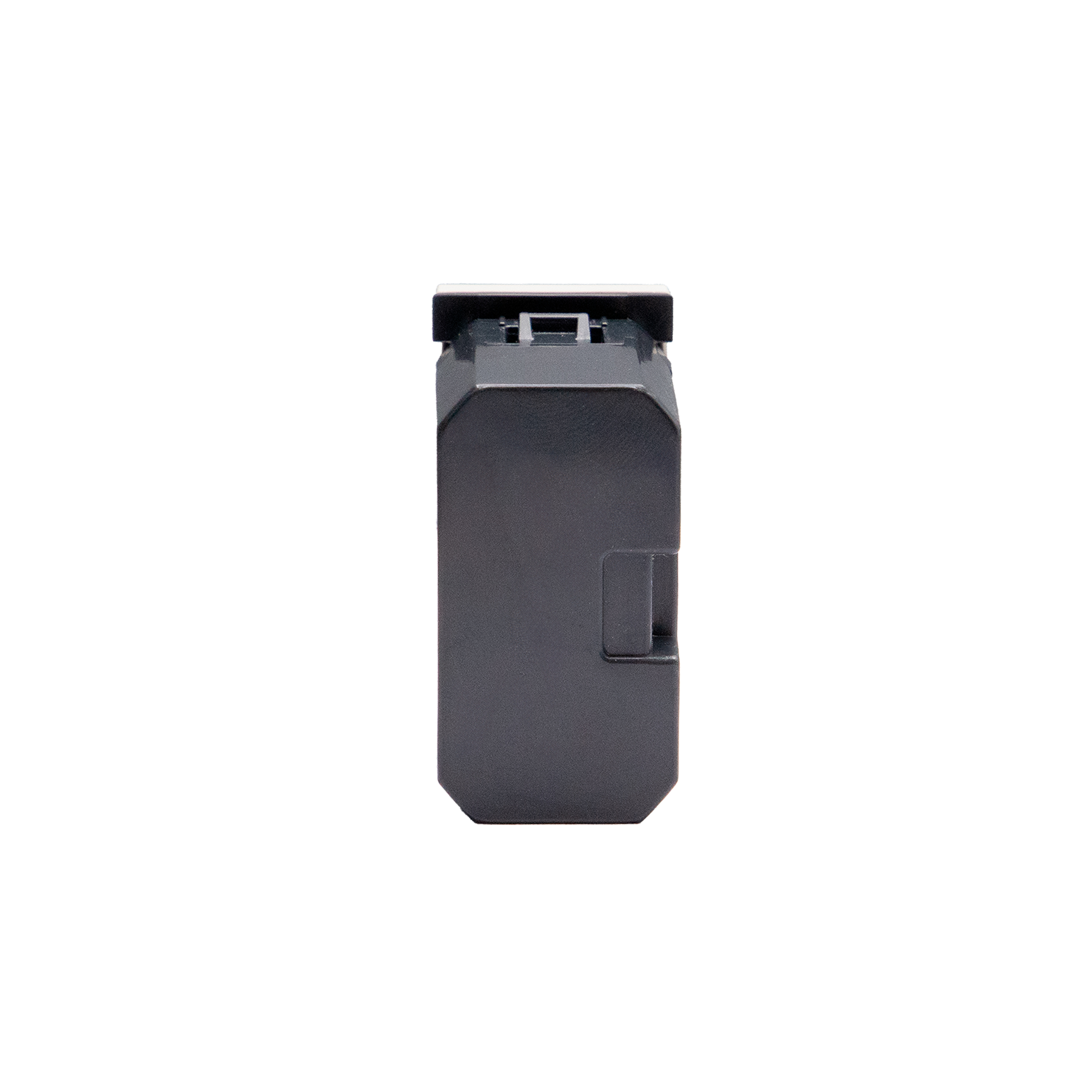

Scenario control equipped with 2 buttons for activating Wake Up / Sleep scenarios
BT-JW4574CWI
|
8005543715772
Description
With the Wake Up/Sleep wireless switch, choose which lights, roller shutters or electrical appliances you wish to control via the Wake Up and Sleep scenarios, and manage them with a single press on your wireless switch. 1 module, white
Product characteristics
- Wake Up/Sleep scenarios can be customized from the Home + Control app
- LED indicator with low battery warning
- 1 module
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- To add your Sleep/Wake Up wireless switch to your connected installation, you first need to purchase and install a MatixGO with Netatmo gateway, as well as one or more MatixGO with Netatmo connected switches, power outlets or lighting micromodules.
Products benefits
Installation
- The wireless switch has the same dimension of traditional 1module switch. It can be installed onto a flush-mounting box.
Usage
- Install the Sleep/Wake Up wireless switch next to your bed, and launch the Sleep scenario which you will have customized to switch off the lights and lower the roller shutters
Advantages
- Perfect aesthetic integration with the installed wiring devices
Technical Characteristics
Radio frequency
2400 MHz
Rolling code system
Yes
Code length (Bit)
128
Range
185 m
Number of commands
2
With manual radio transmitter
Yes
Flush-mounted radio transmitter
Yes
Surface mounted radio transmitter
No
With radio coding device
Yes
Degree of protection (IP)
IP40
Keyboard protection cover
No
Current supply
Battery
Width
22.5 mm
Height
45 mm
Depth
44 mm
Built-in depth
36 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
0 mA
Mandatory neutral
No
Stress test conformity (1000V)
No
Colour
White
RAL-number
9003
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Flush-mounted
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR2032
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
1
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
3 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Operating method
Zigbee
Application store for download
Google Play Store, App Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Lighting management
