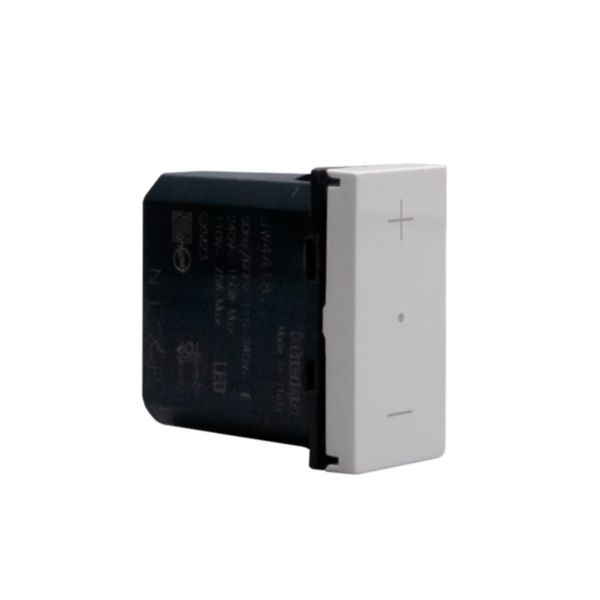

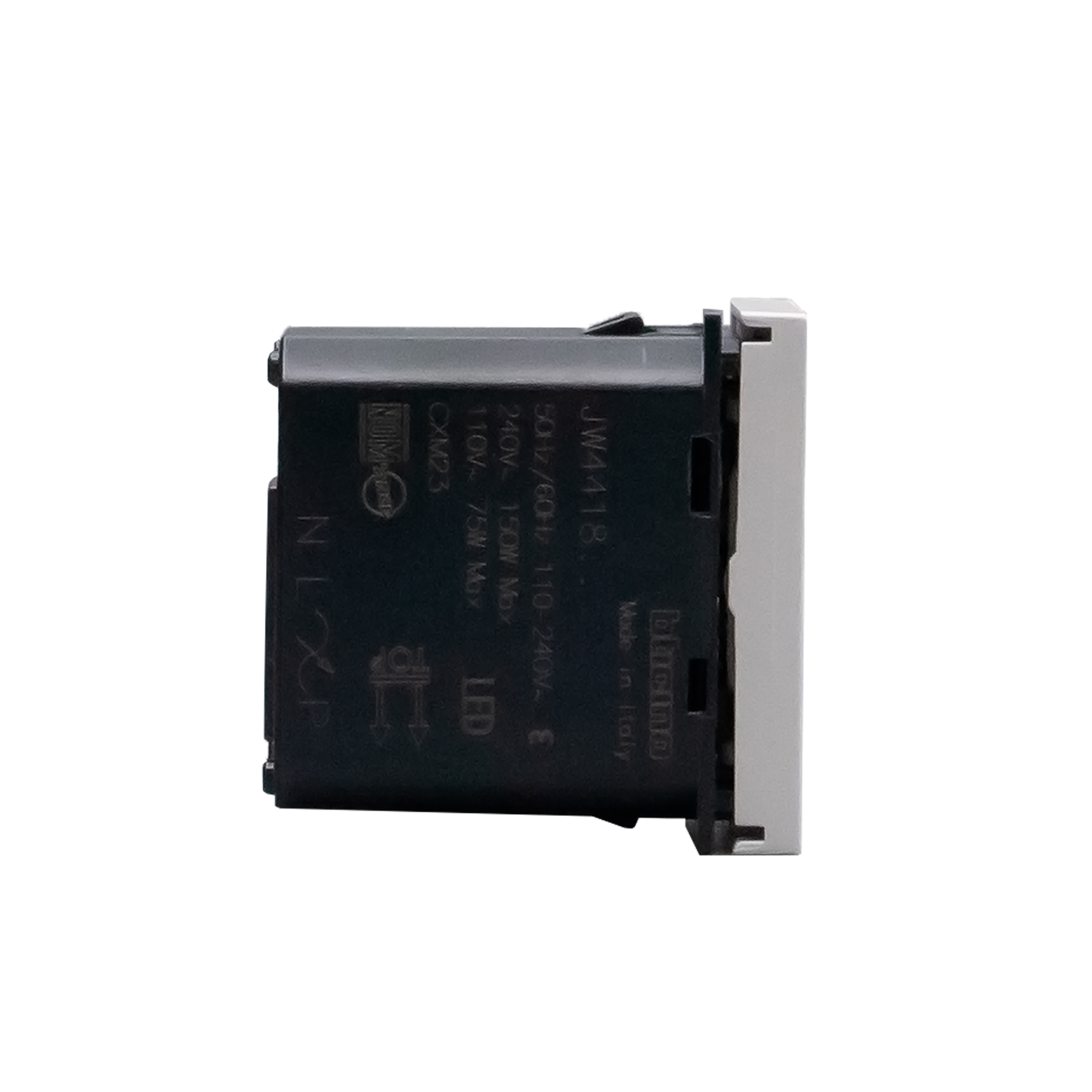

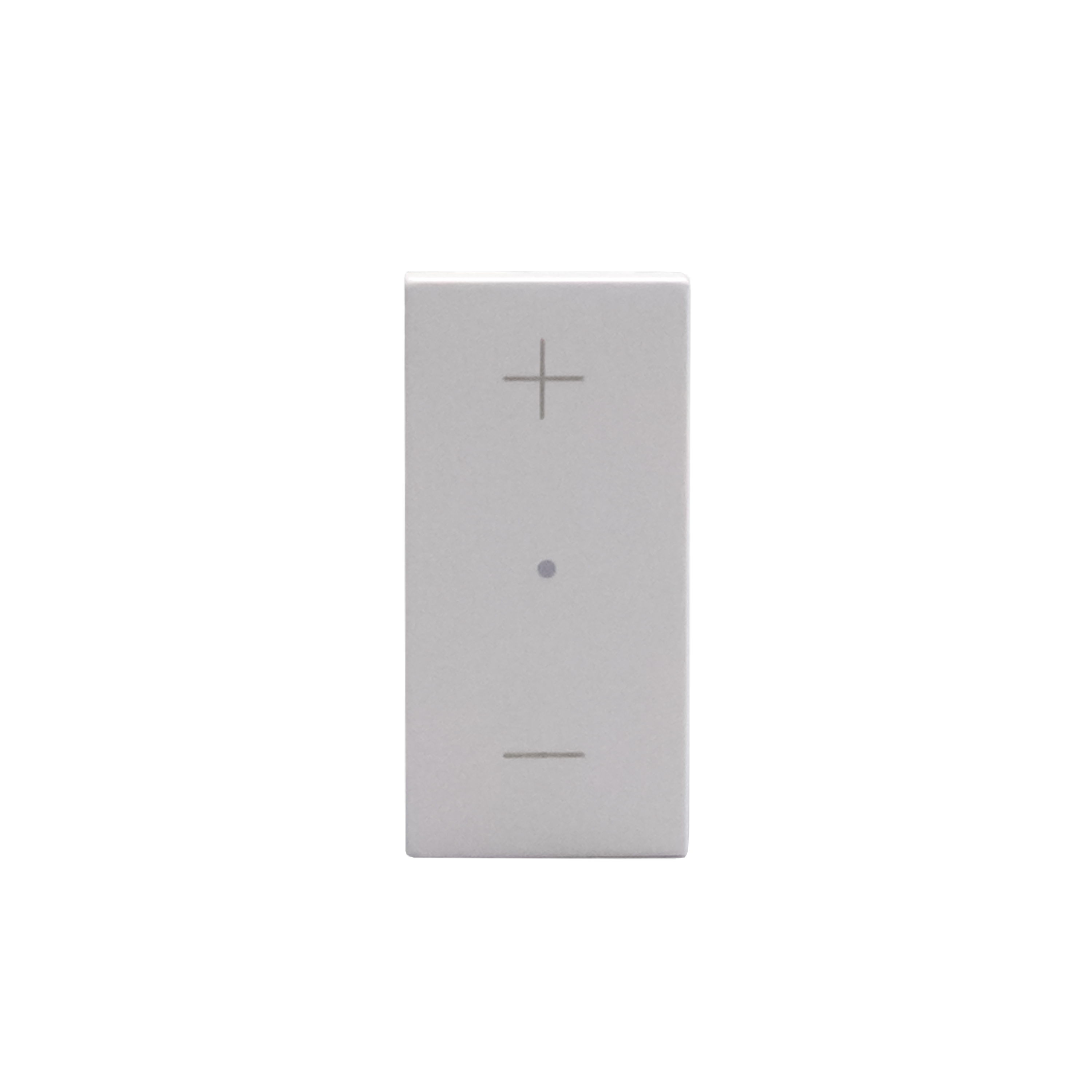

Universal Pushbutton Dimmer - with neutral, 3 wires

Name: Universal Pushbutton Dimmer - with neutral, 3 wires
Brand: BTicino
SKU: BT-JW4418
Availability: InStock

BT-JW4418 | 8005543736500

Universal Pushbutton Dimmer - with neutral, 3 wires. Can be associated with one or several push-buttons (non illuminated type). Each push-button able to perform the On/Off and dimming function. Memory level functtion: Lights come on again at the same lighting level as before they were last switch-off. Lower and upper thresholds setting. Indicator/locator function.For all types of lamps:- Dimmable LEDs and CFLs : 0 to 150 W (15 lamps max.)- Halogen, incandescent 230 V~ : 0 to 150 W- Halogen with ferromagnetic or electronic transformer : 0 to 150 VA. Depth 35 mm (with neutral). Standby consumption < 5 mW. - 1 module - White

Compare

Description

This universal light dimmer supports all "Dimmable" type bulbs on the market, LEDs, Halogens, Fluocompact, etc. It allows you to create a luminous atmosphere while reducing your energy consumption.

Product characteristics

Allows you to control Dimmable bulbs of the market, LEDs, halogen, compact fluorescent
Power : 150W max. Dimmable Leds/Fluocompact/Halogen
Settings : lighting threshold mini/maxi - indicator/Locator mode - Lighting state memory - Trailing/Leading mode
Color White
Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.

Recommendations / Restrictions

To facilitate installation and configuration, consult the leaflet. Indoor use only.

Products benefits

Installation

Easily replaces a switch with Neutral without wiring modification

Usage

Comfort and energy saving by controlling the lighting level of the room

Advantages

Universal dimmer. Compatibility with a wide range of "Dimmable" LED bulbs

Technical Characteristics

Assembly arrangement Basic element with central cover plate

Method of operation Push button

Number of modules (module system) 1

Number of units 1

App control via Bluetooth No

Dimming phase cut-on (leading edge) Yes

Dimming phase cut-off (trailing edge) Yes

Serial dimmer No

Type of load Universal and LED Retrofit

Substation input Yes

Light value memory Yes

Applicable with button Yes

Applicable with movement sensor No

Applicable with presence indicator No

Applicable with time switch/timer No

Applicable with transmission button No

Applicable with infrared button No

Min. brightness controllable Yes

Mounting method Flush-mounted

Type of fastening Click in mounting

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Surface protection Untreated

Surface finishing Matt

Colour White

RAL-number (similar) 9003

Transparent No

Suitable for degree of protection (IP) IP20

degree of impact strength (IK) IK04

Nominal voltage (Min-Max) 110-240 V

Frequency (Min-Max) 50-60 Hz

Control voltage (Min-Max) 110-240 V

Nominal power resistive load (Min-Max) 0-150 W

Nominal power inductive load (Min-Max) 0-150 VA

Nominal power capacitive load (Min-Max) 0-150 VA

Max. switching power LED 150 W

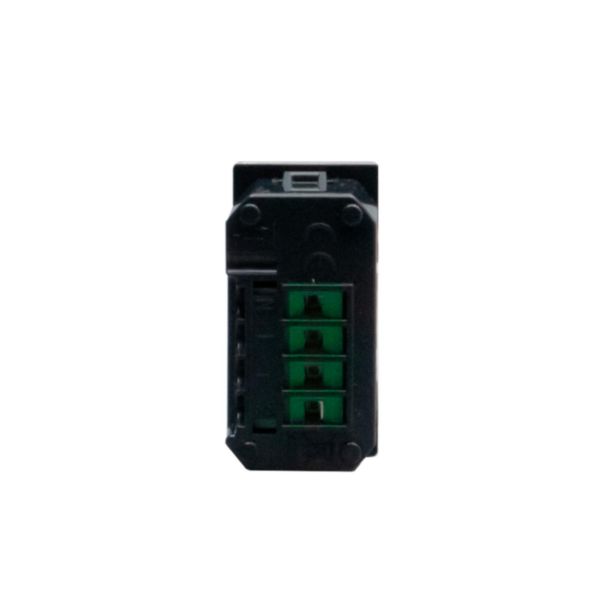

Connection type Screwed terminal

Cable section (Min-Max) 1.5-2.5 mm²

Device width 22.5 mm

Device height 45 mm

Device depth 45 mm

Min. depth of built-in installation box 47 mm

Compatible with Apple HomeKit No

Compatible with Google Assistant No

Compatible with Amazon Alexa No

IFTTT support available No

Built-in depth 37 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Voltage type AC

Mandatory neutral Yes

Terminal marking indication No

Stress test conformity (1000V) No

Antimicrobial treatment No

Terminals capacity (Min-Max) 1.5-2.5 mm²

Cable nature for connection Flexible or rigid

Documentation

Technical Sheet

IDP001721 | PDF (4.1 MB) | EN

Catalog Commercial Page

CAT_MTXGO | PDF (24.9 MB) | EN
