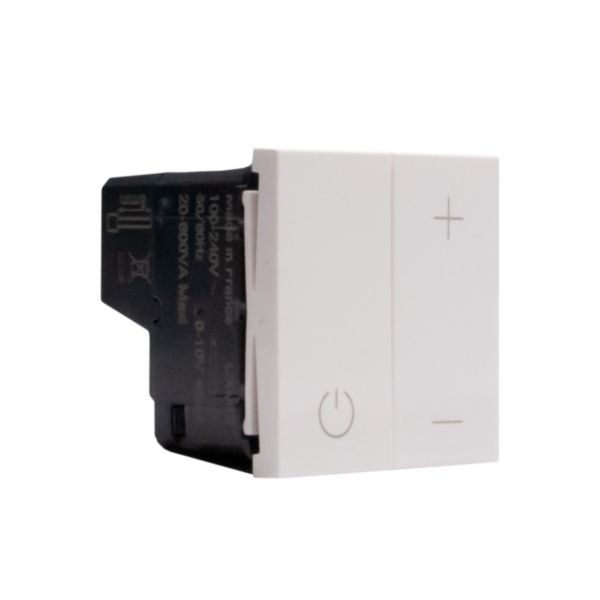

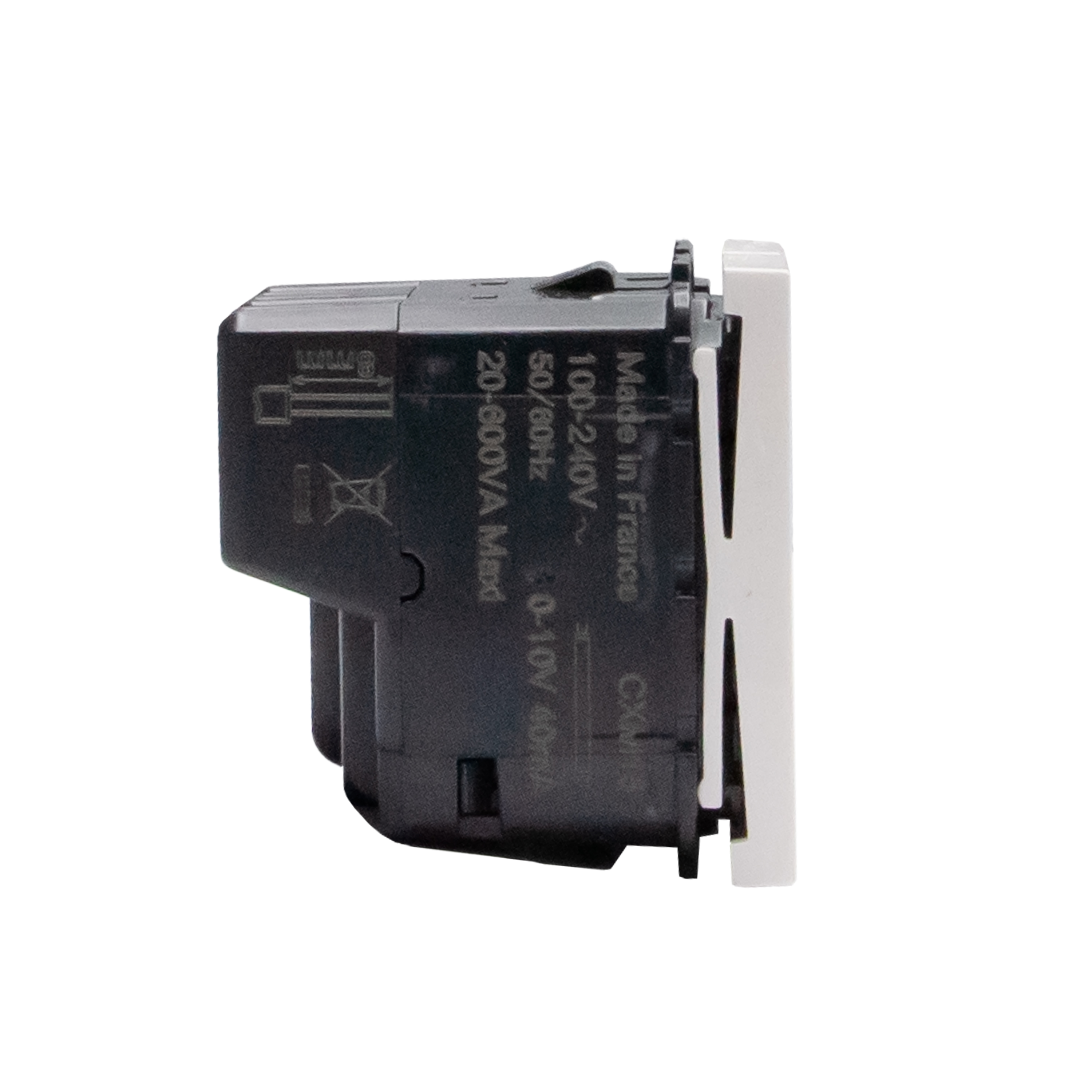

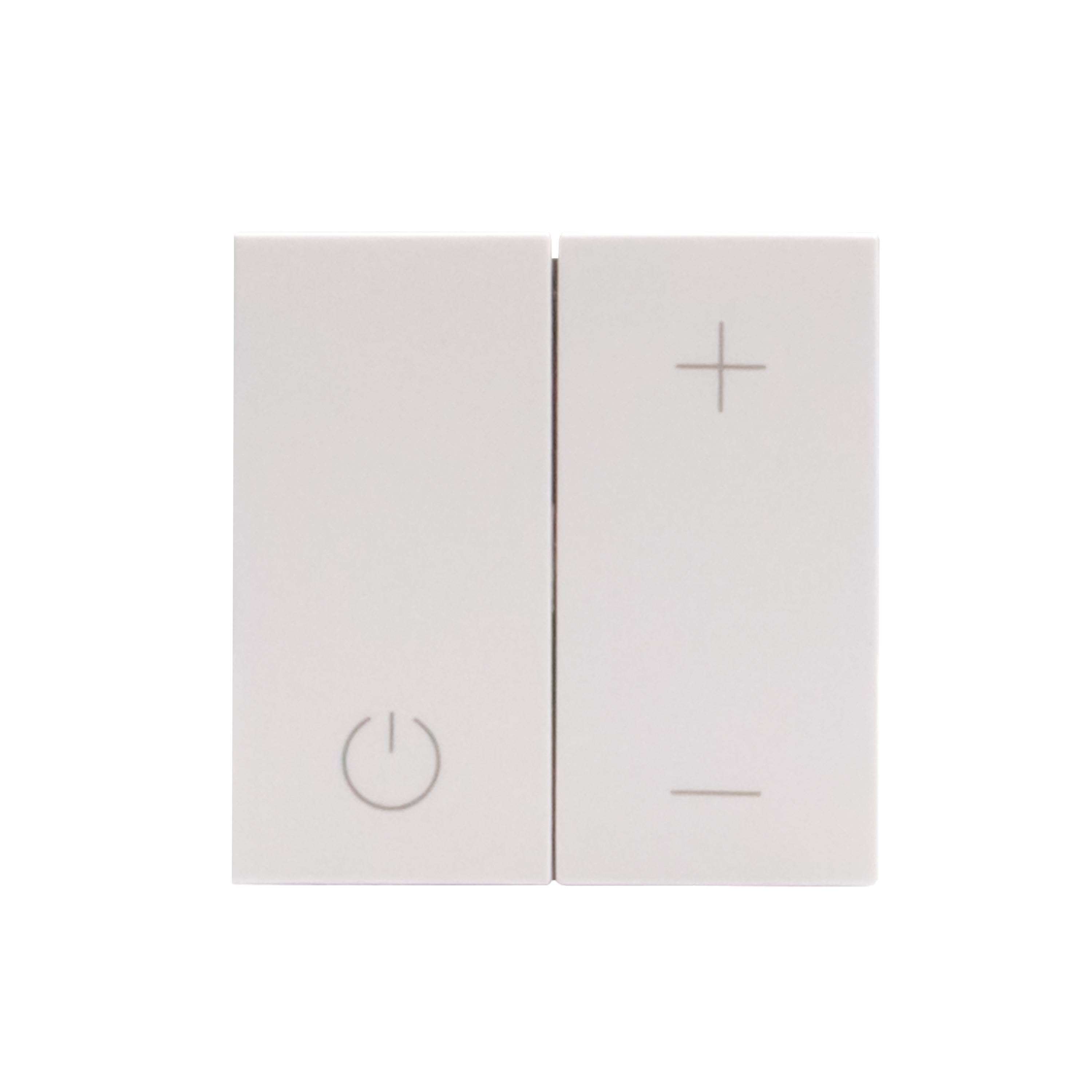

Pushbutton dimmer output 0 - 10 V for ballast
BT-JW4410
|
8005543719695
Description
The MatixGO dimmer can reduce or increase the intensity of a light load to give a more intimate or luminous atmosphere to the environment. 1 module, white
Product characteristics
- Light intensity memory function: the light turns on at the same light intensity as when it was turned off.
- Screw and plate terminals
- 1 module
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- It can be associated with one or more push buttons, allowing to activate / deactivate and dim the load. Dimmer without neutral to allow Retrofit installations.
Usage
- The ideal solution to adapt the light intensity of an environment to your needs.
Advantages
- Suitable for all LED light loads included
Technical Characteristics
Assembly arrangement
Basic element with central cover plate
Method of operation
Push button
Number of modules (module system)
2
Number of units
1
App control via Bluetooth
No
Dimming phase cut-on (leading edge)
No
Dimming phase cut-off (trailing edge)
No
Serial dimmer
Yes
Type of load
Electronic ballast 1-10 V
Substation input
No
Light value memory
No
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Min. brightness controllable
Yes
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Nominal voltage (Min-Max)
100-240 V
Frequency (Min-Max)
50-60 Hz
Control voltage (Min-Max)
0-10 V

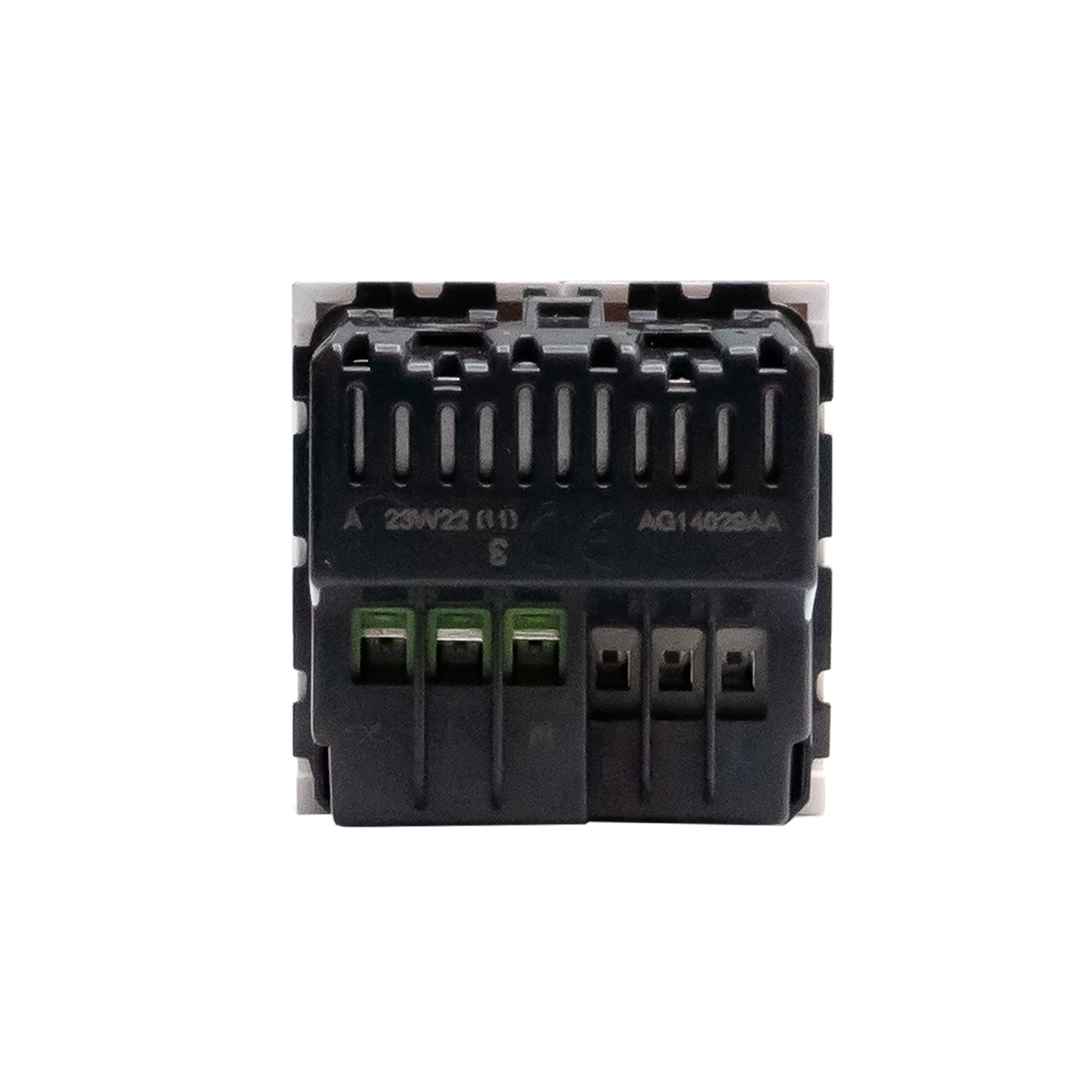

Connection type
Screwed terminal
Cable section (Min-Max)
1.5-2.5 mm²
Device width
45 mm
Device height
45 mm
Device depth
42 mm
Min. depth of built-in installation box
44 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
34 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Mandatory neutral
Yes
Terminal marking indication
No
Stress test conformity (1000V)
No
Antimicrobial treatment
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
