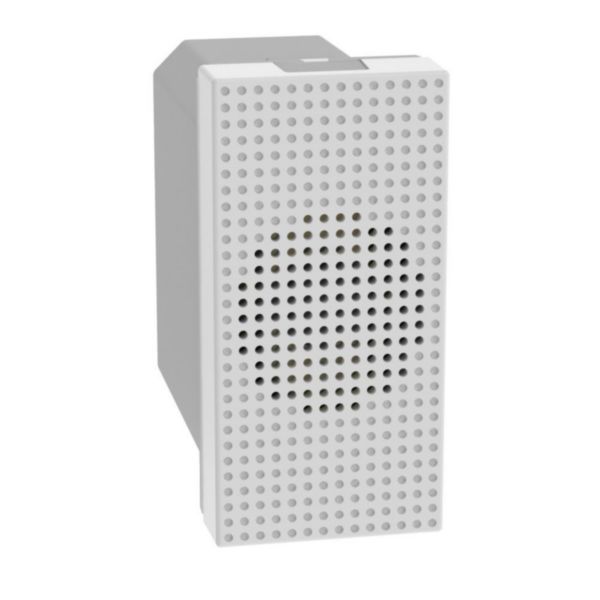

Buzzer 12 Va.c. - 5VA - 80 dB
BT-JW4356V12
|
8005543715284
Description
The buzzer is an acoustic signal alarm inside the house (for example, it is activated by the pull-cord pushbutton of the bathroom). 1 module, white
Product characteristics
- Allows the acoustic signaling called from a room inside the house
- Power supply 12 Va.c. - 12 VA - 80 dB
- 1 module
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- To be used for acoustic signals inside the house (pull button in the bathroom).
Advantages
- It is coordinated with the MatixGO aesthetic
Technical Characteristics
Type of current
AC
Electricity consumption
5 A
Degree of protection (IP)
IP20
Loudness
80 dB
Housing material
Plastic
Housing material quality
Other
Surface protection housing
Untreated
Housing colour
Grey
Type of tone
Continuous tone
Mounting method
Built-in
Built-in transformer
Yes
Width
22.5 mm
Height
45 mm
Depth
43 mm
Built-in depth
35 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
50-60 Hz
RAL-number
9003
Halogen free
Yes
Antimicrobial treatment
No
Connection type
Screwed terminal
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Loudness setting
Yes
