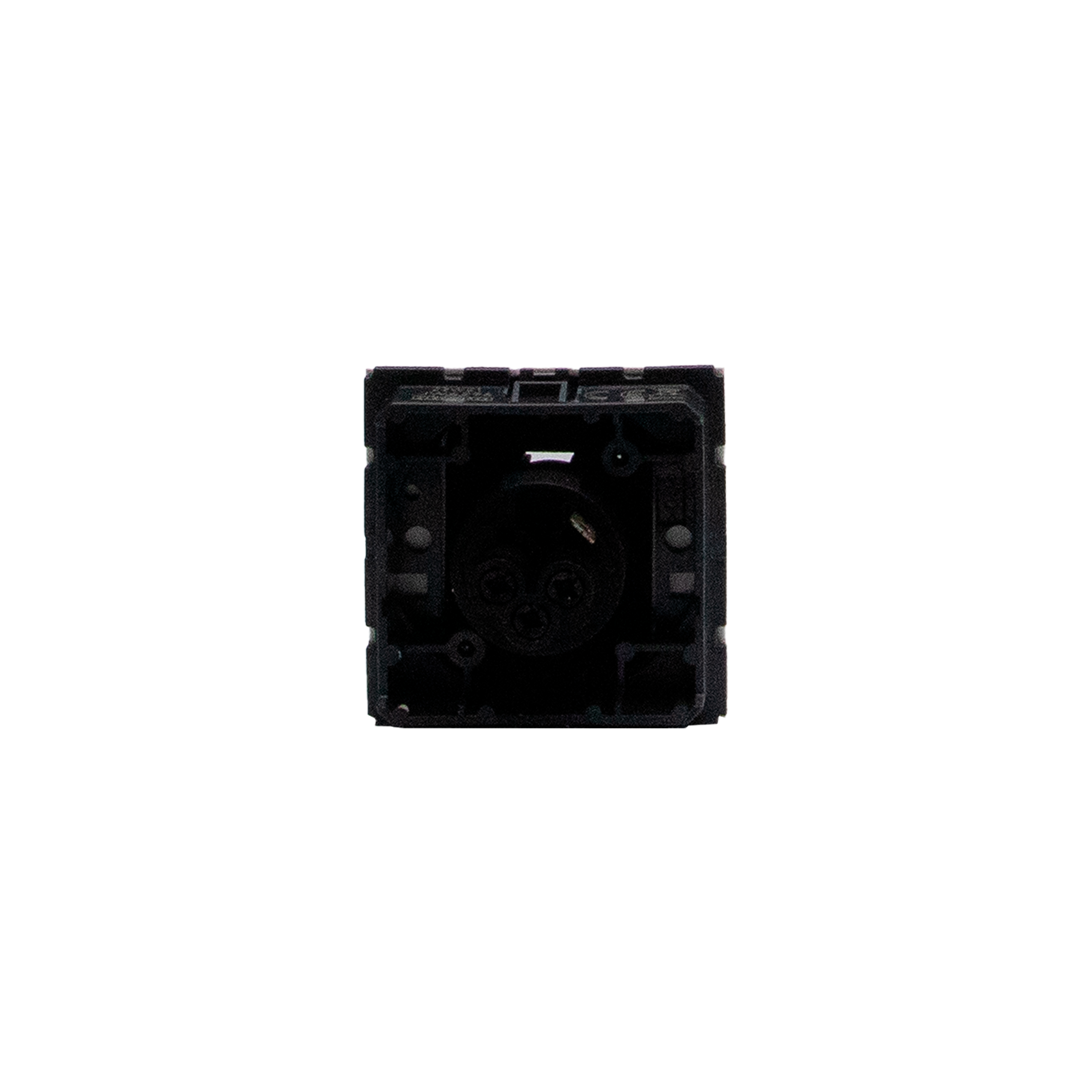

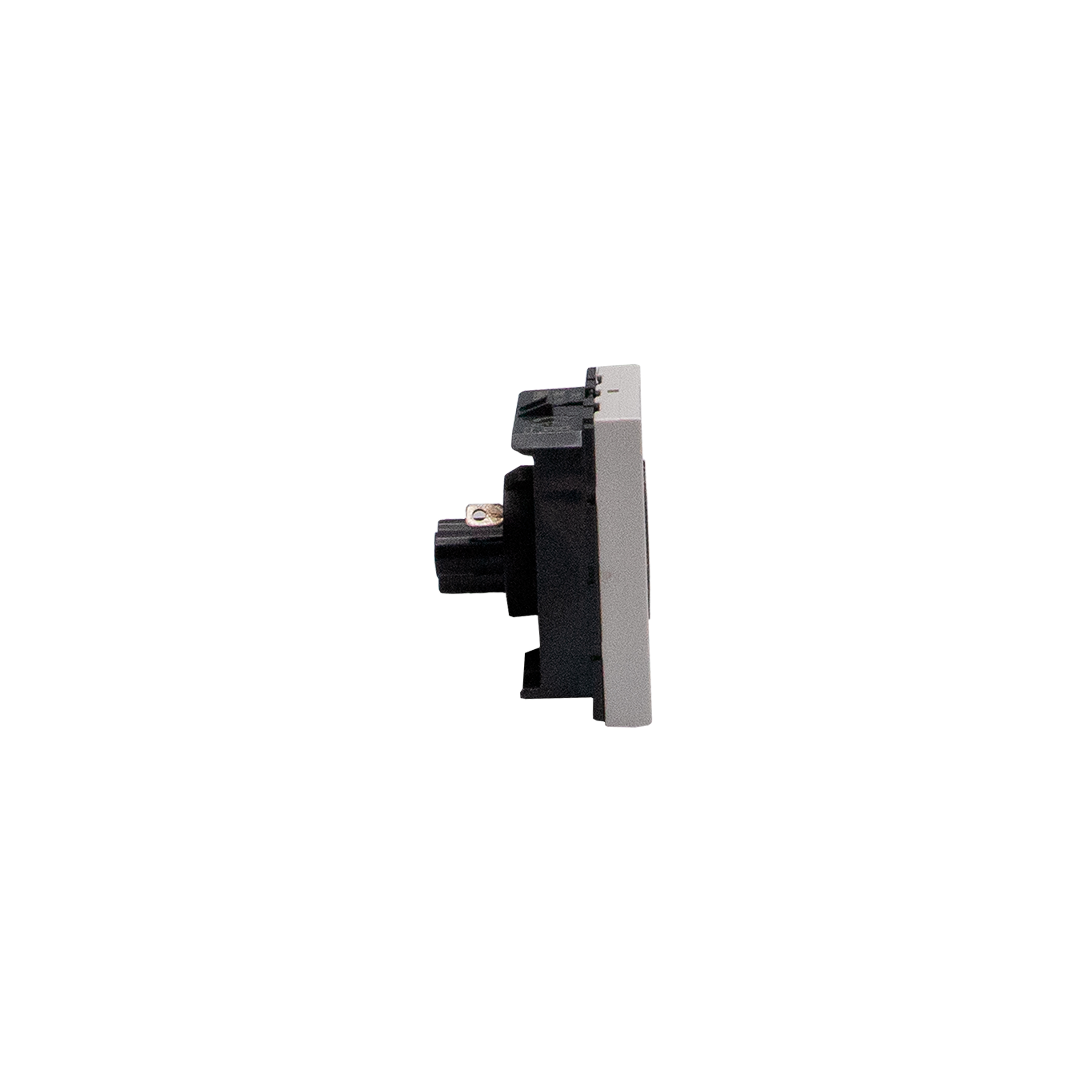

Audio connector - XLR 3 pin - male
BT-JW4296
|
8005543714676
Description
This connector is ideal for applications in recording studios, conference rooms and environments where a high-quality audio connection is required. 2 modules, white
Product characteristics
- XLR 3-pin male
- 2 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Designed for integration into BTicino's MatixGO series, ensuring easy installation and a uniform appearance
Usage
- Designed for integration into professional audio systems.
Advantages
- It is coordinated with the MatixGO aesthetic
Technical Characteristics
Assembly arrangement
Basic element with central cover plate
Utilization
XLR
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Imprintable label
Without indication field
With imprint
No
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Antimicrobial treatment
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Black
RAL-number (similar)
9017
Transparent
No
Type of fastening
Engage (snap)
Number of modules (module system)
2
Suitable for number of connectors
1
Shielded buses
No
Shielded housing
No
Luster terminal
No
Suitable for degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
45 mm
Min. depth of built-in installation box
40 mm
Built-in depth
23 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
