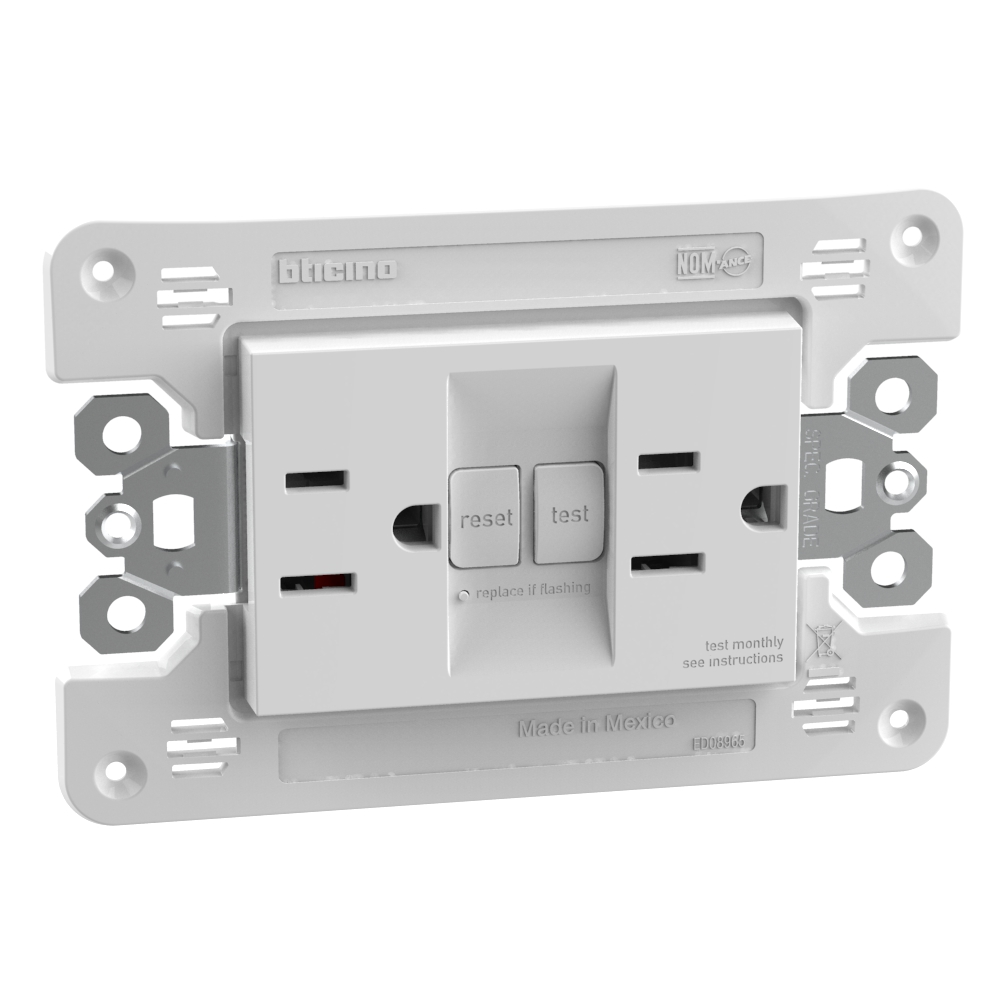

American standard socket outlets. 2 P+E 15 A 127 VA GFCI
BT-JW4188GFG6
Description
This American standard socket allows the use of US standard plugs 2P+E 16 A giving a protection from electrical shocks thanks t its differential switch integrate - 3 modules, color white
Product characteristics
- Shielded protection shutters
- American standard 2 P+E 15 A 127 VA GFCI socket
- 3 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- MatixGO sockets are provided with contact protection ensuring greater safety at home: these protections shield from accidental electrical contacts in the absence of a plug.
Advantages
- High technical performance
Technical Characteristics
Model
US/CA (NEMA 5-15) (type B)
Concurrently switching neutral conductor
No
Protective contact
Other
Number of active contacts (round)
0
Number of active contacts (flat)
4
Number of active contacts (square)
0
Assembly arrangement
Other
With complemantary luminous signal
No
Number of ports USB-A
0
Number of ports USB-C
0
Number of socket outlets
2
Socket outlets phase-separated
No
Number of modules (module system)
3
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Antimicrobial treatment
No
With loop through function
Yes
Number of loop throughs
1
With on/off switch
No
Colour of switch operator
White
Rotated central insert
No
Nominal current
15 A
Nominal voltage
127 V
Frequency (Min-Max)
50-60 Hz
Degree of protection (IP), connected plug
IP20
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
111 mm
Device height
74 mm
Device depth
38.5 mm
Min. depth of built-in installation box
39 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Compliant with UK Building Regulations Part M
No
Built-in depth
29 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
Terminal marking indication
No
Prewired
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Cable support
Screw cable clamp
Connected object
No
Application store for download
Not applicable
Programming way
Not applicable
With voice command
No
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
No
Product use function
Energy distribution
