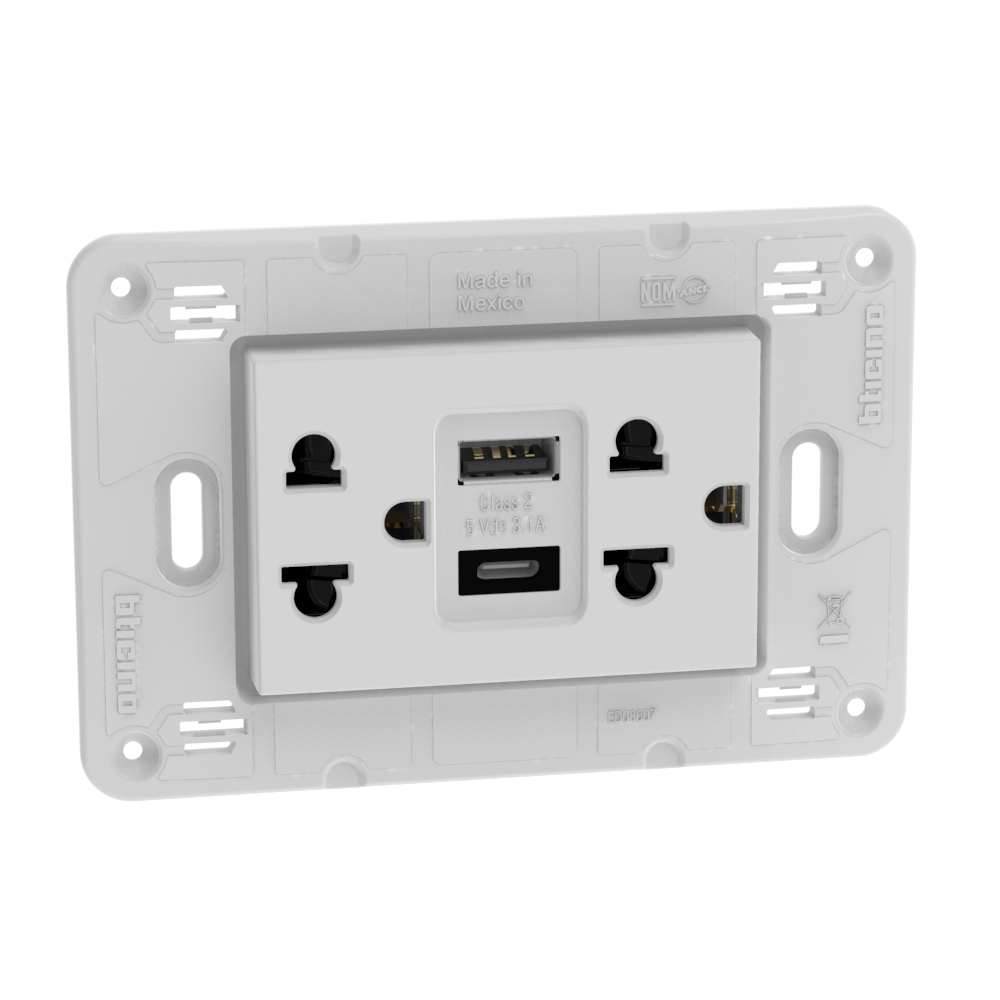

Euro american standard universal duplex socket 2 P+E 16 A 127/250 VA
BT-JW4185AC
Description
This function allows to connect an electrical or electronic device to the power outlet and simultaneously to charge an electronic terminal (mobile,tablet,camera) on the USB output. Equipped with 1 USB socket type A and one USB socket type C
Product characteristics
- EU-US Standard duplex socket 2P + E 16A, 250 V + 2 USB (1 Type A + 1 type C) charger with 5 Vd.c. voltage for fast charging of single devices up to 3,000 mA or simultaneous charging of two devices up to 1,500 mA
- Shielded protection shutters
- 3 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Monoblock complete product ready-to-install
Usage
- Two in One product: Power outlet, fitted with safety shutters to maximize child protection + fast charging of USB devices
Advantages
- The pre-cabling of this socket combines ease of installation and time savings during installation: no need to wire all the sockets; a single wiring is sufficient.
- Very compact product which integrates 4 functions in 3 modules
Technical Characteristics
Model
Multi-standard socket
Concurrently switching neutral conductor
No
Protective contact
Other
Number of active contacts (round)
4
Number of active contacts (flat)
4
Number of active contacts (square)
0
Assembly arrangement
Basic element with central cover plate
With complemantary luminous signal
No
Number of ports USB-A
1
Number of ports USB-C
1
Max. current rating of USB power supply
0.25 A
Number of socket outlets
2
Socket outlets phase-separated
No
Number of modules (module system)
3
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Antimicrobial treatment
No
With loop through function
Yes
Number of loop throughs
1
With on/off switch
No
Colour of switch operator
White
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency (Min-Max)
50-60 Hz
Degree of protection (IP), connected plug
IP20
Rated fault current
0.25 mA
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
111 mm
Device height
74 mm
Device depth
45 mm
Min. depth of built-in installation box
45 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Compliant with UK Building Regulations Part M
No
Built-in depth
35 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
USB Output Power
15 W
Terminal marking indication
No
Prewired
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Cable support
Screw cable clamp
Connected object
No
Application store for download
Not applicable
Programming way
Not applicable
With voice command
No
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
No
Product use function
Energy distribution
