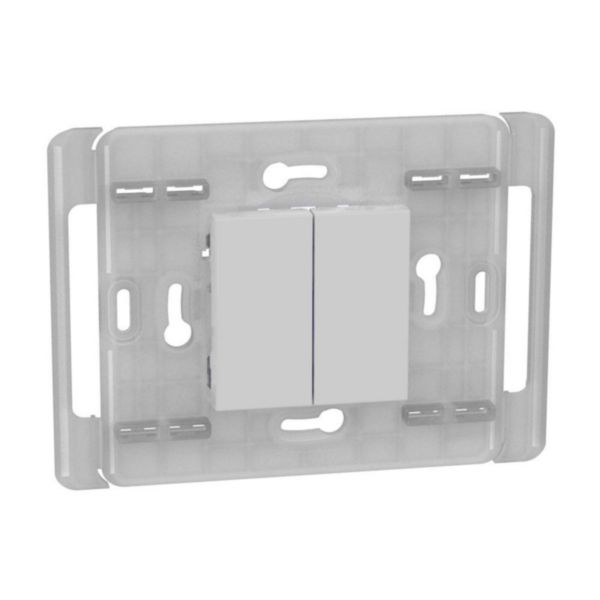

Double wireless light switch No-Battery
BT-JW4003CWDG
|
8005543762868
Description
The MatixGO with Netatmo battery less/wireless double light switch can be used to control two separate lighting circuits. It is also possible to create two switched power outlets to control the home appliances connected to them.
Product characteristics
- Quick and easy pairing with wired products (connected switch with dimmer option, connected power outlet, connected micromodule, or connected cable outlet)
- 2.4 GHz radio technology
- 1 module
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- To add your battery less/wireless double light switch to your connected installation, you first need to purchase and install a MatixGO with Netatmo connected starter pack, as well as one or more MatixGO with Netatmo connected switches, power outlets or lighting micromodules.
Products benefits
Installation
- Extra-slim, the double battery less/wireless light switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box.
Usage
- Pair up to 40 dimmer switches, lighting micromodules or power outlets (20 per double switch button) and control them all with a single press on the battery less/wireless switch.
Advantages
- High technical performance
Technical Characteristics
Radio frequency
2400 MHz
Rolling code system
No
Code length (Bit)
128
Range
185 m
Number of commands
2
With manual radio transmitter
Yes
Flush-mounted radio transmitter
No
Surface mounted radio transmitter
Yes
With radio coding device
Yes
Degree of protection (IP)
IP40
Keyboard protection cover
No
Current supply
Other
Width
22.5 mm
Height
45 mm
Depth
44 mm
Built-in depth
0 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
0 mA
Mandatory neutral
No
Stress test conformity (1000V)
No
Colour
White
RAL-number
9003
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Surface mounted
Contains Batteries and/or Accumulator
No
Connected object
Yes
Operating method
Zigbee
Application store for download
Google Play Store, App Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Lighting management
Documentation
1 documents
Catalog Commercial Page
CAT_MTXGO | PDF (24.9 MB) | EN
