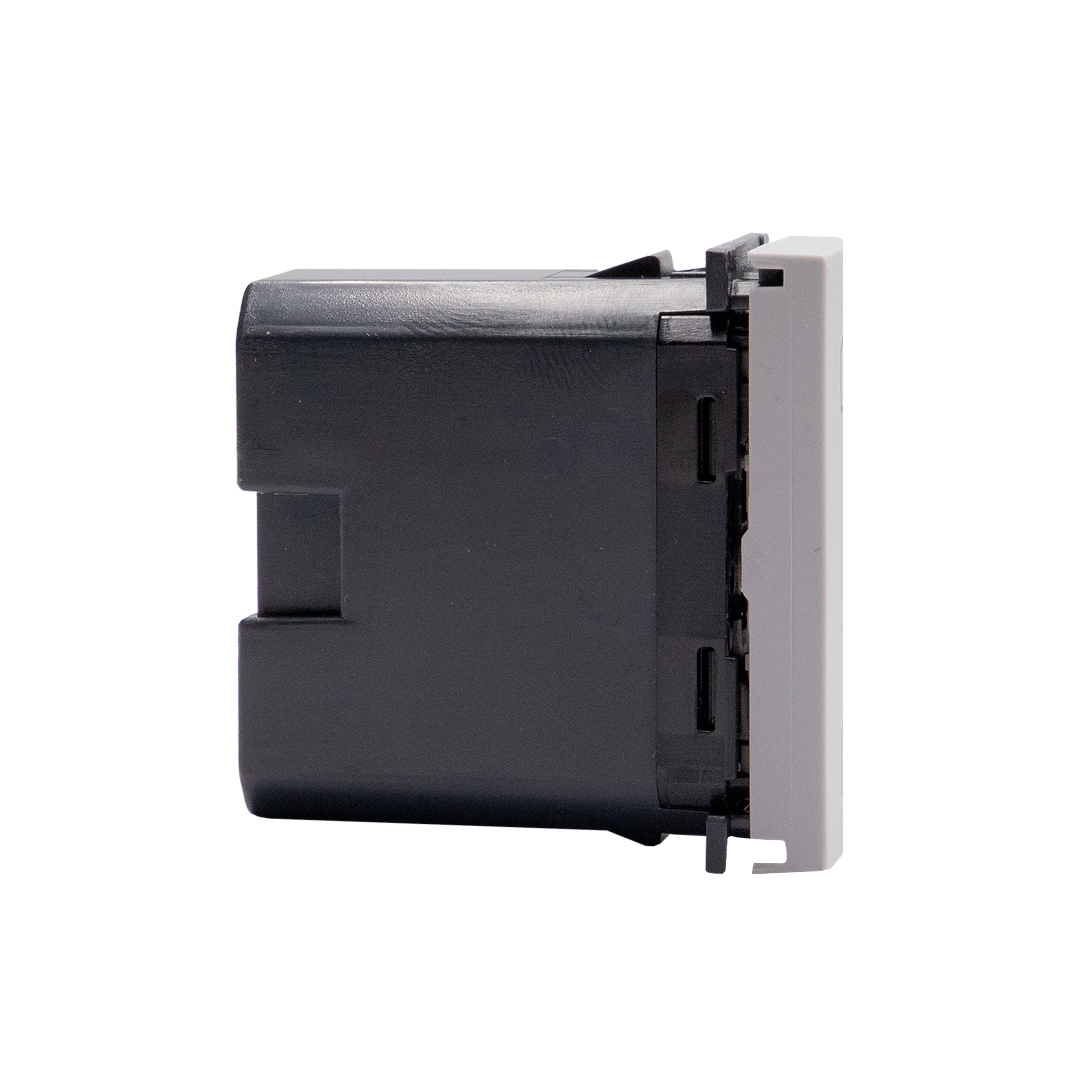

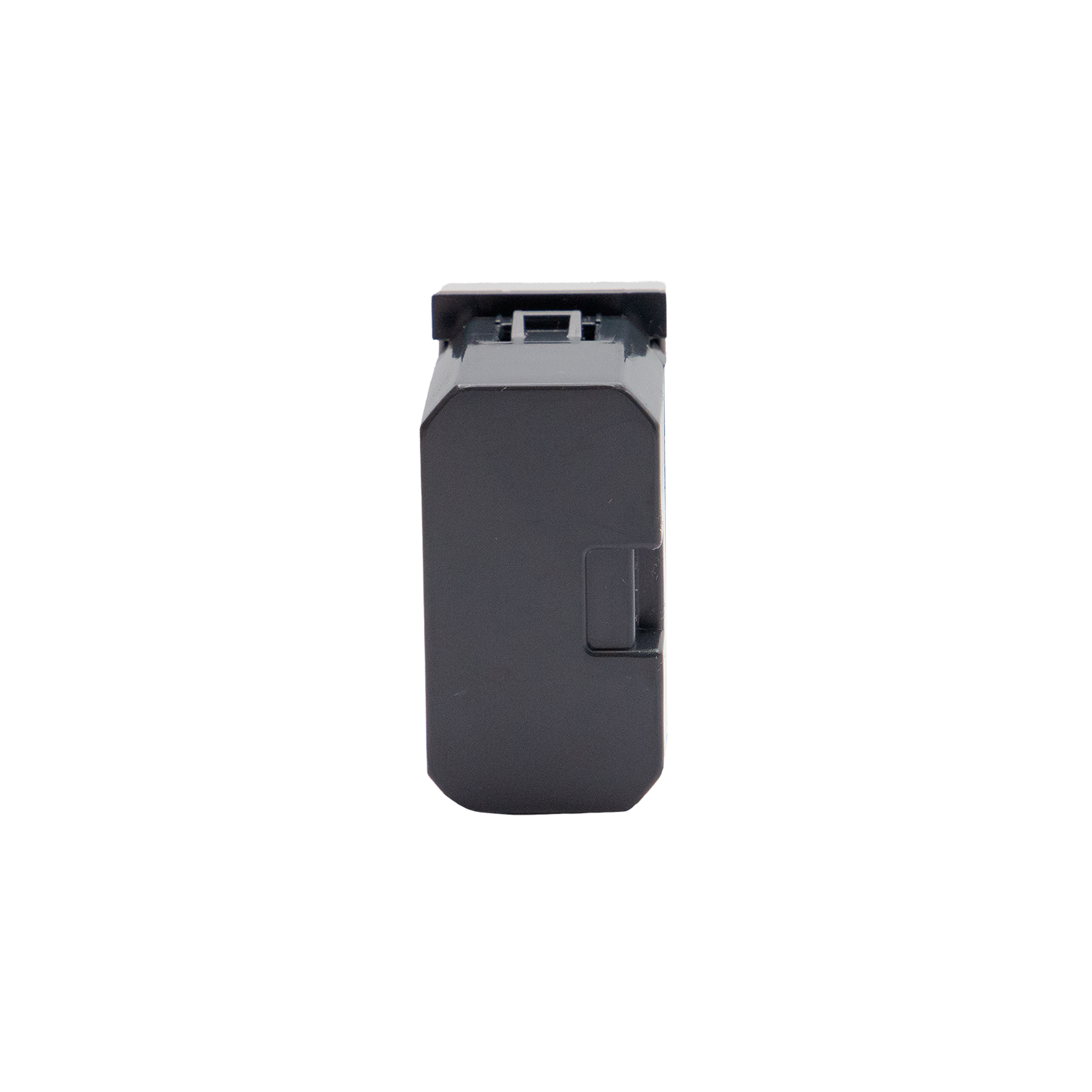

Name: Home / Away wireless switch.
Brand: BTicino
SKU: BT-JG4570CWI
Availability: InStock

Description

The Home/Away wireless master switch allows you to add an extra Home/Away wireless switch. In the Home + Control app, choose which lights, roller shutters or electrical appliances you wish to control via the Home and Away scenarios,

Product characteristics

Predefined Home/Away scenarios which can be customized from the Home + Control app. Manage them with a single press on your wireless master switch
LED indicator with low battery warning
1 module
Color Grey
Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.

Recommendations / Restrictions

To add your Home/Away wireless master switch to your connected installation, you first need to purchase and install a MatixGO with Netatmo gateway, as well as one or more MatixGO with Netatmo connected switches, power outlets or lighting micromodules.

Products benefits

Installation

The wireless switch has the same dimension of traditional 1module switch. It can be installed onto a flush-mounting box.

Usage

The Home/Away wireless master switch complements the one included in the MatixGO with Netatmo gateway. You can therefore place each of these switches at different entrances to your home

Advantages

Perfect aesthetic integration with the installed wiring devices

Technical Characteristics

Radio frequency 2400 MHz

Rolling code system Yes

Code length (Bit) 128

Range 185 m

Number of commands 2

With manual radio transmitter Yes

Flush-mounted radio transmitter Yes

Surface mounted radio transmitter No

With radio coding device Yes

Degree of protection (IP) IP40

Keyboard protection cover No

Current supply Battery

Width 22.5 mm

Height 45 mm

Depth 44 mm

Built-in depth 36 mm

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Standby consumption 0 mA

Mandatory neutral No

Stress test conformity (1000V) No

Colour Grey

RAL-number 7035

Halogen free Yes

Antimicrobial treatment No

Mounting method Flush-mounted

Contains Batteries and/or Accumulator Yes

IEC code (Pack1) CR2032

Battery ou Accumulator (Pack1) Battery (not rechargeable)

Element Composition (Pack1) Lithium (battery or accumulator)

Number of Pack 1 1

Number of Single Element (Pack1) 1

Single Element weight (Pack1) 3 g

Pack1 Location Product includes a battery

Regulation Type (Pack1) P : Portable (Standard format)

Connected object Yes

Operating method Zigbee

Application store for download Google Play Store, App Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Lighting management

Home / Away wireless switch.
