MatixGO BTicino

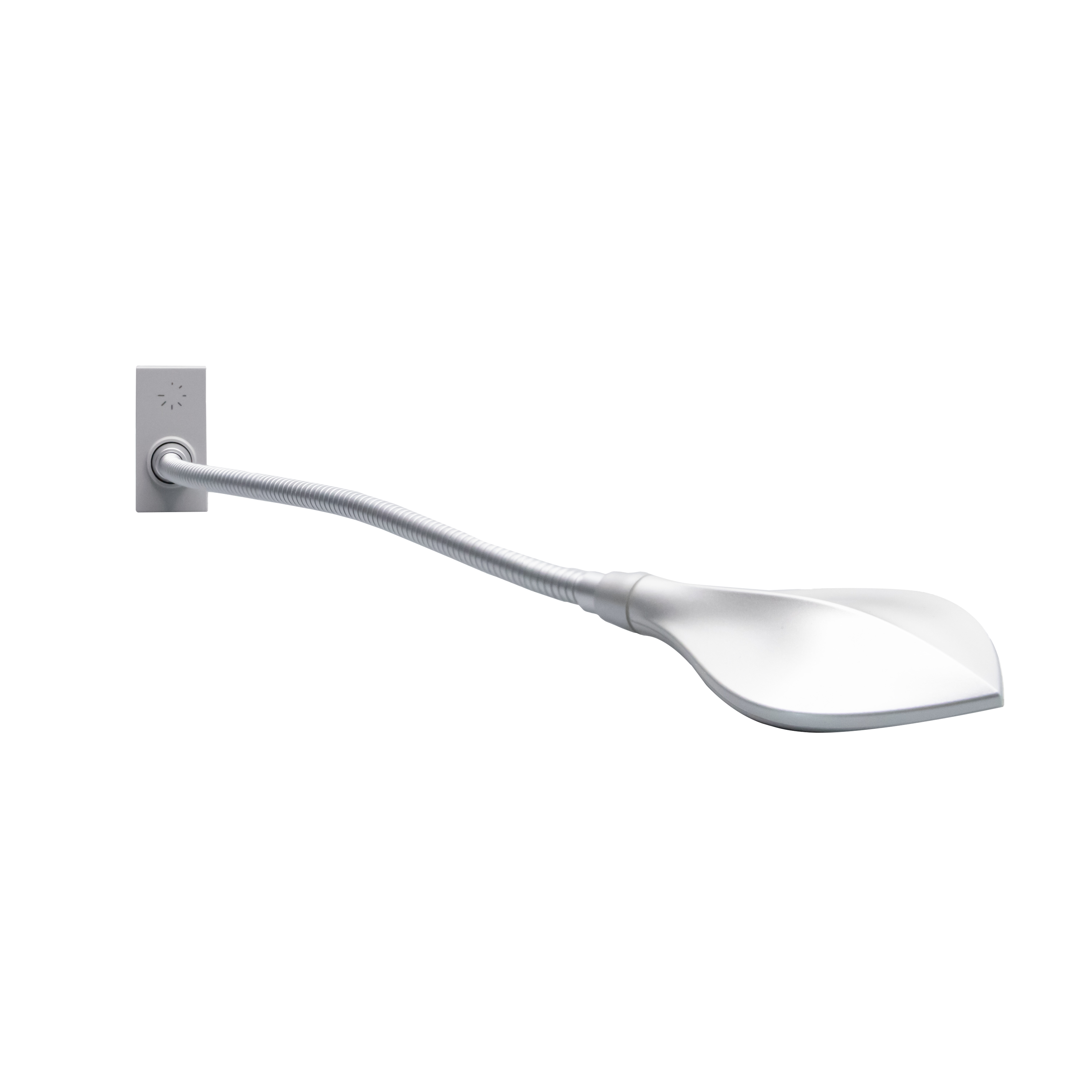

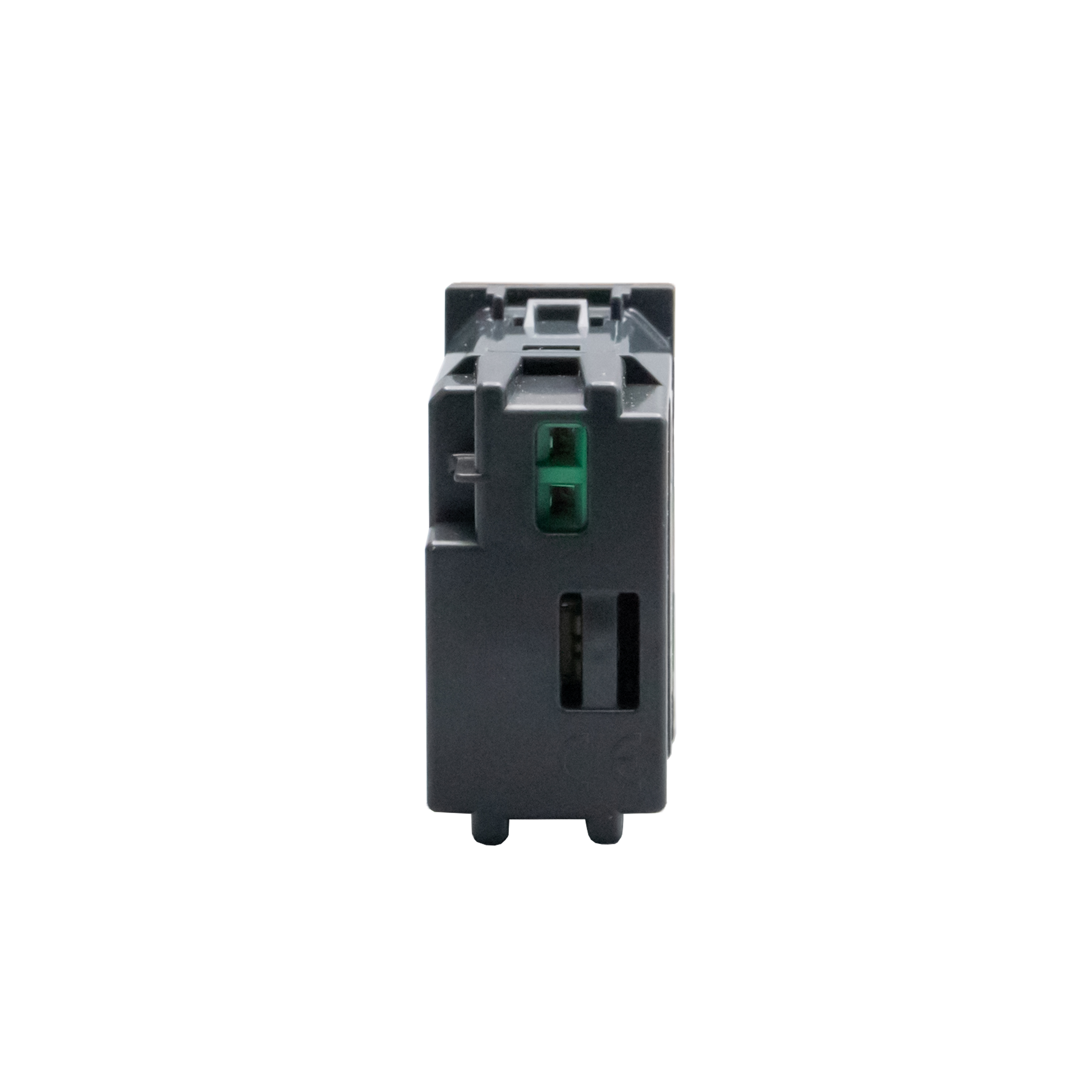

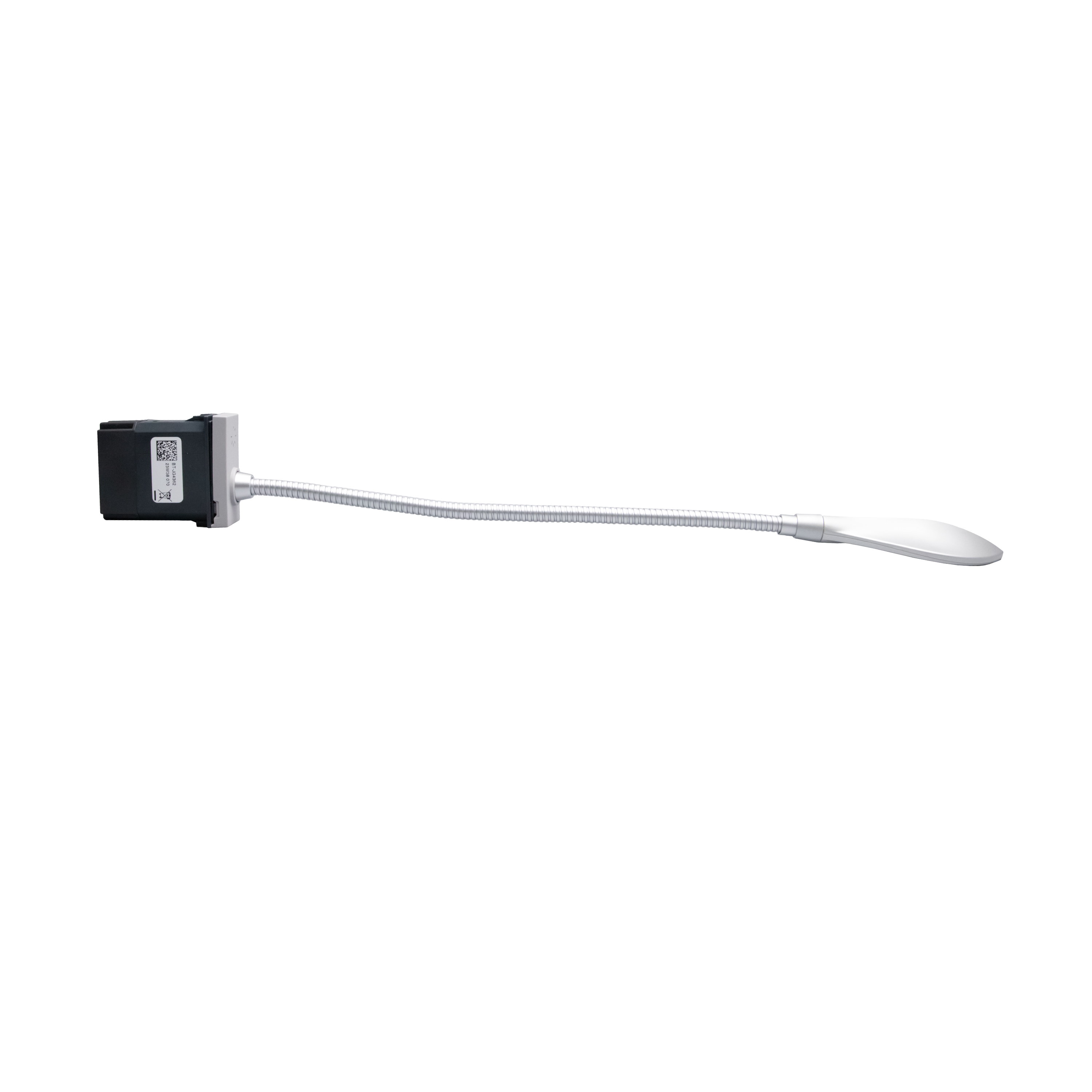

Reading lamp dimmable

BT-JG4362 | 8005543718179
Reading lamp dimmable - installing the head of the bed allowing you to have a directional light. It is equipped with a flexible arm (lenght 31 cm) that allows you to orient the illuminating ends. The light intensity can be dimmed by pressing and holding the On / Off integrated command. It can also be connected to a remote control and, if necessary, you can disable the built-in command with a 30 sec pressure - LED light - Consumption 3 W - Luminous Flux 110 lumens (equivalent to 15 W incandescent) - Duration 40.000 hours - 1 module (recessed) - Grey
Description

Reading lamp dimmable allows you to have a directional light. It is equipped with a flexible arm (length 31 cm) to orient the illuminating end. 1 module, grey

Product characteristics
  • Led, Dimmable reading lamp. Consumption 3W - Luminous Flux 110 lumens (equivalent to 15W incandescent)
  • The light intensity can be dimmed by pressing and holding the On / Off integrated command.
  • 1 module
  • Color Grey
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only.
Products benefits
Installation
  • It can also be connected to a remote control and, if necessary, you can disable the built-in command with a 30 sec pressure
Usage
  • Directional light to facilitate reading in bed without disturbing other people who may be present in the room
Advantages
  • Luminous Flux 110 lumens (equivalent to 15W incandescent) - Duration 40.000 hours
Technical Characteristics
Lamp type LED not exchangeable
With light source Yes
Depth 375 mm
Suitable for number of light sources 1
Lamp holder None
Housing material Plastic
Housing colour Grey
Type of covering None
Material cover Plastic, opal
Suitable for surface mounting Yes
With built-in installation box No
Adjustable Yes
Voltage type AC
Nominal voltage (Min-Max) 230-250 V
Nominal current (Min-Max) 15-25 mA
Type of control gear LED operating device voltage-controlled
With control gear Yes
Exchangeable control gear No
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DMX No
Dimming DSI No
Dimming LineSwitch No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off (trailing edge) No
Dimming phase cut-on (leading edge) No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming RF No
Dimming Sine Wave Reduction No
Dimming Touch and Dim Yes
Dimming with push-button Yes
Dimming Zigbee No
Light distributor Diffuser lens/optic/panel
Light distribution Symmetric/asymmetric
Light outlet Direct
Protection class according to IEC 61140 None
degree of impact strength (IK) IK04
Suitable for lamp power (Min-Max) 1.5-3 W
Max. system power 3.3 W
Colour temperature (Min-Max) 4000-5500 K
Constant light output (CLO) No
Width 22.5 mm
Height/depth 45 mm
Length 375 mm
Built-in width 22.5 mm
Built-in height/depth 45 mm
Built-in length 45.5 mm
Type of wiring Ending
Conductor cross section 1.5 mm²
Connection type Screwed terminal
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication No
RAL-number 7035
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1-1.5 mm²
Cable nature for connection Flexible or rigid
Mounting method Flush-mounted
Contains Batteries and/or Accumulator No
Documentation
1 documents
Technical Sheet
IDP001736 | PDF (1.1 MB) | EN
1 documents
Catalog Commercial Page
CAT_MTXGO | PDF (24.9 MB) | EN
