Pre-connected USB connector
BT-JG4285P
|
8005543714522
Description

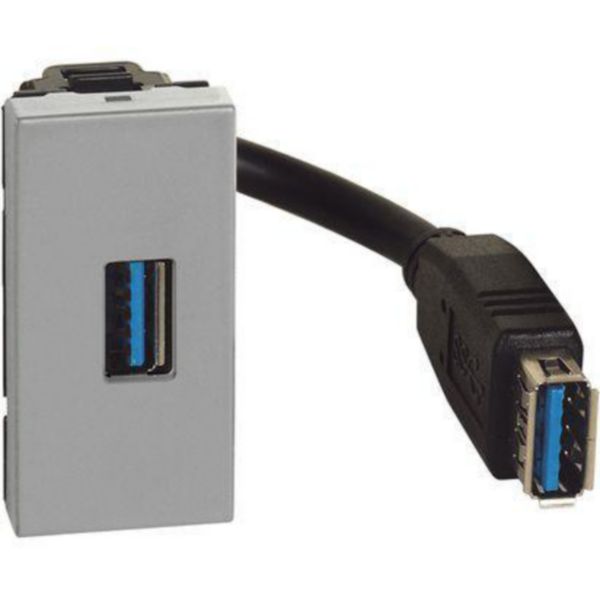

MatixGO pre-connected type A USB connector - 1 module, grey
Product characteristics
- Pre-connected type A USB connector
- Connector USB A
- 1 module
- Color Grey
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect devices with USB-A port
Advantages
- It is coordinated with the MatixGO aesthetic
Technical Characteristics
Assembly arrangement
Basic element with full cover plate
Utilization
USB
Support ring
No
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Contact type
Female
Imprintable label
Without indication field
With imprint
Yes
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7035
Transparent
No
Type of fastening
Engage (snap)
Number of modules (module system)
1
With buses/couplings
Yes
Suitable for number of connectors
1
Isolated connections
Yes
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Device width
22.5 mm
Device height
45 mm
Device depth
37 mm
Min. depth of built-in installation box
50 mm
Built-in depth
28.5 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
