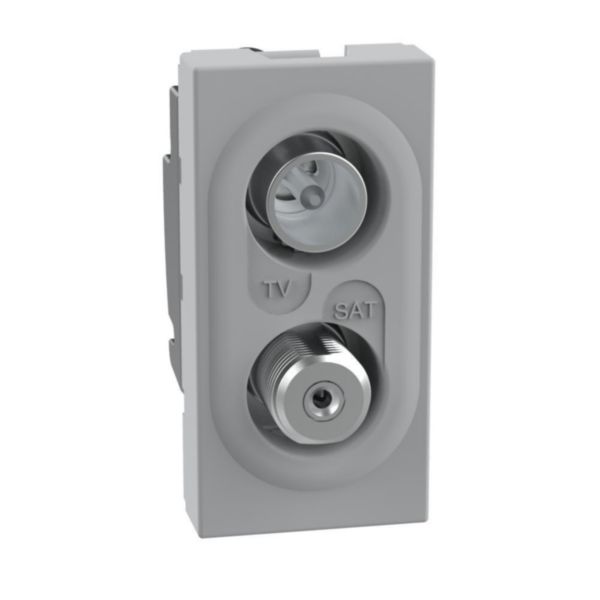

Star TV/sat demixed coaxial socket for single-user aerial systems
BT-JG4214D
|
8005543714447
Description
The TV coaxial socket direct demix allows you to connect all types of TV with a high-definition quality (UHD). It has been designed for TV or satellite installations - 1 module, grey
Product characteristics
- It limits the attenuation of the signal (attenuation less than 1 dB): reducing the need for amplification.
- Optimized cable tightness
- 1 module
- Color Grey
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- This connector is designed for intuitive insertion of the cable. The connection to the terminal board is quick and easy. Finally, a good vision on the connection allows you tobe sure if the cable is tightened.
Usage
- Optimized outlet for new UHD or 4K TVs: designed for optimal signal reception.
Advantages
- Certified Class A shield: protects against interference caused by new signals generated by mobile phones (3G, 4G, 5G), which can cause pixels, picture or sound disturbances
Technical Characteristics
Model
End socket
Type of socket outlet
TV/SAT
DAB+
No
Mounting method
Flush-mounted
Number of modules (module system)
1
Assembly arrangement
Basic element
Tap loss at 860 MHz
1.5 dB
Tap loss at 2150 MHz
2 dB
Number of outlets
2
Suitable for cable modem
No
TV frequency band (Min-Max)
50-60 MHz
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
Grey
RAL-number (similar)
7035
Surface protection
Lacquered
Surface finishing
Matt
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22.5 mm
Device height
45 mm
Device depth
36 mm
Min. depth of built-in installation box
38 mm
Built-in depth
28 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
