MatixGO BTicino

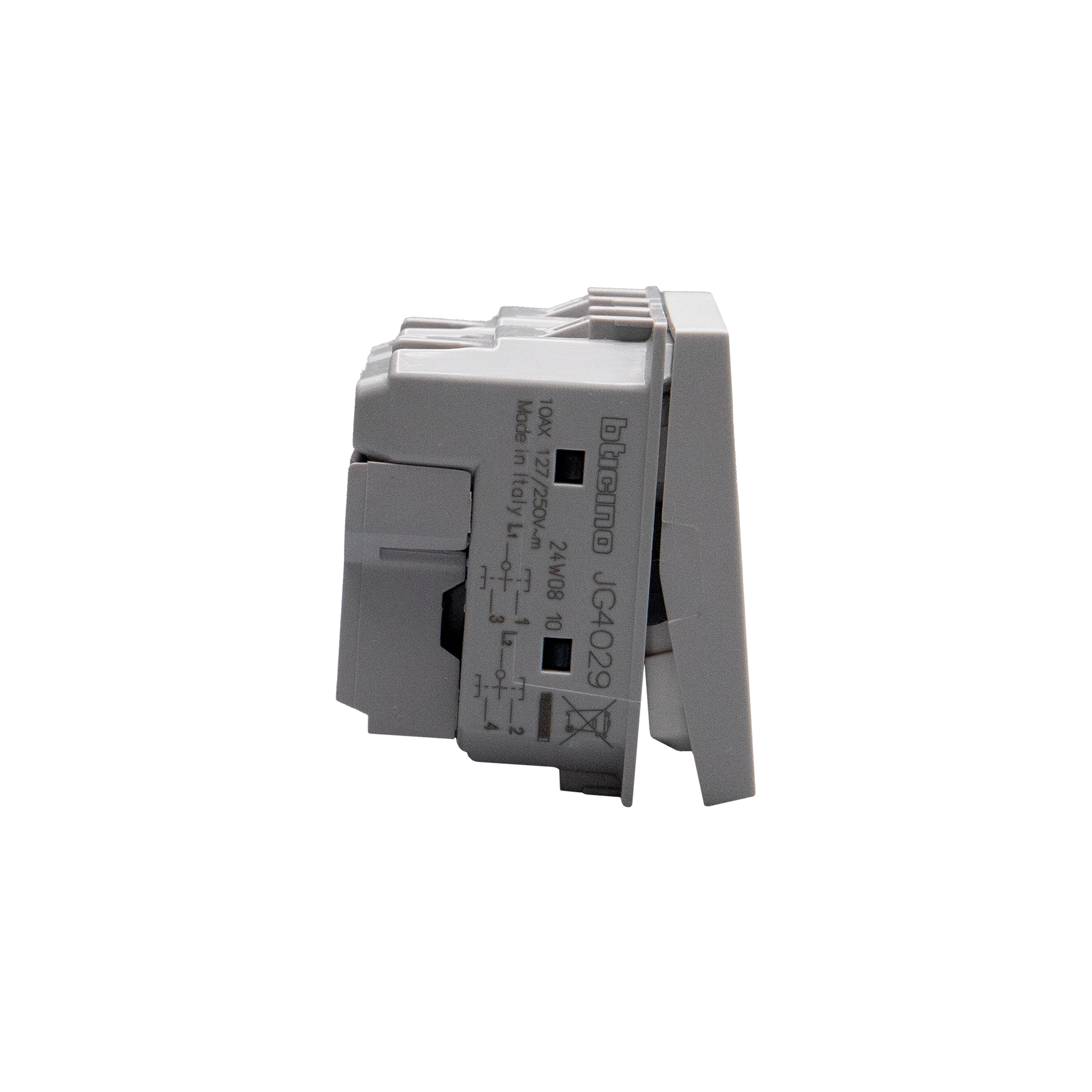

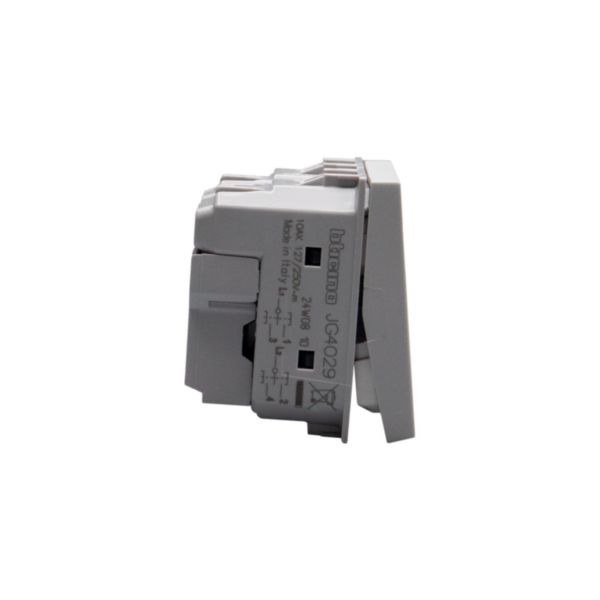

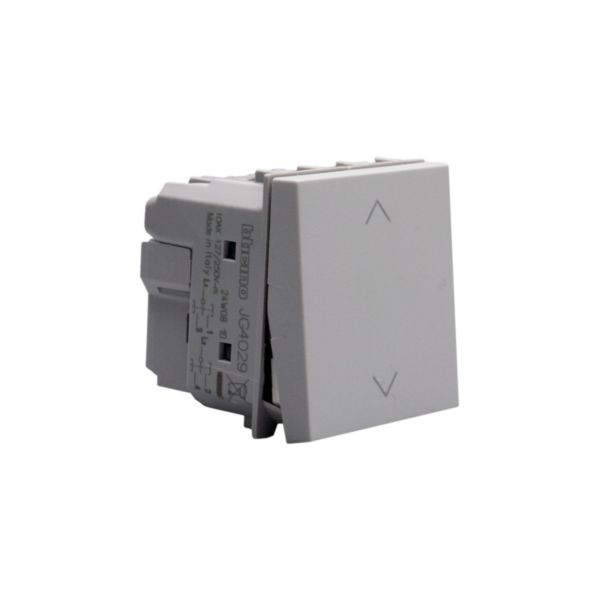

Changeover switch 2P 10 AX - 250 Va.c.

BT-JG4029 | 8005543733523
Changeover switch 2P 10 AX - 250 Va.c. - 1-0-2 - not lightable - 2 modules - Grey
Description

Changeover switch 2P 10 A - 250 Va.c. - 2 modules, grey

Product characteristics
  • Changeover switch not lightable
  • 2P 10 A - 250 Va.c.
  • 2 modules
  • Color Grey
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only.
Products benefits
Installation
  • Easy to install and remove
Usage

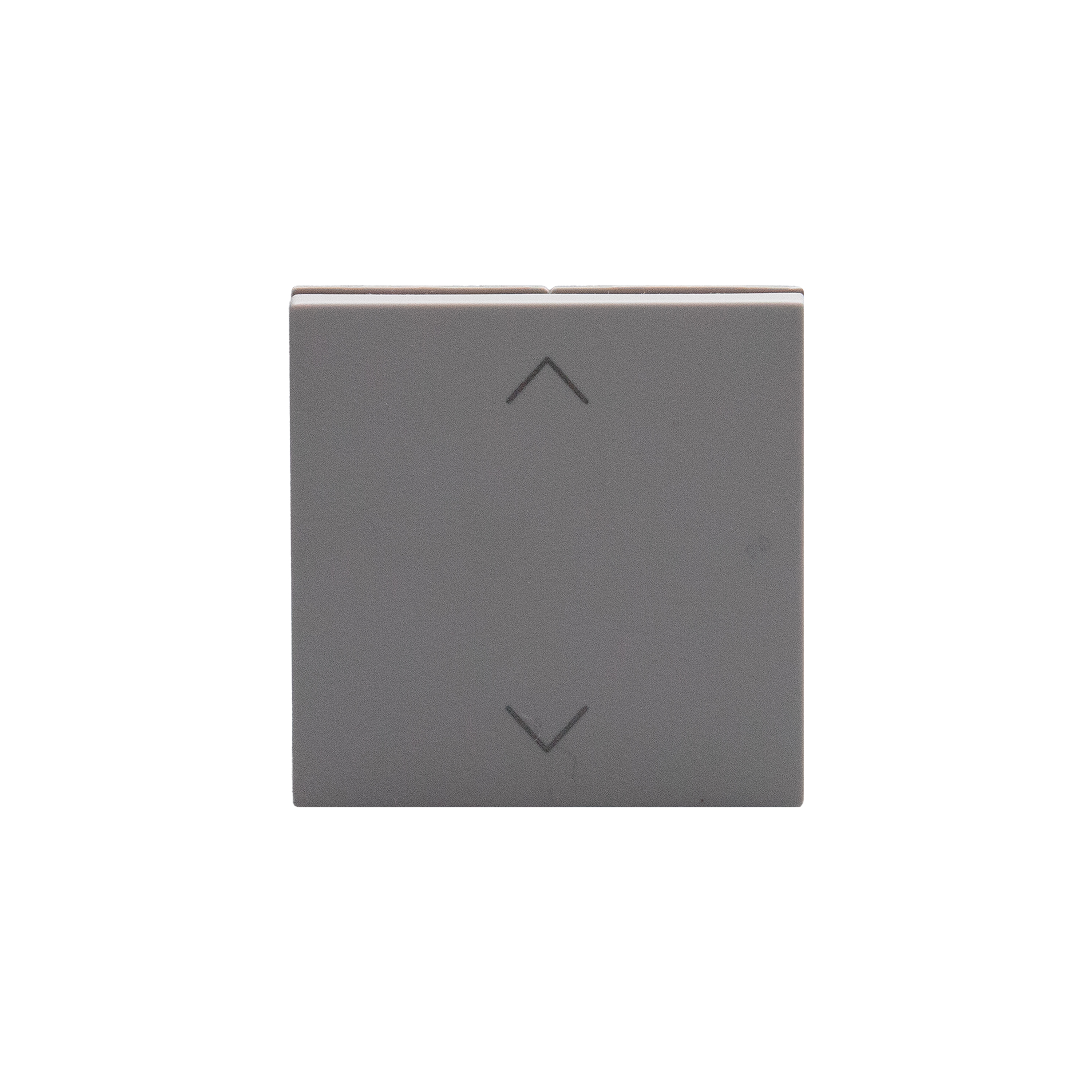

  • The device has three command modes: 1. upper side: the rolling shutter rises up to the end of stroke 2. lower side: the shutters go down to the end of the stroke 3. central protruding button: reset of the command; the shutter stops.
Advantages
  • High technical performance
Technical Characteristics
For venetian blinds Yes
For roller blinds Yes
For awnings No
Assembly arrangement Modular device for domestic switching devices
Model 2-pole push button
Number of poles 2
Method of operation Other
With electrical latch No
With mechanical latch No
Mechanical controllable Yes
Electronic controllable No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Type of fastening Engage (snap)

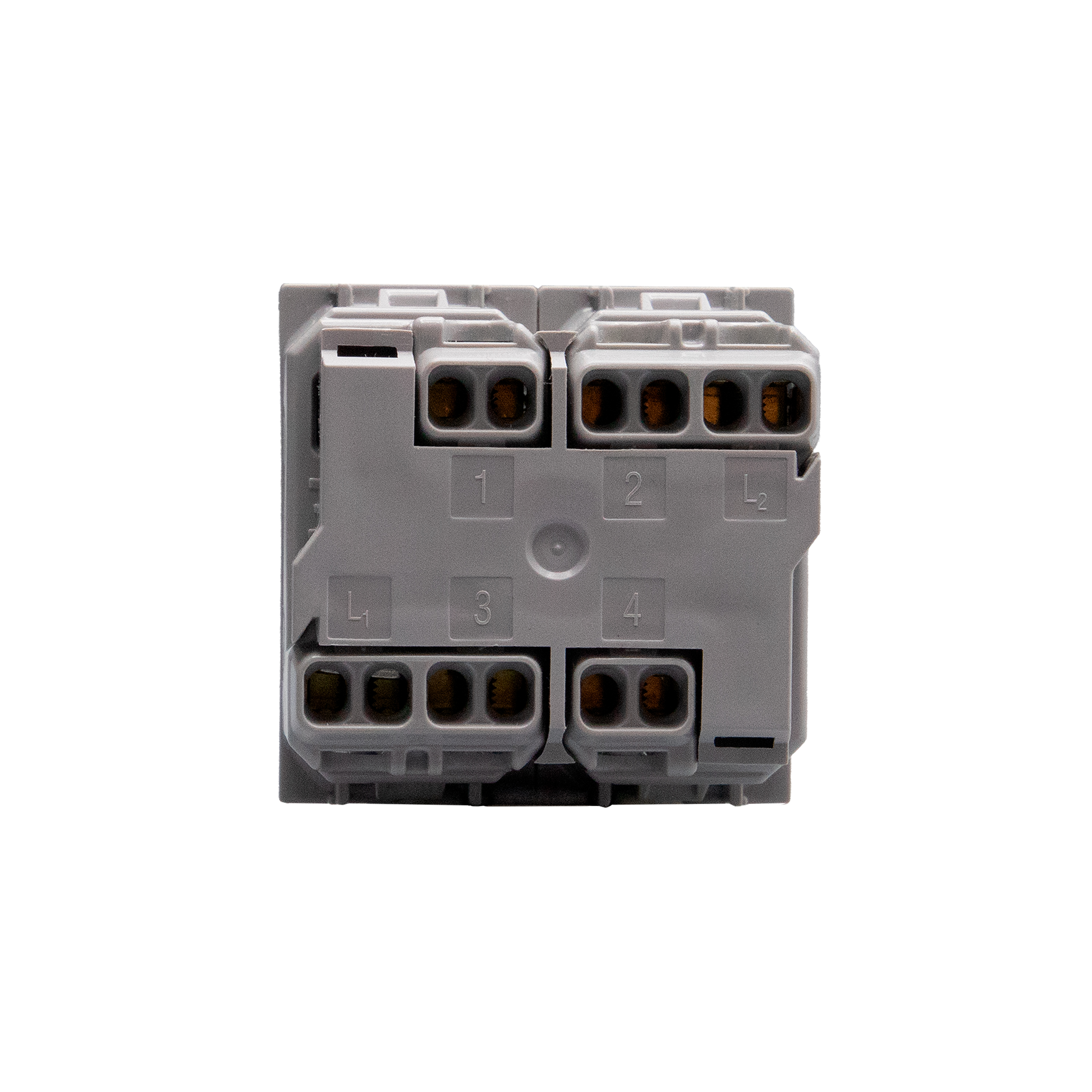

Connection type Screwed terminal
Colour Grey
RAL-number (similar) 7035
Transparent Yes
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 2
Device width 45 mm
Device height 45 mm
Device depth 36.5 mm
Built-in depth 28.5 mm
Min. depth of built-in installation box 38.5 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Type of lighting Not included
Terminal marking indication No
Antimicrobial treatment No
Number of terminals 2
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Contains Batteries and/or Accumulator No
