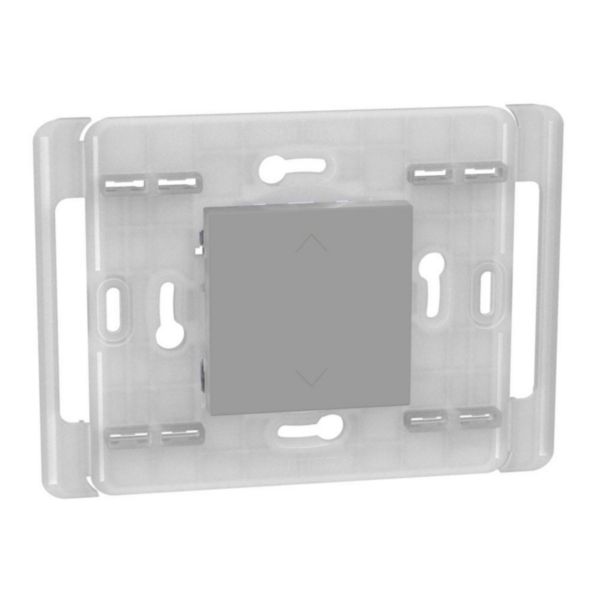

Rolling shutter wireless switch No-Battery
BT-JG4027CWG
|
8005543762943
Description
The roller shutter battery less/wireless switch allows you to control your roller shutters remotely via the Home + Control app or by using your voice, and to centralize control of several roller shutters without pulling more wires through
Product characteristics
- Up/down/stop function
- Stand alone product. Without battery, without electrical supply
- 1 module
- Color Grey
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- To pair your roller shutter battery less/wireless switch, you first need to purchase and install a MatixGO with Netatmo connected starter pack, as well as one or more MatixGO with Netatmo connected roller shutter switches.
Products benefits
Installation
- Extra-slim, the roller shutter battery less/wireless switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box
Usage
- Pair as many connected roller shutter switches as you wish and control them all with a single press on your battery less/wireless switch
Advantages
- When associated to the connected starter pack, the MatixGO with Netatmo products can be controlled manually or remotely from your smartphone or via voice control.
- When installed on the wall, the battery less/wireless remote switch has the same aesthetic and thickness as all the MatixGO with Netatmo switches.
- Easy and quick association by tapping the products together.
Technical Characteristics
Radio frequency
2400 MHz
Rolling code system
No
Code length (Bit)
128
Range
185 m
Number of commands
2
With manual radio transmitter
Yes
Flush-mounted radio transmitter
No
Surface mounted radio transmitter
Yes
With radio coding device
Yes
Degree of protection (IP)
IP40
Keyboard protection cover
No
Current supply
Other
Width
22.5 mm
Height
45 mm
Depth
44 mm
Built-in depth
36 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
0 mA
Mandatory neutral
No
Stress test conformity (1000V)
No
Colour
Grey
RAL-number
7035
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Surface mounted
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR2032
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
1
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
3 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Operating method
Zigbee
Application store for download
Google Play Store, App Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Shutter management
